Steering Column Assembly: Disassembly

NOTE: When using a vise, do not overtighten it.
  1. REMOVE STEERING COLUMN UPPER WITH SWITCH BRACKET ASSEMBLY
    1. Secure the steering column assembly in a vise.
    2. Using a center punch, mark the center of the tapered-head bolt.
    3. Using a 3 to 4 mm (0.12 to 0.16 in.) diameter drill bit, drill a hole in the tapered-head bolt.
    4. Using a screw extractor, remove the tapered-head bolt, and then remove the steering column upper with switch bracket assembly from the steering column assembly.
      Fig 1: Removing Tapered-Head Bolt
      G05389781Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE IGNITION OR STARTER SWITCH ASSEMBLY
    1. Remove the solenoid wire connector from the ignition or starter switch assembly.
      Fig 2: Identifying Ignition And Starter Switch Assembly
      G05389782Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 screws and the ignition or starter switch assembly from the steering column upper bracket.
      Fig 3: Identifying Steering Column Upper Bracket And Screw
      G05389783Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE KEY INTER LOCK SOLENOID (for Automatic Transaxle)
    1. Remove the 2 screws and the key inter lock solenoid from the steering column upper bracket.
      Fig 4: Identifying Steering Column Upper Bracket And Screw
      G05389784Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the solenoid wire connector from the key inter lock solenoid.
      Fig 5: Disconnecting Solenoid Wire Connector And Key Inter Lock Solenoid
      G05389785Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE SOLENOID WIRE (for Automatic Transaxle)
    1. Remove the solenoid wire from the steering column upper bracket.
    Fig 6: Identifying Upper Bracket of Steering Column
    G05389786Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE IGNITION SWITCH LOCK CYLINDER ASSEMBLY
    1. Turn the ignition switch lock cylinder assembly to the ACC position.
    2. Insert a screwdriver into the hole of the steering column upper with switch bracket assembly as shown in the illustration. Pull the ignition switch lock cylinder assembly until its claw contacts the stopper of the steering column upper with switch bracket assembly.
      NOTE: Make sure to pull the ignition switch lock cylinder assembly until its claw contacts the stopper of the steering column bracket assembly upper. Failure to do so will affect later work operations.

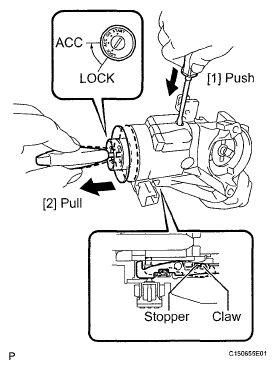

      Fig 7: Pulling Ignition Switch Lock Cylinder Assembly
      G05389787Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Insert a screwdriver into the hole of the steering column upper with switch bracket assembly. Push the screwdriver downward as shown in the illustration to disengage the claw of the ignition switch lock cylinder assembly, and pull out the ignition switch lock cylinder assembly.

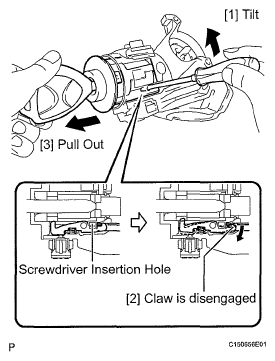

      Fig 8: Pulling Ignition Switch Lock Cylinder Assembly
      G05389788Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE UNLOCK WARNING SWITCH ASSEMBLY
    1. Remove the unlock warning switch assembly by pushing up the center part and releasing the 2 claws.

      HINT:

      Slide the unlock warning switch in the direction shown by the arrow in the illustration to remove it.

    Fig 9: Removing Unlock Warning Switch Assembly
    G05389789Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
