Operation Check

1. Check that the passenger side power window and rear windows cannot be operated when the window lock switch of the power window regulator master switch is pressed.

   OK: Passenger side power window and rear window operation is disabled.

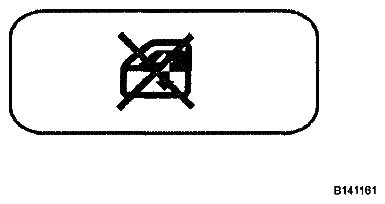

   Fig 1: Identifying Window Lock Switch

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Check that the passenger side power window and rear windows can be operated when the window lock switch is pressed again.

   OK: Passenger side power window and rear windows can be operated.

1. Check that the driver side power window operates as follows:

   OK

   MANUAL UP/DOWN FUNCTION



   Condition	Master Switch	Switch Operation	Power Window
   Ignition switch ON	Driver side	Pulled up	UP (Closes)
   		Pushed halfway down	DOWN (Opens)

2. Check that the passenger side power window operates as follows:

   OK

   PASSENGER SIDE POWER WINDOW DESCRIPTION



   Condition	Regulator Switch	Switch Operation	Power Window
   Ignition switch ON Window lock switch OFF	Passenger side	Pulled up	UP (Closes)
   		Pushed down	DOWN (Opens)

3. Check that the rear LH power window operates as follows:

   OK

   REAR LH POWER WINDOW DESCRIPTION



   Condition	Regulator Switch	Switch Operation	Power Window
   Ignition switch ON Window lock switch OFF	Rear LH	Pulled up	UP (Closes)
   		Pushed down	DOWN (Opens)

4. Check that the rear RH power window operates as follows:

   OK

   REAR RH POWER WINDOW DESCRIPTION



   Condition	Regulator Switch	Switch Operation	Power Window
   Ignition switch ON Window lock switch OFF	Rear RH	Pulled up	UP (Closes)
   		Pushed down	DOWN (Opens)

1. Check that the driver side power window operates as follows:

   OK

   DRIVER SIDE POWER WINDOW DESCRIPTION



   Condition	Master Switch	Switch Operation	Power Window
   Ignition switch ON	Driver side	Fully pushed down	AUTO DOWN (Fully opens)

1. Check that the passenger side power window operates as follows:

   OK

   PASSENGER SIDE POWER WINDOW DESCRIPTION



   Condition	Master Switch	Switch Operation	Power Window
   Ignition switch ON Window lock switch OFF	Passenger side	Pulled up	UP (Closes)
   		Pushed down	DOWN (Opens)

2. Check that the rear LH power window operates as follows:

   OK

   REAR LH POWER WINDOW DESCRIPTION



   Condition	Master Switch	Switch Operation	Power Window
   Ignition switch ON Window lock switch OFF	Rear LH	Pulled up	UP (Closes)
   		Pushed down	DOWN (Opens)

3. Check that the rear RH power window operates as follows:

   OK

   REAR RH POWER WINDOW DESCRIPTION



   Condition	Master Switch	Switch Operation	Power Window
   Ignition switch ON Window lock switch OFF	Rear RH	Pulled up	UP (Closes)
   		Pushed down	DOWN (Opens)

1. Check that all the power windows can be operated with the power window regulator master switch after the ignition switch has been turned OFF.
2. Check that the key-off operation function does not operate after the driver, passenger or rear side door is closed and opened.
3. Check that the driver door power window cannot be operated after more than approximately 43 seconds have elapsed since the ignition switch was turned OFF.

HINT:

PTC operation is a function that prevents overloading of the power window regulator by stopping the motor. PTC operation activates when the power window regulator switch is operated for a predetermined amount of time.

1. Pull up and hold the power window regulator switch for more than 90 seconds. Then release the switch.
2. Check that pressing the switch does not move the window.
3. Wait until 60 seconds have passed since the switch was released in the first step. Check that pressing the switch results in normal window movement.
