Repair and Diagnosis
>>
Engine Performance
>>
2ZR-FE Engine Control System
>>
SFI System
>>
VC Output Circuit
>>
Wiring Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
VC Output Circuit: Wiring Diagram

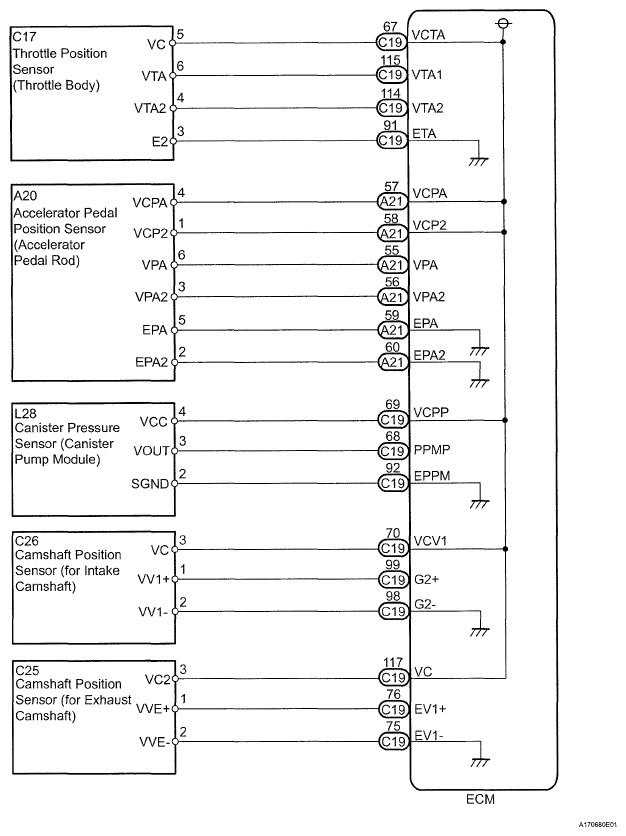

Fig 1: VC Output Circuit - Wiring Diagram
