Air Fuel Ratio Sensor: Components

Fig 1: ECM Replacement Components With Torque Specifications (1 Of 2)
G05398742Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

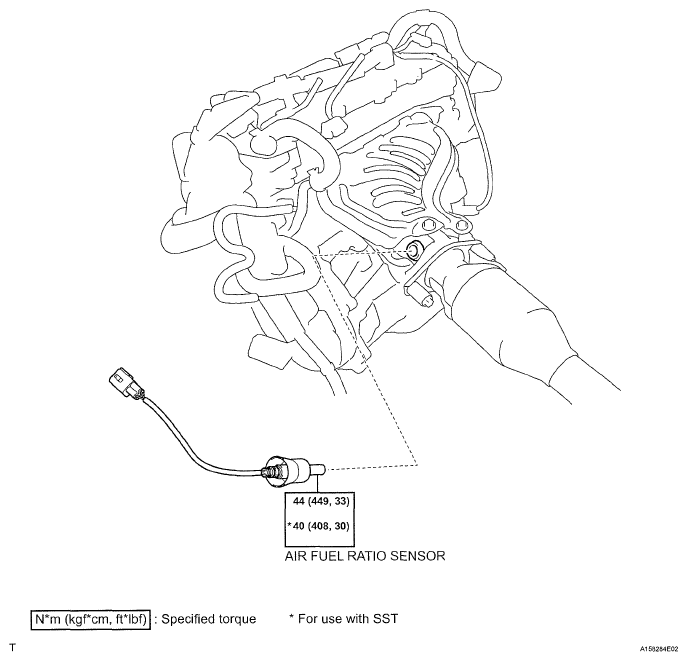

Fig 2: Air Fuel Ratio Sensor Replacement Components With Torque Specifications (2 Of 2)
G05398799Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
