Inspection Procedure

1. Check that the power window AUTO UP/DOWN function operates normally.

OK: REPLACE POWER WINDOW REGULATOR SWITCH ASSEMBLY (PASSENGER SIDE)

NG: Go to next step

1. Disconnect the FR DOOR fuse from the instrument panel junction block.
2. Measure the resistance of the fuse.

   Standard resistance:

   Below 1 Ω

NG: REPLACE FUSE

OK: Go to next step

1. Disconnect the P12 regulator switch connector.
2. Measure the voltage and resistance of the wire harness side connector.

   Standard voltage

   VOLTAGE SPECIFICATION



   Tester Connection	Specified Condition
   P12-12 (B) - Body ground	11 to 14 V

   Standard resistance

   RESISTANCE SPECIFICATION



   Tester Connection	Specified Condition
   P12-7 (GND) - Body ground	Below 1 Ω

NG: REPAIR OR REPLACE HARNESS AND CONNECTOR

Fig 1: Identifying P12 Regulator Switch Connector Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

OK: Go to next step

1. Remove the regulator switch but do not disconnect the connector.
2. Turn the ignition switch ON.
3. Measure the voltage of the connector.

   Standard voltage

   VOLTAGE SPECIFICATION



   Tester Connection	Condition	Specified Condition
   P12-11 (PCT) - P11-7 (GND)	Window LOCK switch OFF (Normal)	11 to 14 V
   P12-11 (PCT) - P11-7 (GND)	Window LOCK switch ON (Lock)	Below 1 V

   Fig 2: Identifying P12 Power Window Regulator Switch Connector Terminals

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

OK:  Go to step  6

NG: Go to next step

1. Disconnect the P12 regulator switch connector.
2. Disconnect the P9 master switch connector.
3. Measure the resistance of the wire harness side connectors.

   Standard resistance

   RESISTANCE SPECIFICATION



   Tester Connection	Specified Condition
   P12-11 (PCT) - P9-6 (PCT)	Below 1 Ω
   P12-11 (PCT) - Body ground	10 kΩ or higher

NG: REPAIR OR REPLACE HARNESS AND CONNECTOR

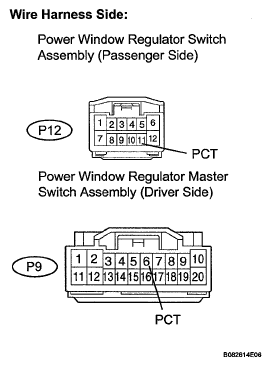

Fig 3: Identifying P12 Regulator Switch And P9 Master Switch Connector Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

OK: REPLACE POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY

1. Disconnect the P12 regulator switch connector.
2. Disconnect the P11 power window motor connector.
3. Measure the resistance of the wire harness side connectors.

   Standard resistance

   RESISTANCE SPECIFICATION



   Tester Connection	Specified Condition
   P12-1 (D) - P11-1 (D)	Below 1 Ω
   P12-6 (U) - P11-2 (U)	Below 1 Ω
   P12-1 (D) - Body ground	10 kΩ or higher
   P12-6 (U) - Body ground	10 kΩ or higher

NG: REPAIR OR REPLACE HARNESS AND CONNECTOR

Fig 4: Identifying P12 Regulator Switch And P11 Power Window Motor Connector Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

OK: Go to next step

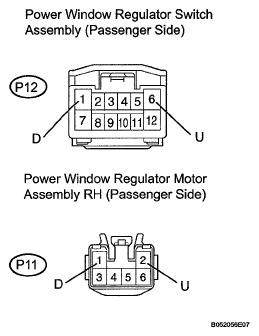

Fig 5: Identifying Power Window Regulator Switch Connector Terminals (Passenger Side)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Remove the regulator switch but do not disconnect the connector.
2. Turn the ignition switch ON.
3. Measure the voltage of the connector.

   Standard voltage

   VOLTAGE SPECIFICATION



   Tester Connection	Condition	Specified Condition
   P12-6 (U) - P12-7 (GND)	UP	11 to 14 V
   P12-1 (D) - P12-7 (GND)	DOWN	11 to 14 V

NG: REPLACE POWER WINDOW REGULATOR SWITCH ASSEMBLY (PASSENGER SIDE)

OK: REPLACE POWER WINDOW REGULATOR MOTOR ASSEMBLY RH (PASSENGER SIDE)
