Parts Location

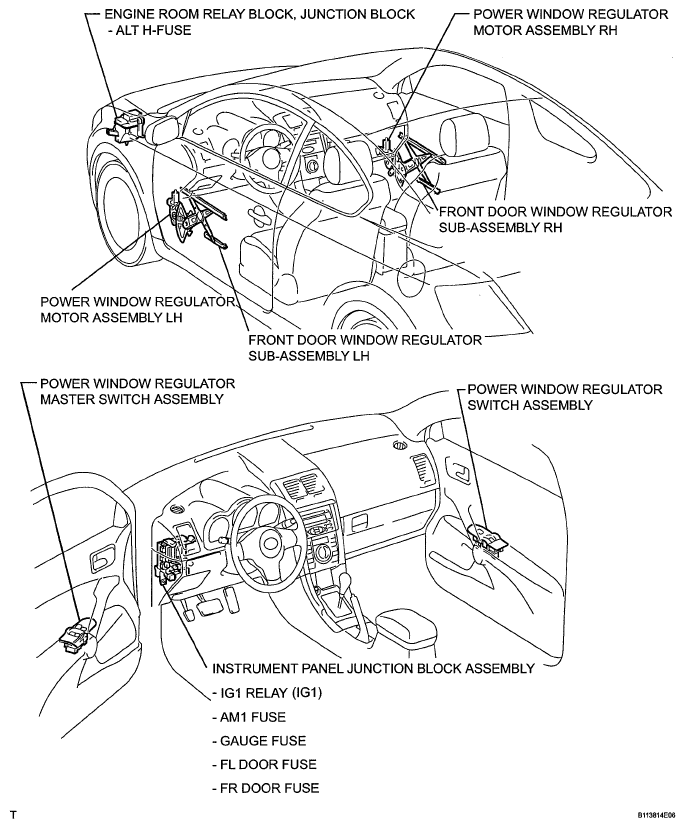

Fig 1: Identifying Power Window Control System Parts Location (W/ Jam Protection Function)
G05541723Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
