Accelerator Pedal: Installation

  1. INSTALL ACCELERATOR PEDAL
    1. Install the accelerator pedal with the 2 bolts.

      Torque: 5.4 N*m (55 kgf*cm, 48 in.*lbf)

    2. Connect the accelerator pedal position sensor connector.
  2. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

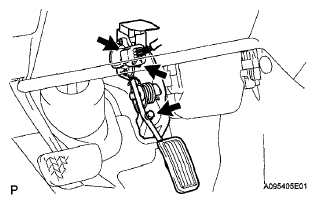

    Fig 1: Locating Bolts And Accelerator Pedal
    G06276517Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. PERFORM INITIALIZATION
    1. Perform initialization (see INITIALIZATION ).
      NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
