Camshaft Position Sensor: Components

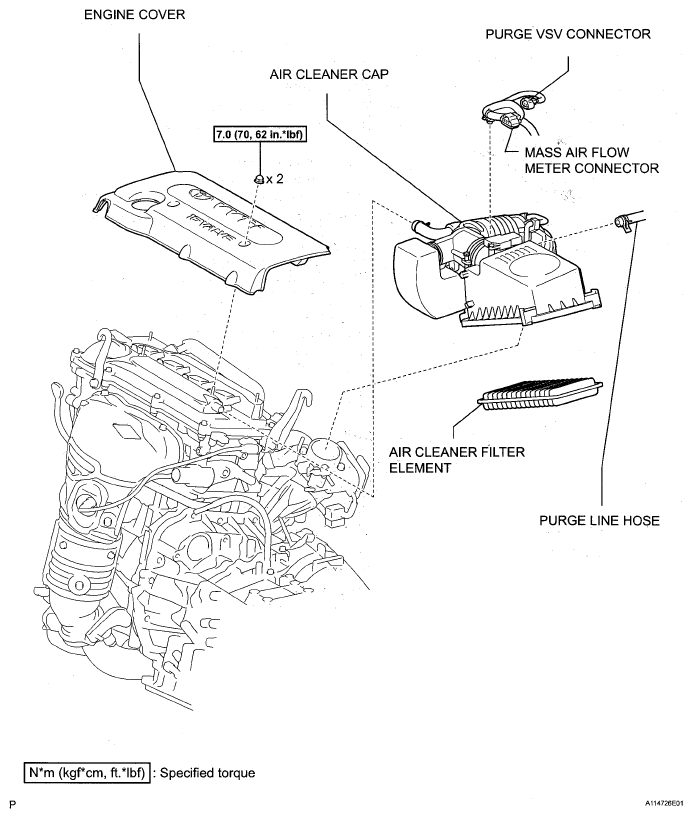

Fig 1: Identifying Camshaft Position Sensor Replacement Components And Torque Specifications (1 Of 2)
G05539228Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

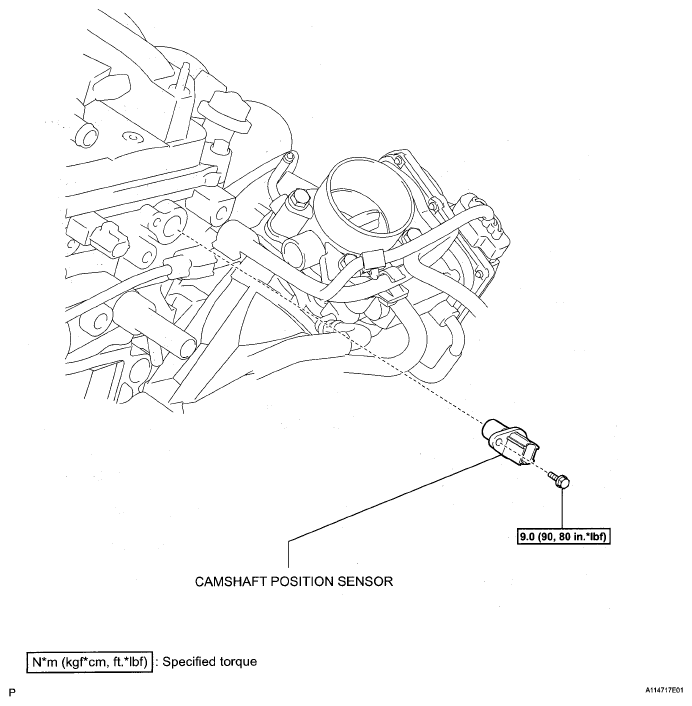

Fig 2: Identifying Camshaft Position Sensor Replacement Components And Torque Specifications (2 Of 2)
G05539229Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
