Camshaft Position Sensor: Installation

INSTALL CAMSHAFT POSITION SENSOR
NOTE: Make sure that the O-ring is not cracked or jammed when installing.
1. Apply a light coat of engine oil to the O-ring of the sensor.

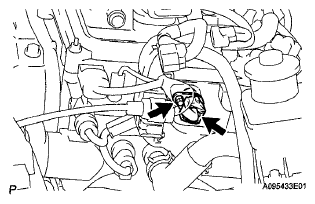

  Fig 1: Identifying O-Ring
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the sensor with the bolt.
  Torque: 9.0 N*m (90 kgf*cm, 80 in.*lbf)
3. Connect the sensor connector.
INSTALL AIR CLEANER CAP (See INSTALLATION )
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
CHECK FOR ENGINE OIL LEAKAGE

Fig 2: Locating Sensor And Bolt
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL ENGINE COVER (See INSTALLATION )
PERFORM INITIALIZATION
1. Perform initialization (see INITIALIZATION ).
  NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
