On-Vehicle Inspection
- DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

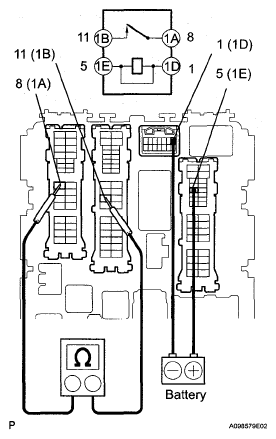

- INSPECT CIRCUIT OPENING RELAY
- Measure the resistance between the terminals.
Standard resistance
TESTER CONNECTION SPECIFIED CONDITION CHARTTester Connection Specified Condition 1B (11) - 1A (8) 10 kΩ or higher 1B (11) - 1A (8) Below 1 Ω (when battery voltage is applied to terminals 1E (5) and 1D (1)) If the result is not as specified, replace the instrument panel junction block.
- Measure the resistance between the terminals.
- CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
- PERFORM INITIALIZATION
- Perform initialization (see INITIALIZATION
).NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery
- Perform initialization (see INITIALIZATION
).
