Vehicle Identification And Serial Numbers

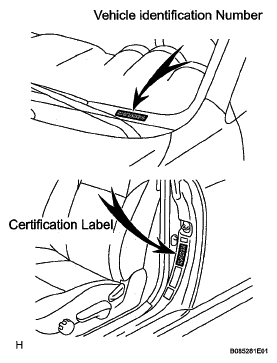

VEHICLE IDENTIFICATION NUMBER
1. The vehicle identification number is stamped on the vehicle body and on the certification label, as shown in the illustration.
  1. Vehicle Identification Number
  2. Certification Label

    Fig 1: Identifying Vehicle Identification Number
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

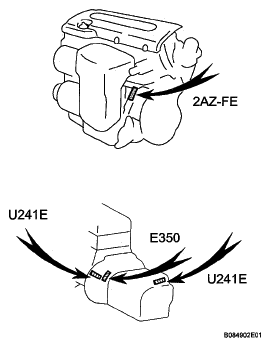

ENGINE SERIAL NUMBER AND TRANSAXLE SERIAL NUMBER
1. The engine serial number is stamped on the cylinder block of the engine and the transaxle serial number is stamped on the housing as shown in the illustration.
  1. Engine Serial Number
  2. Transaxle Serial Number

    Fig 2: Identifying Engine Serial Number And Transaxle Serial Number
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
