Power Windows do not Operate at All: Wiring Diagram

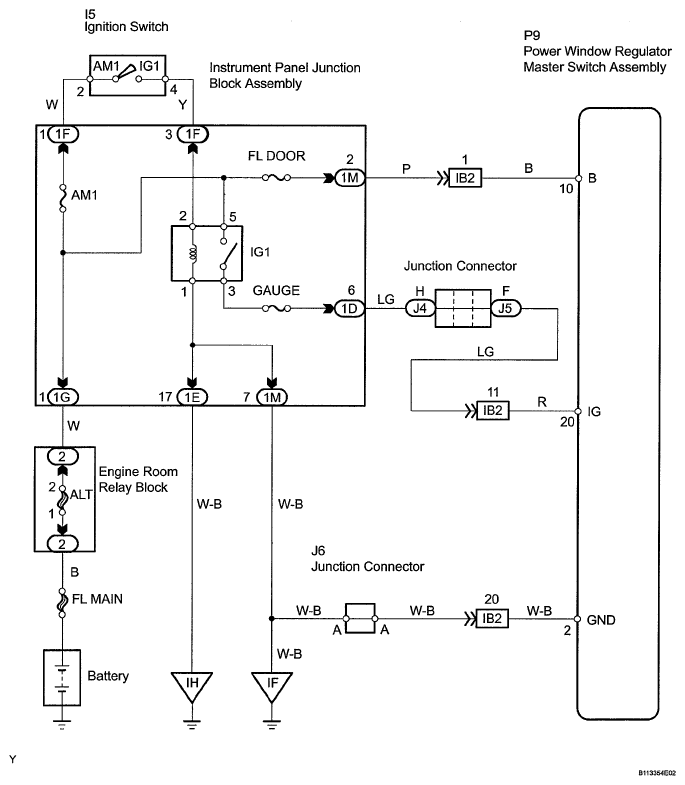

Fig 1: Power Windows - Wiring Diagram
G05541750Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
