Camshaft Timing Oil Control Valve Assembly: Inspection

INSPECT CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY

Measure the resistance of the oil control valve.

Standard resistance

TESTER CONNECTION SPECIFIED CONDITION CHART

Tester Connection	Specified Condition
1 (+B) - 2 (GND)	6.9 to 7.9 Ω at 20°C (68°F)

If the result is not as specified, replace the oil control valve assembly.

Fig 1: Inspecting Camshaft Timing Oil Control Valve Assembly

G05183802

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Check the operation.
1. Apply battery voltage across the terminals and check that the spool valve operates.
  NOTE: Check that the spool valve is not stuck.

  HINT:

  The spool valve may not return if foreign objects are caught in it. This may cause subtle pressure leaks to the advance side, and a DTC may be set.

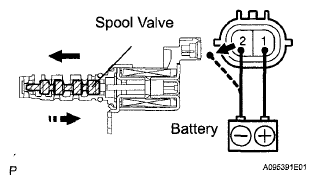

  Fig 2: Inspecting Camshaft Timing Oil Control Valve Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
