Power Window Master Switch: Inspection
- INSPECT POWER WINDOW MASTER SWITCH

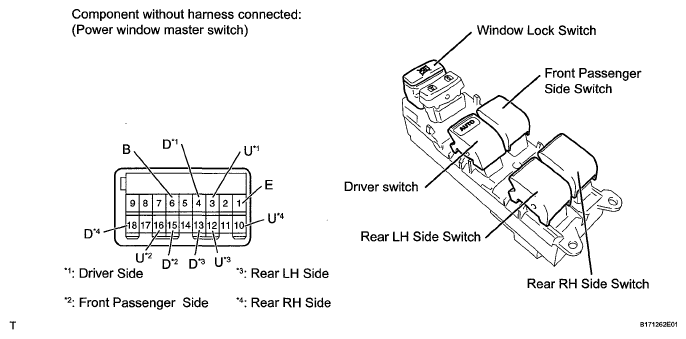

- Check the resistance.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
- Measure the resistance according to the value(s) in the table below.
Standard resistance:
Driver switch
TESTER CONNECTION SPECIFIED CONDITION CHARTTester Connection Window Lock Switch Condition Power Window Switch Condition Specified Condition 3 (U) - 6 (B)
1 (E) - 4 (D)Always (ON/OFF) UP Below 1 Ω 1 (E) - 3 (U)
1 (E) - 4 (D)Always (ON/OFF) OFF Below 1 Ω 4 (D) - 6 (B)
1 (E) - 3 (U)Always (ON/OFF) DOWN MANUAL Below 1 Ω 1 (E) - 3 (U)
4 (D) - 6 (B)Always (ON/OFF) DOWN AUTO Below 1 Ω If the result is not as specified, replace the power window master switch.
Standard resistance:
Front passenger side switch
TESTER CONNECTION SPECIFIED CONDITION CHARTTester Connection Window Lock Switch Condition Power Window Switch Condition Specified Condition 6 (B) - 16 (U)
1 (E) - 15 (D)OFF UP Below 1 Ω 1 (E) - 16 (U)
1 (E) - 15 (D)OFF OFF Below 1 Ω 6 (B) - 15 (D)
1 (E) - 16 (U)OFF DOWN Below 1 Ω 6 (B) - 16 (U) ON UP Below 1 Ω 1 (E) - 15 (D) ON UP 10 kΩ or higher 15 (D) - 16 (U) ON OFF Below 1 Ω 6 (B) - 15 (D) ON DOWN Below 1 Ω 1 (E) - 15 (D) ON DOWN 10 kΩ or higher If the result is not as specified, replace the power window master switch.
Standard resistance:
Rear LH side switch
TESTER CONNECTION SPECIFIED CONDITION CHARTTester Connection Window Lock Switch Condition Power Window Switch Condition Specified Condition 6 (B) - 12 (U)
1 (E) - 13 (D)OFF UP Below 1 Ω 1 (E) - 12 (U)
1 (E) - 13 (D)OFF OFF Below 1 Ω 1 (B) - 13 (D)
1 (E) - 12 (U)OFF DOWN Below 1 Ω 6 (B) - 12 (U) ON UP Below 1 Ω 1 (E) - 13 (D) ON UP 10 kΩ or higher 12 (U) - 13 (D) ON OFF Below 1 Ω 6 (B) - 13 (D) ON DOWN Below 1 Ω 1 (E) - 12 (U) ON DOWN 10 kΩ or higher If the result is not as specified, replace the power window master switch.
Standard resistance:
Rear RH side switch
TESTER CONNECTION SPECIFIED CONDITION CHARTTester Connection Window Lock Switch Condition Power Window Switch Condition Specified Condition 6 (B) - 10 (U)
1 (E) - 18 (D)OFF UP Below 1 Ω 1 (E) - 10 (U)
1 (E) - 18 (D)OFF OFF Below 1 Ω 6 (B) - 18 (D)
1 (E) - 10 (U)OFF DOWN Below 1 Ω 6 (B) - 10 (U) ON UP Below 1 Ω 1 (E) - 18 (D) ON UP 10 kΩ or higher 10 (U) - 18 (D) ON OFF Below 1 Ω 6 (B) - 18 (D) ON DOWN Below 1 Ω 1 (E) - 10 (U) ON DOWN 10 kΩ or higher If the result is not as specified, replace the power window master switch.
- Measure the resistance according to the value(s) in the table below.
- Check the illumination operation.
- Apply battery voltage to the power window master switch and check that the illumination comes on.
OK
POWER WINDOW MASTER SWITCH REFERENCE CHARTMeasurement Condition Specified Condition Battery positive (+) → Terminal 6 (B)
Battery negative (-) → Terminal 1 (E)Illumination come on If the result is not as specified, replace the power window master switch.
- Apply battery voltage to the power window master switch and check that the illumination comes on.
- Check the resistance.
