Power Window Regulator Motor: Components

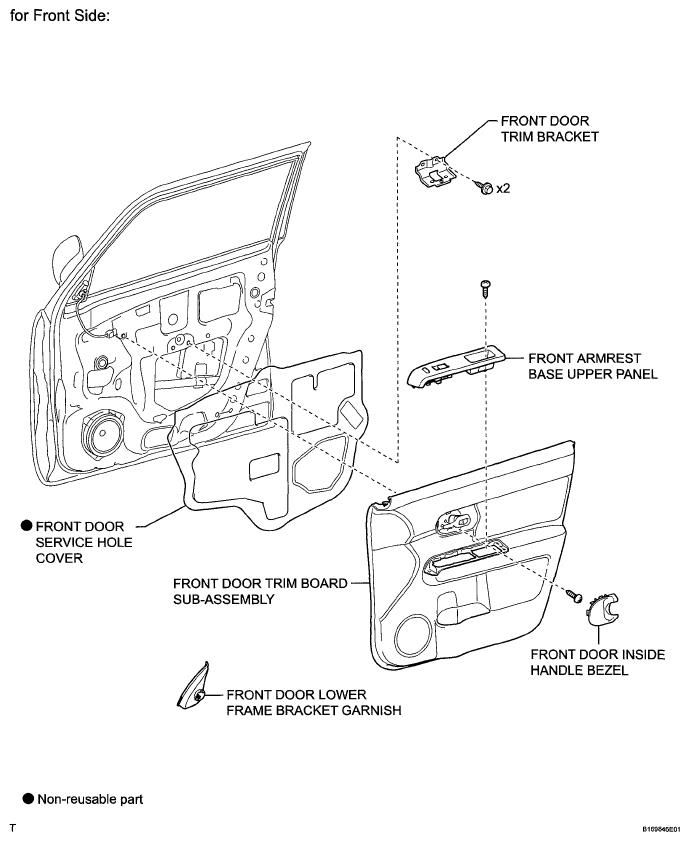

Fig 1: Identifying Power Window Regulator Motor Components (1 Of 4)
G05391269Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

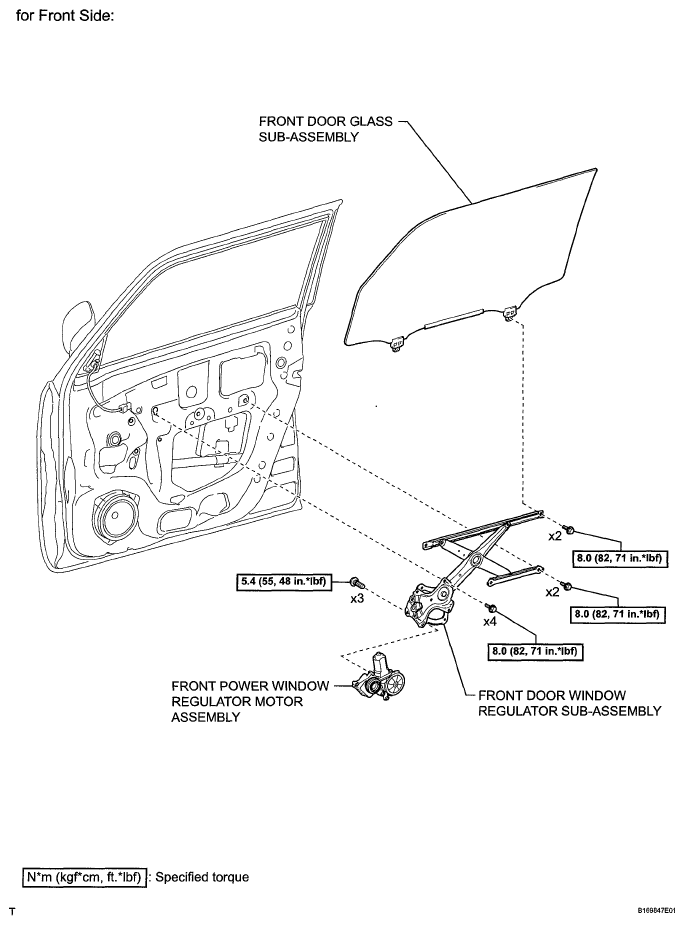

Fig 2: Power Window Regulator Motor Replacement Components With Torque Specifications (2 Of 4)
G05391270Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

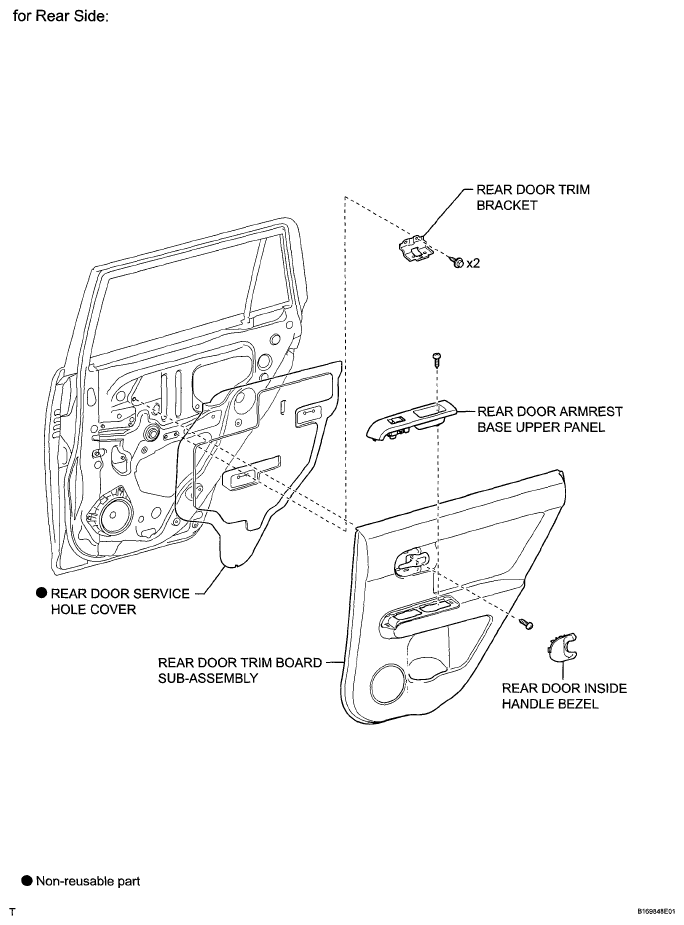

Fig 3: Power Window Regulator Motor Replacement Components With Torque Specifications (3 Of 4)
G05391271Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

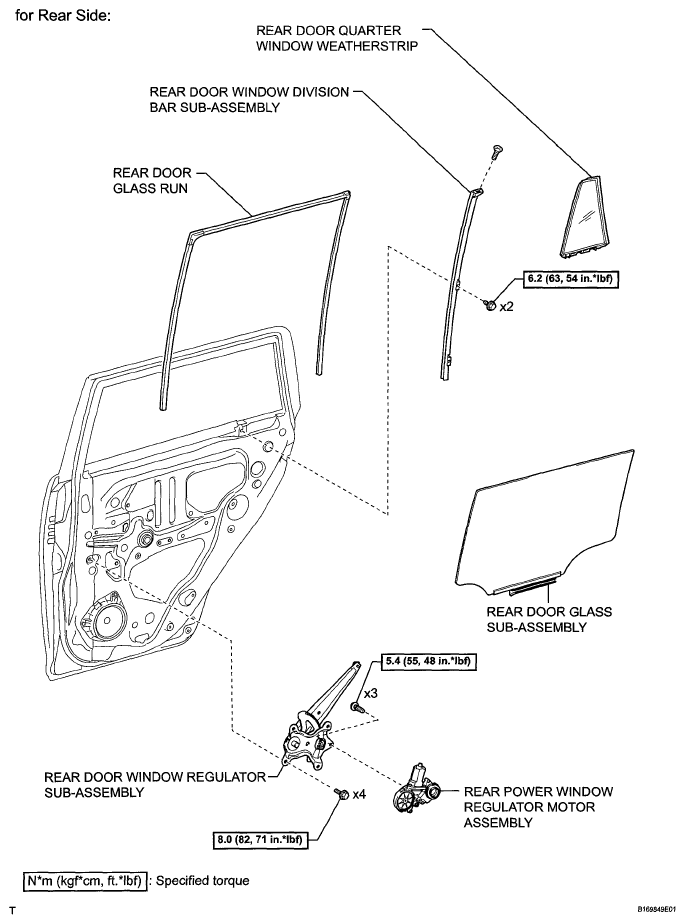

Fig 4: Power Window Regulator Motor Replacement Components With Torque Specifications (4 Of 4)
G05391272Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
