Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

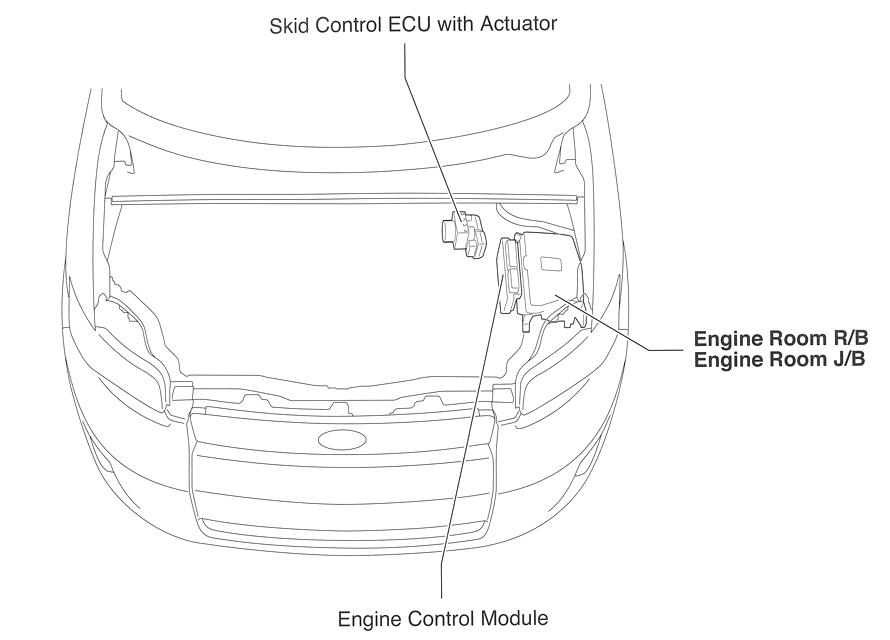

Fig 1: Engine Compartment

G00459125

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

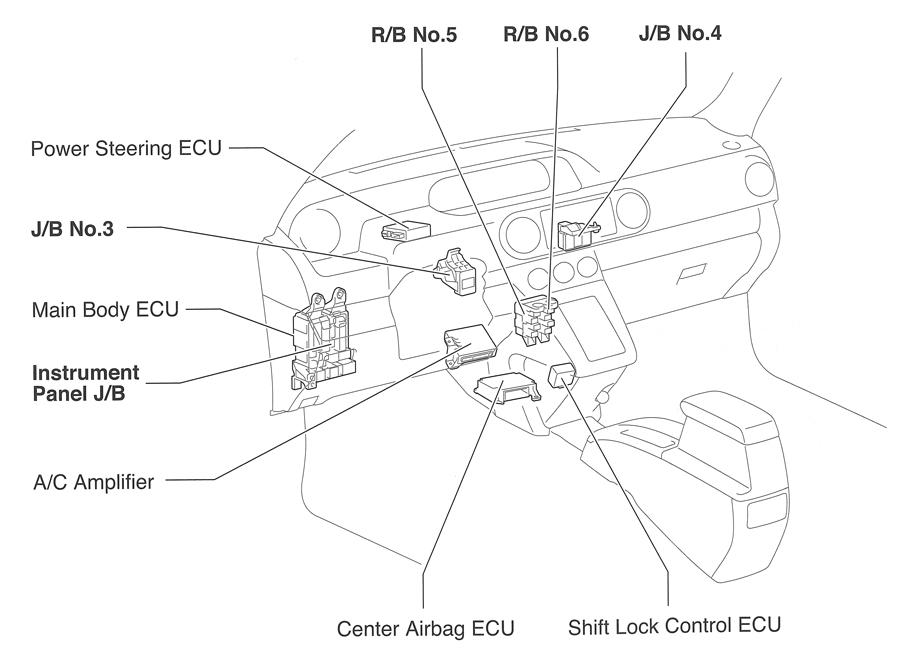

Fig 2: Dash

G00459126

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

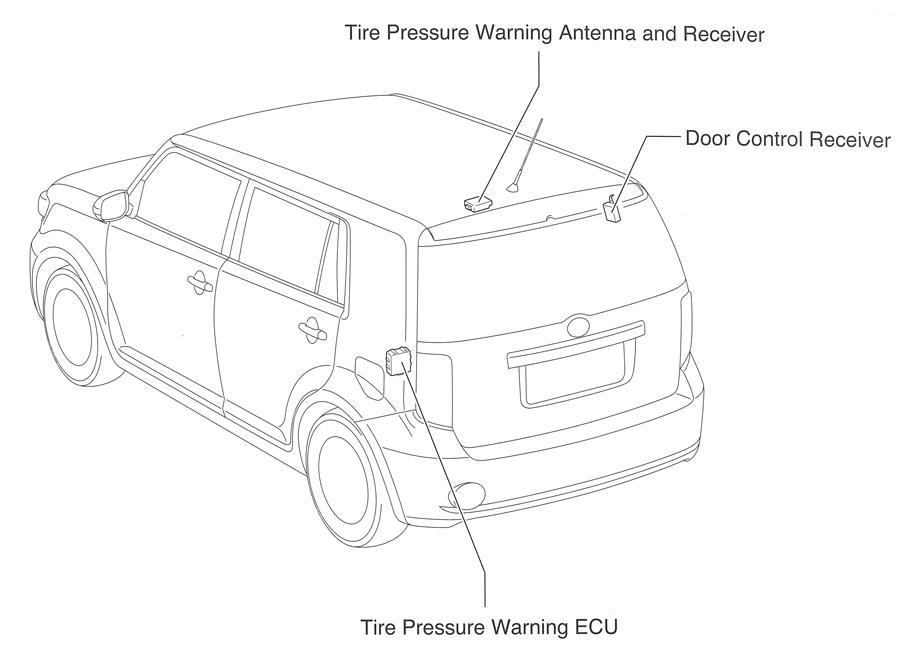

Fig 3: Vehicle Overview

G00459127

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

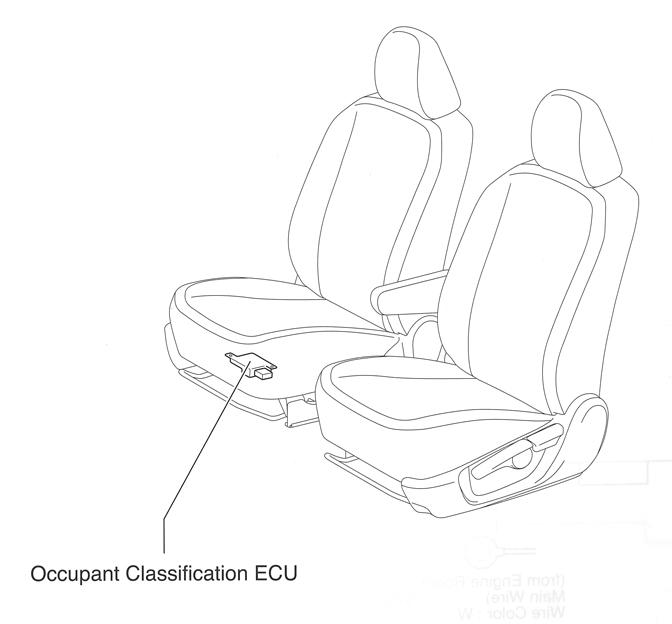

Fig 4: Front Seats

G00459128

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

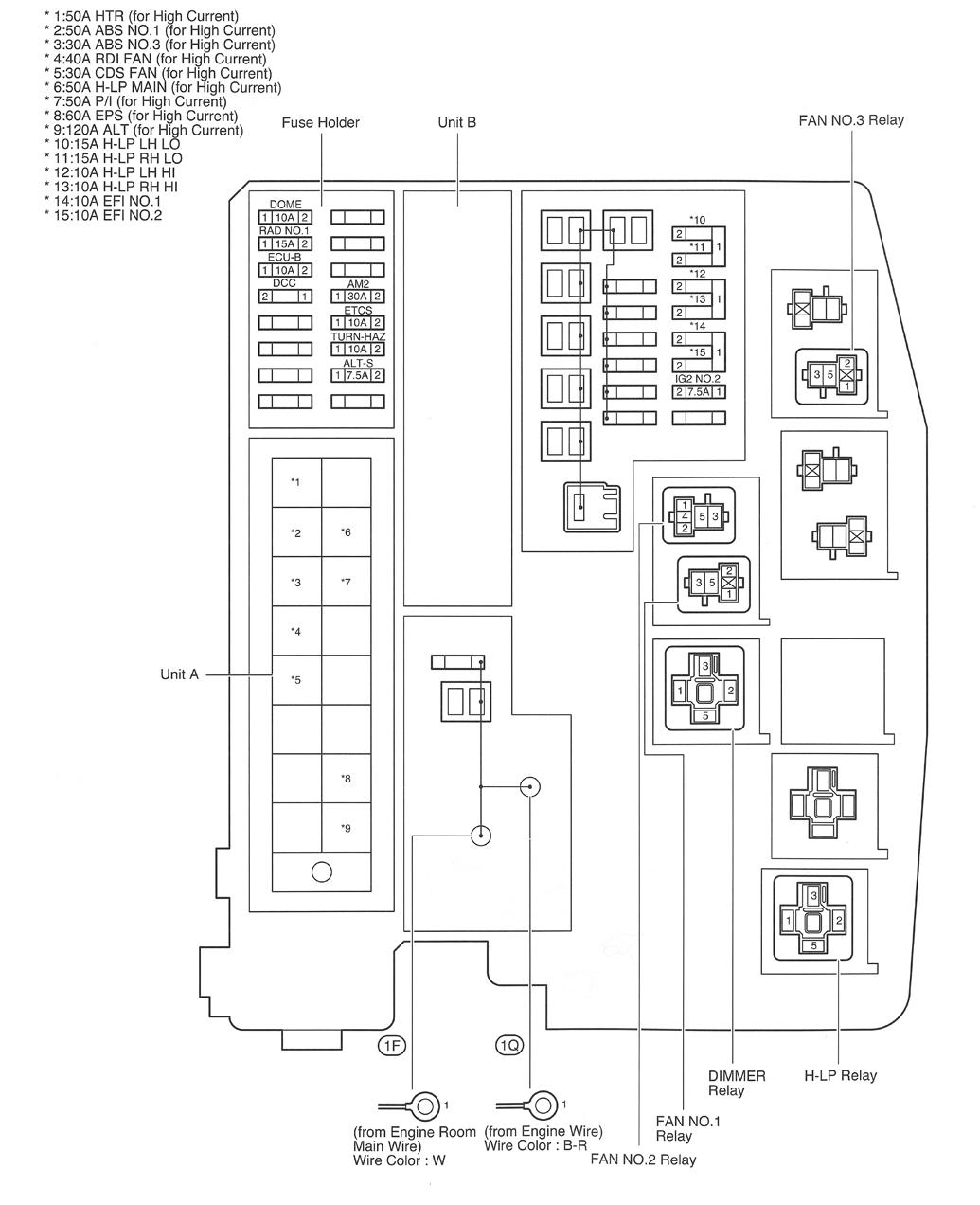

Fig 5: Engine Room R/B

G00459129

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

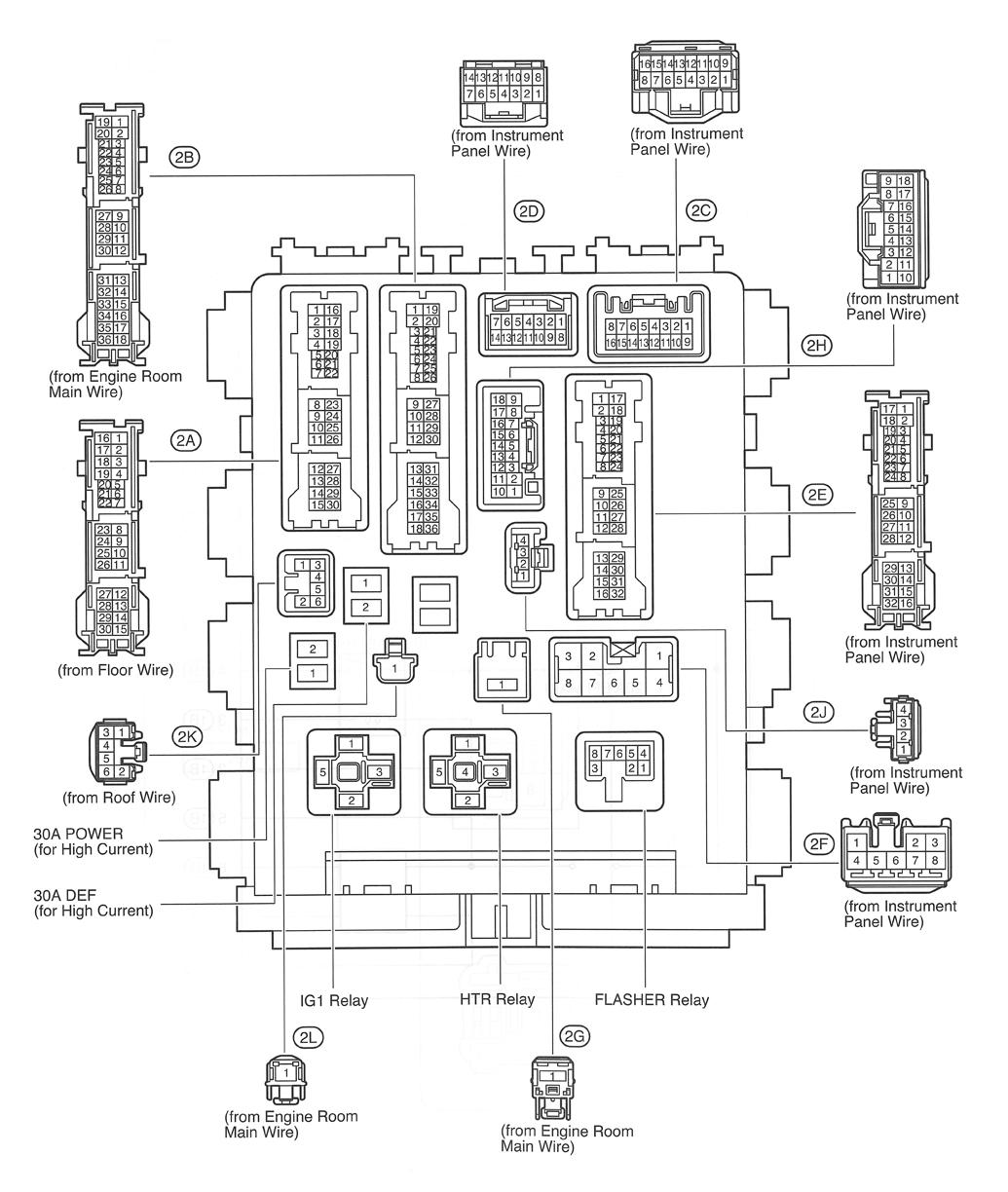

Fig 6: Instrument Panel J/B

G00459130

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

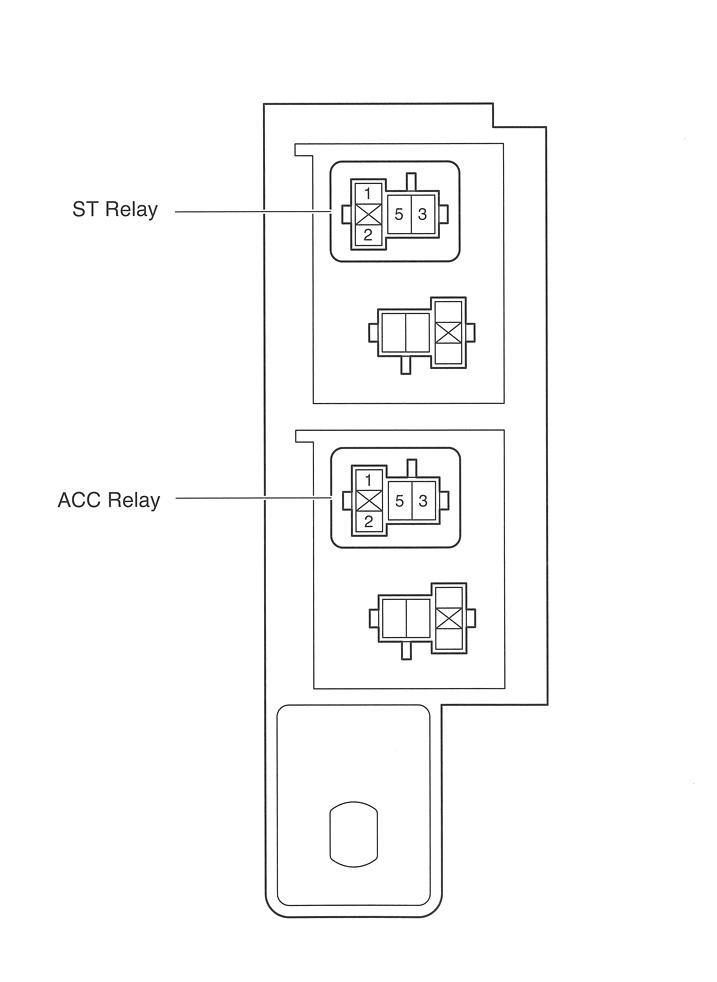

Fig 7: R/B No. 5

G00459131

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

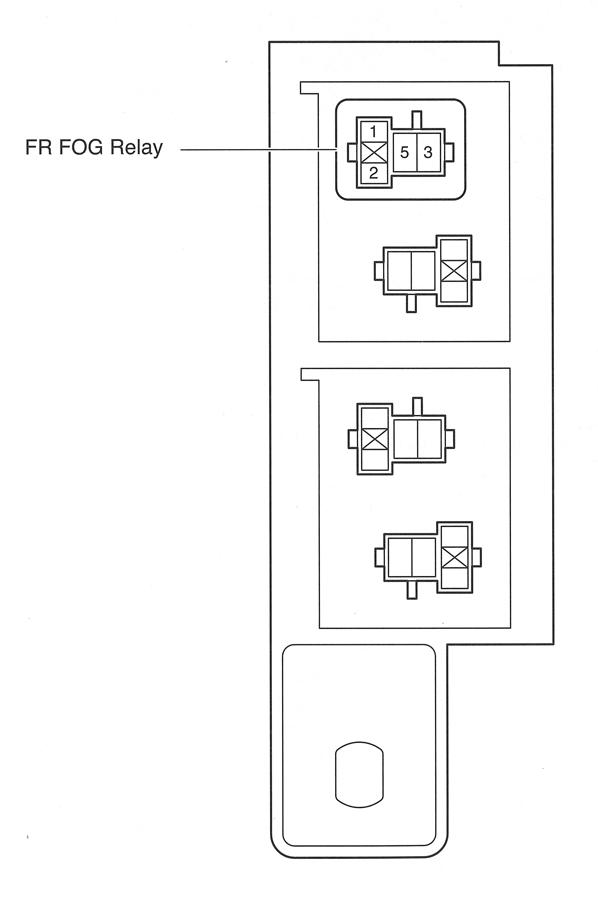

Fig 8: R/B No. 6

G00459132

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

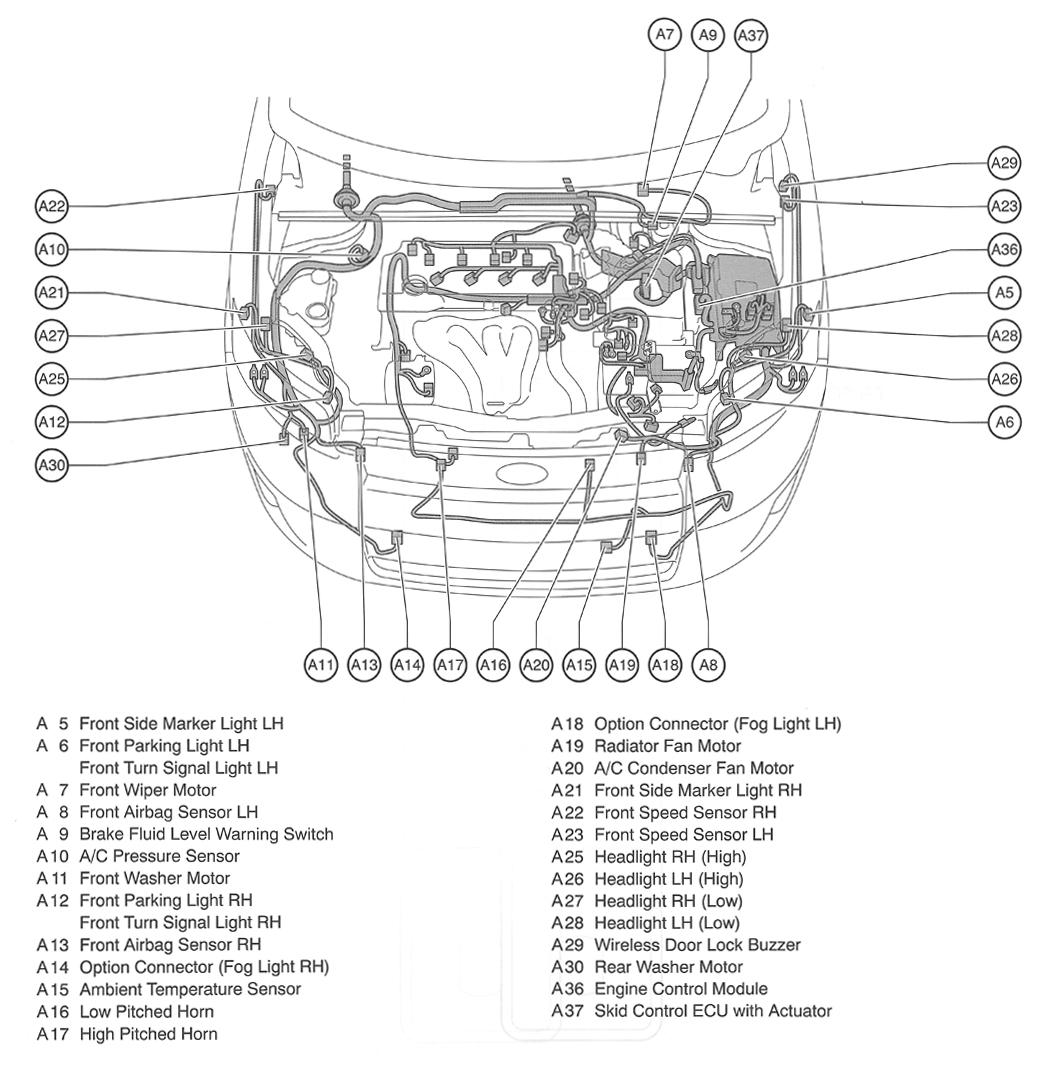

Fig 9: Engine Compartment

G00459133

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

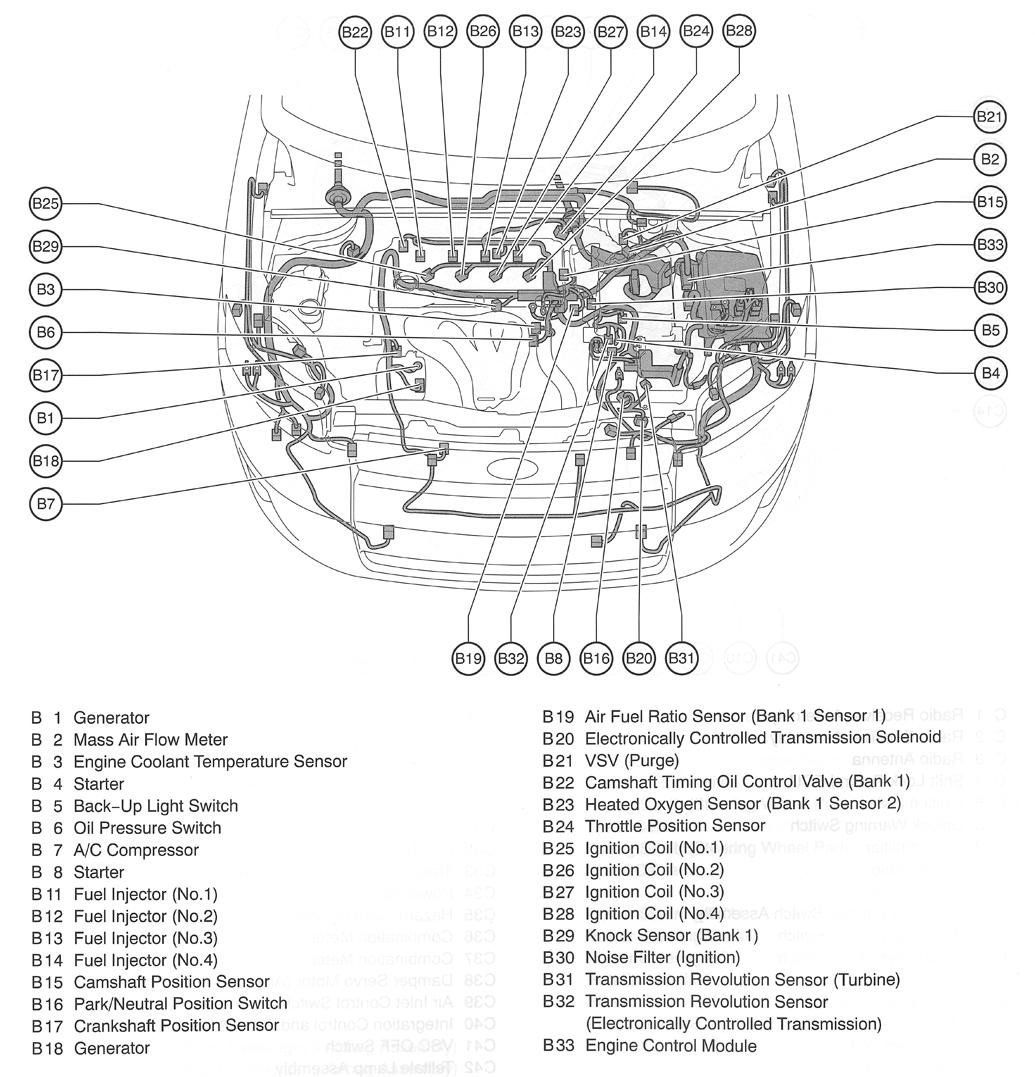

Fig 10: Engine Compartment

G00459134

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

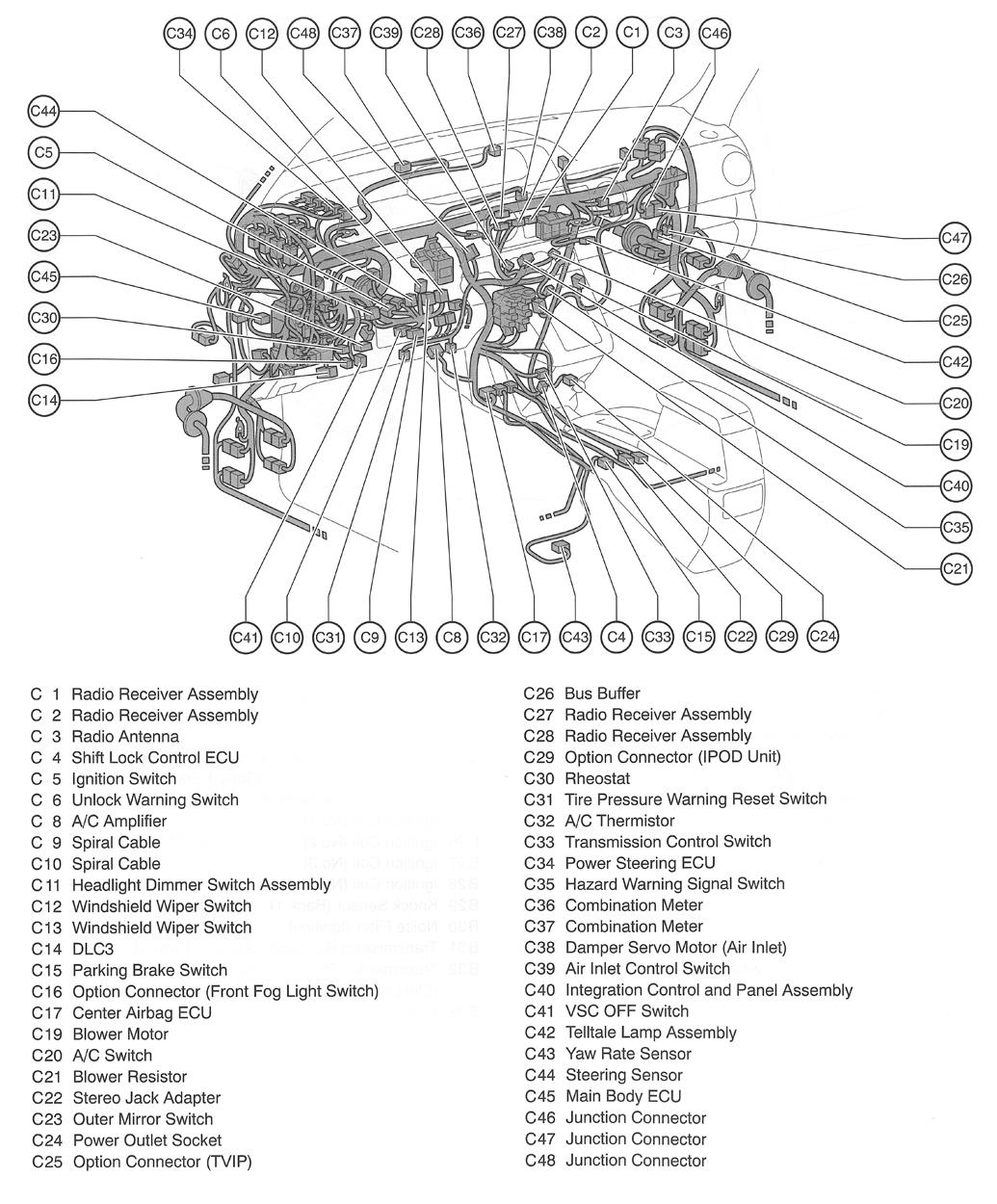

Fig 11: Dash Assembly

G00459135

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

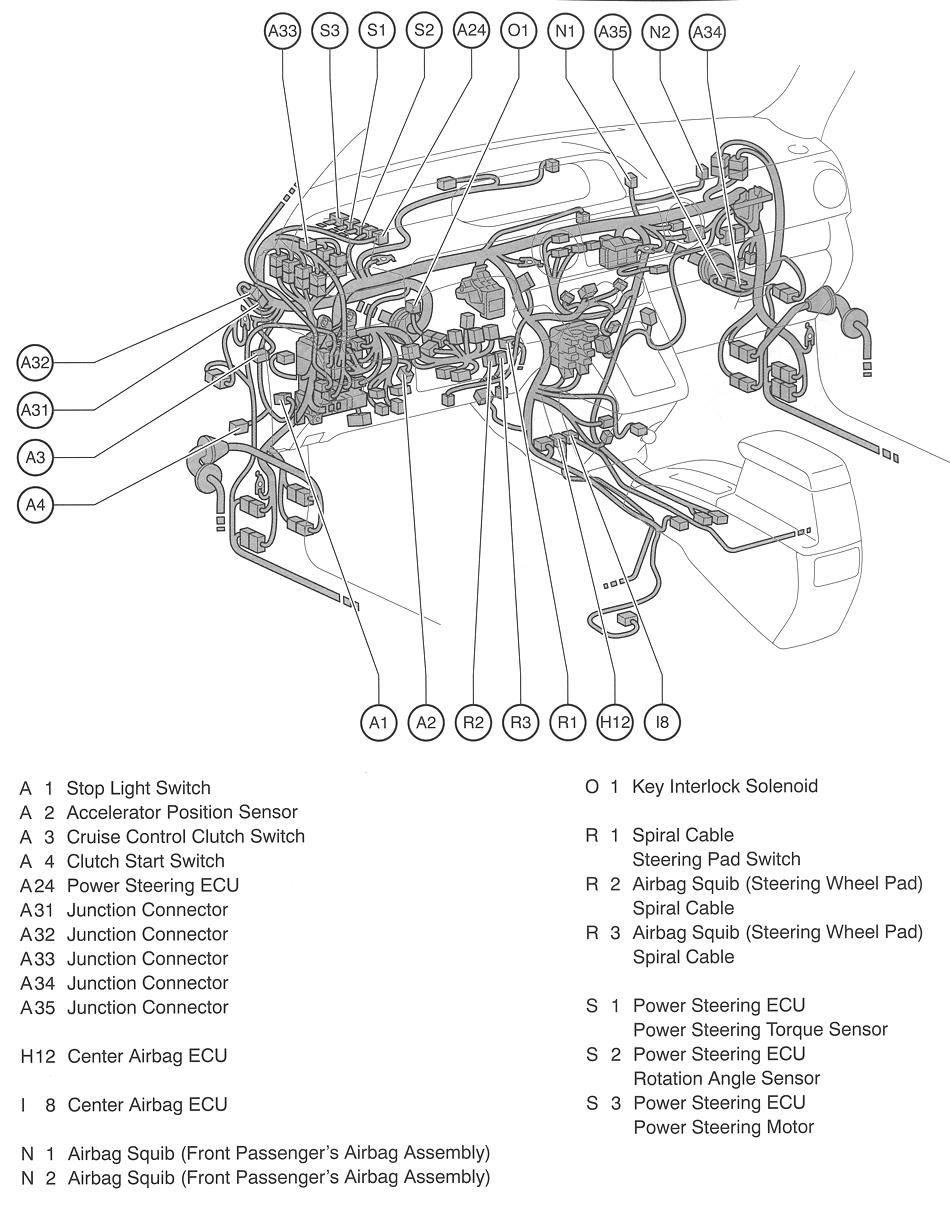

Fig 12: Dash Assembly

G00459136

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

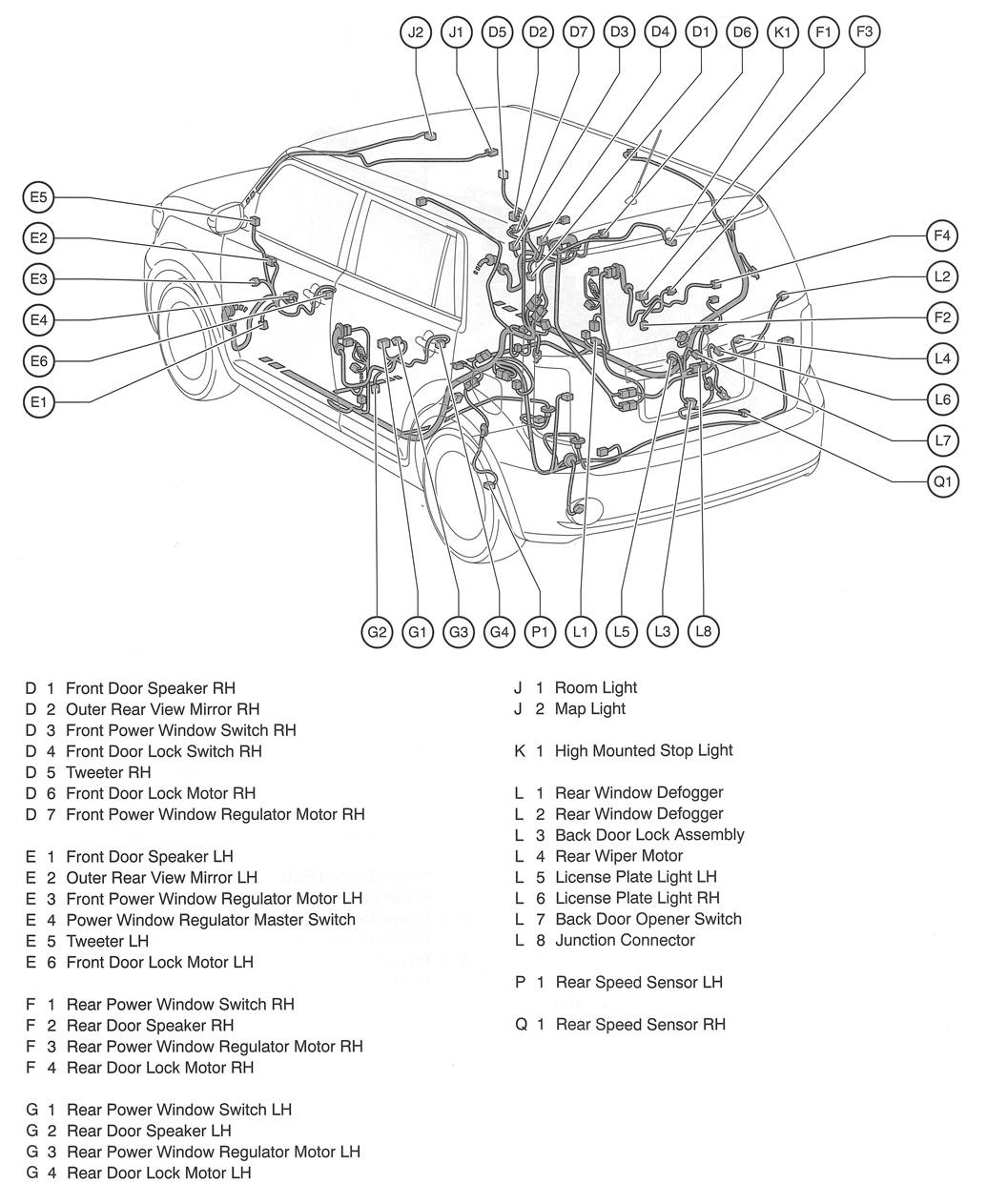

Fig 13: Vehicle Overview

G00459137

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

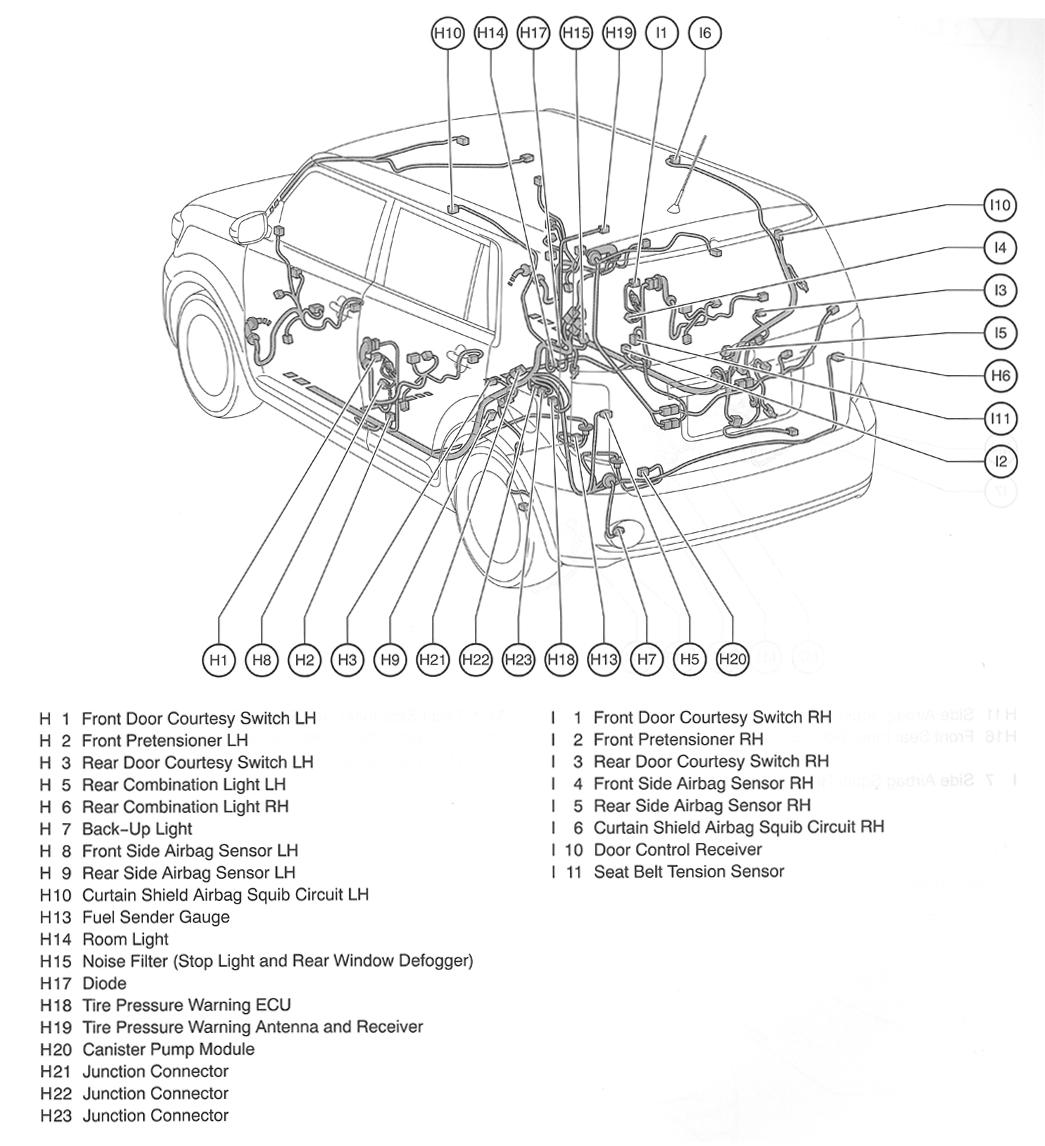

Fig 14: Vehicle Overview

G00459138

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

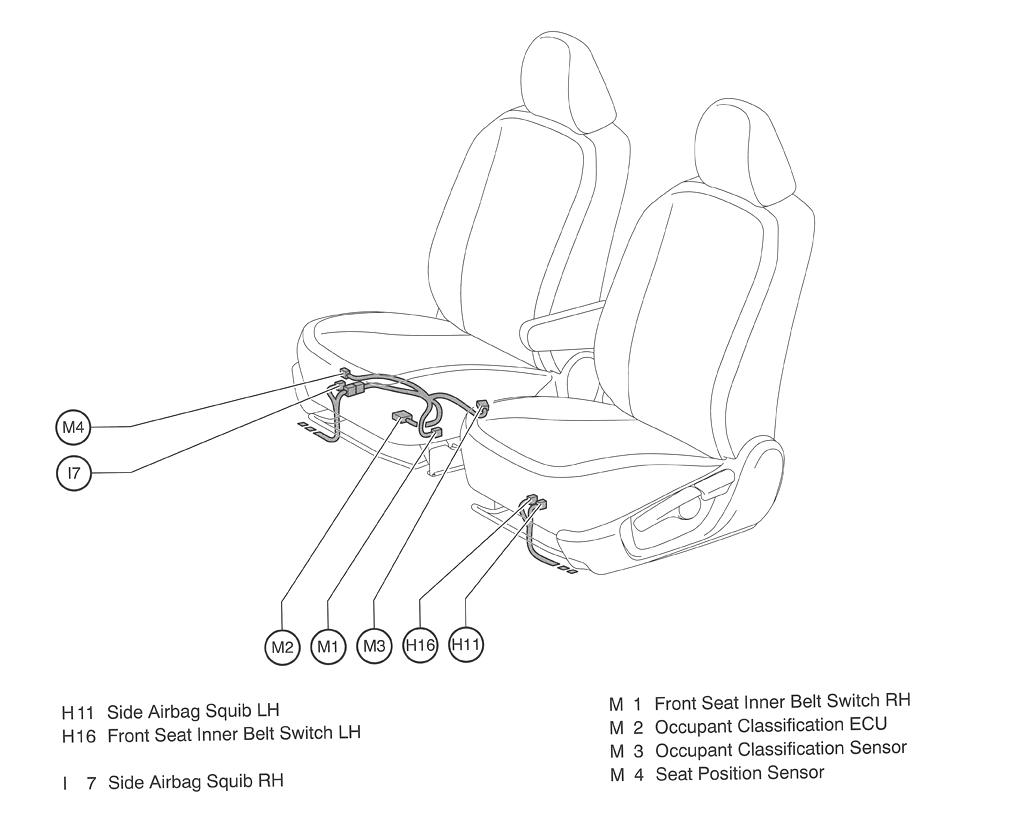

Fig 15: Front Seats

G00459139

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

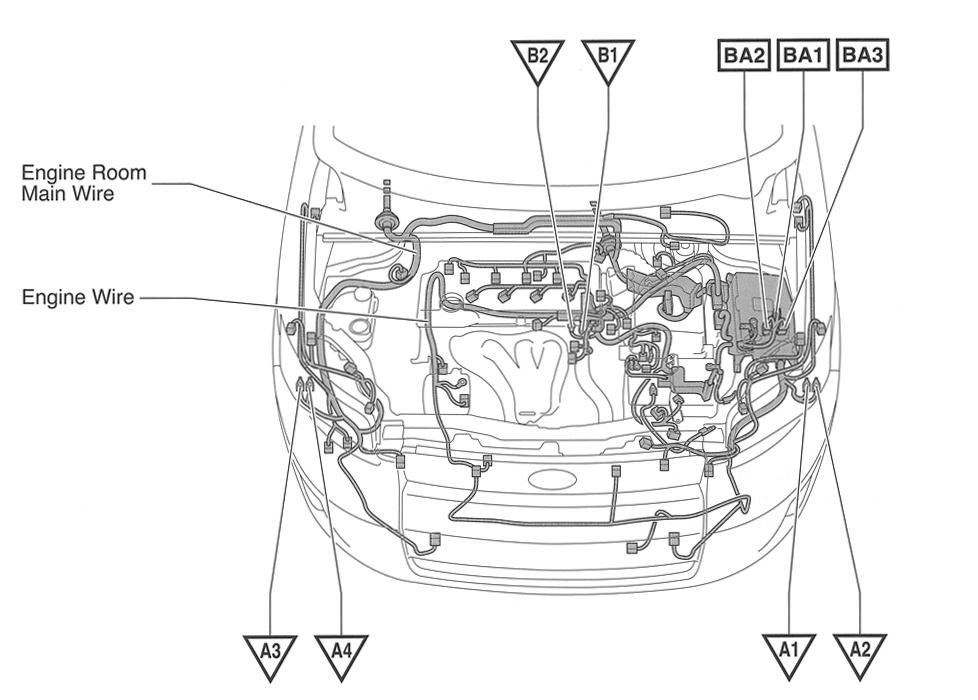

Fig 16: Engine Compartment

G00459140

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

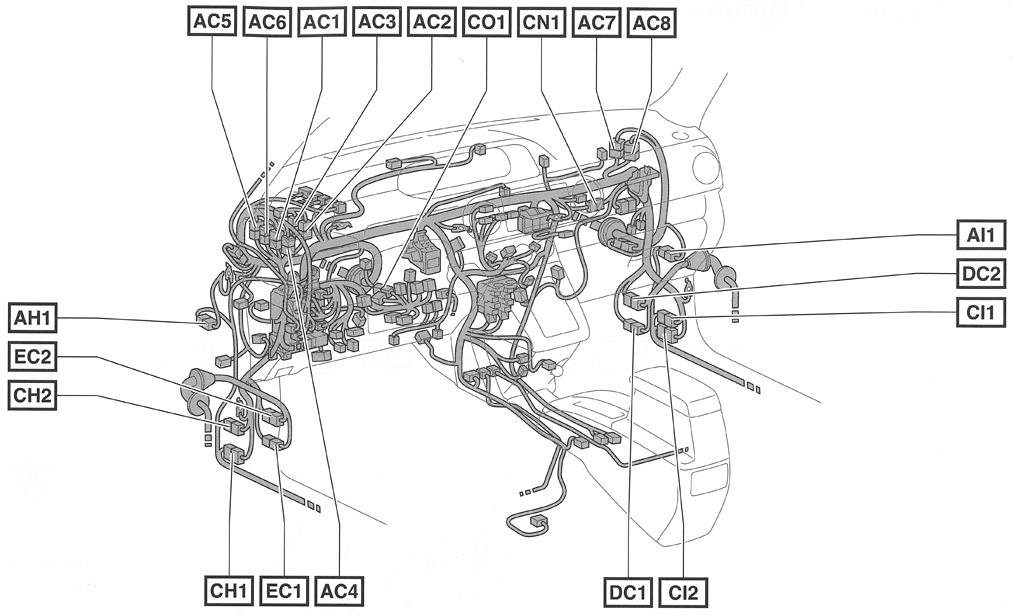

Fig 17: Dash Assembly

G00459141

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

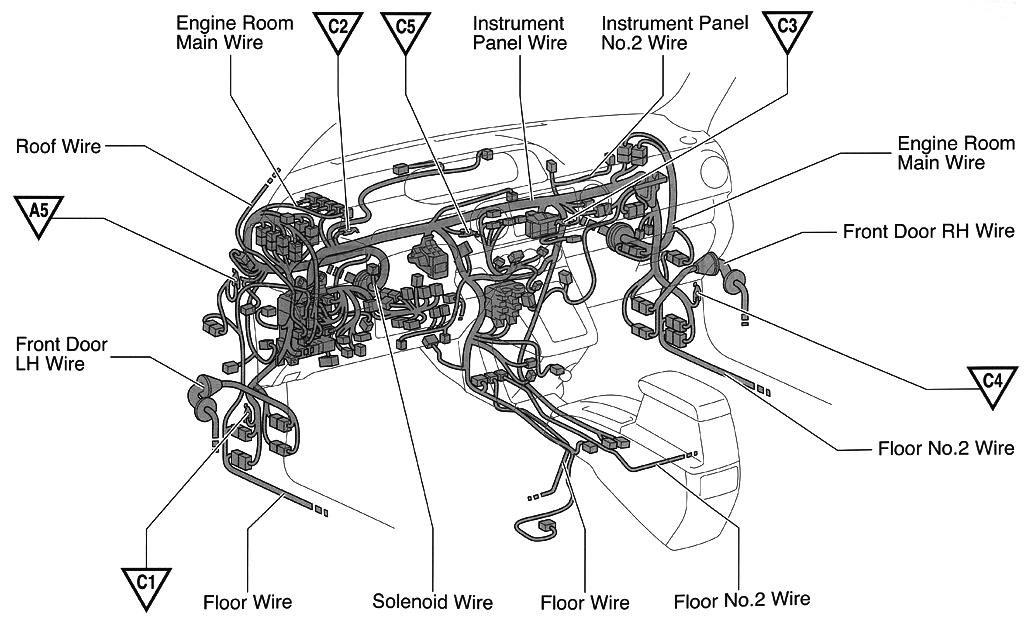

Fig 18: Dash Assembly

G00459142

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

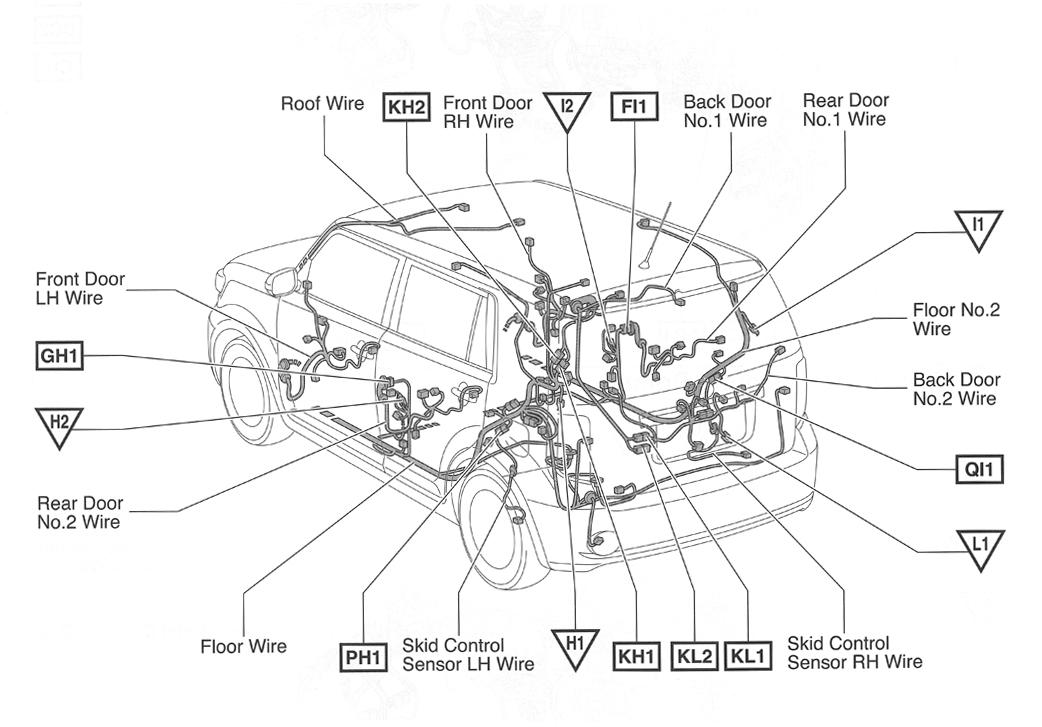

Fig 19: Vehicle Overview

G00459143

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

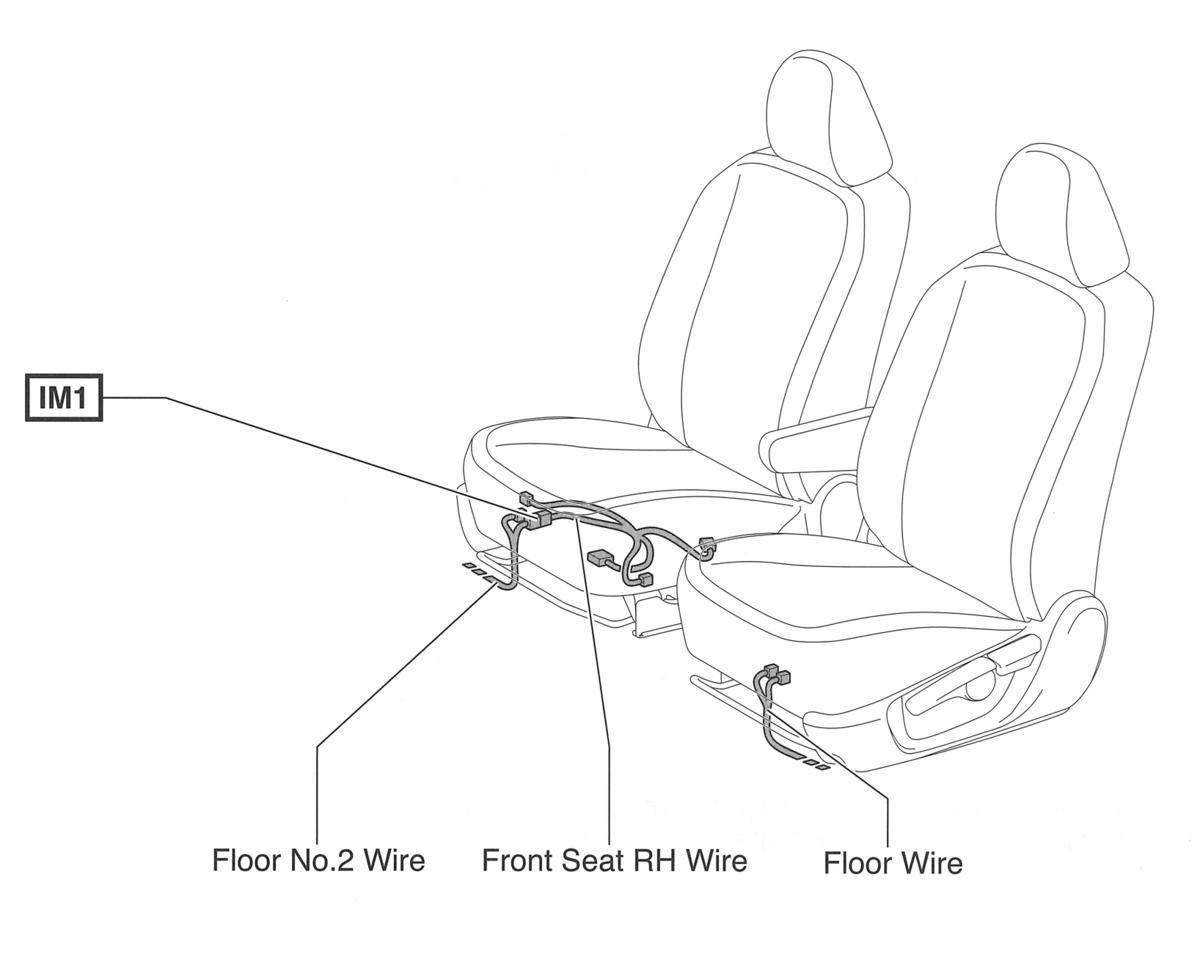

Fig 20: Front Seats

G00459144

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
