Parts Location

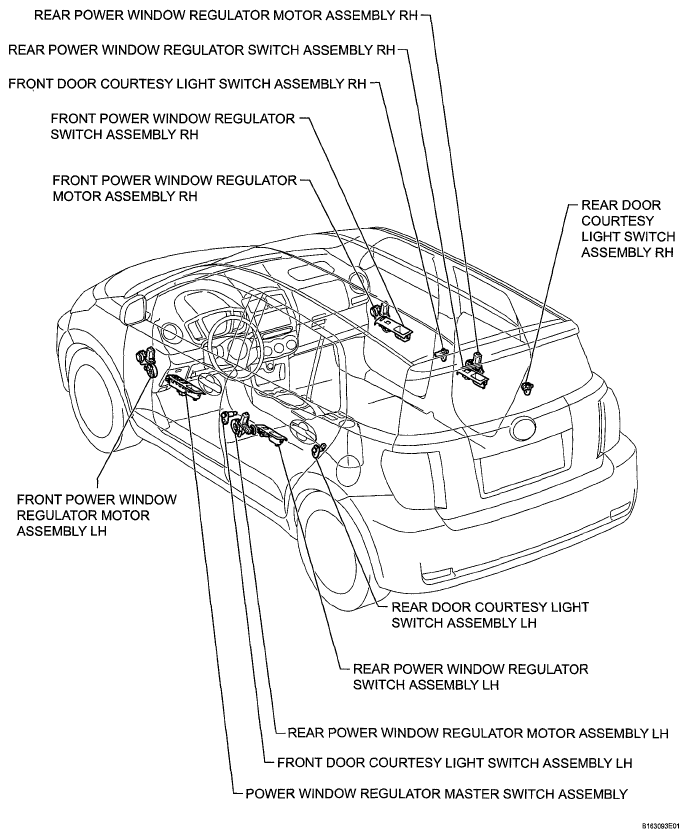

Fig 1: Identifying Power Window Control System Components (1 Of 2)
G05403012Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

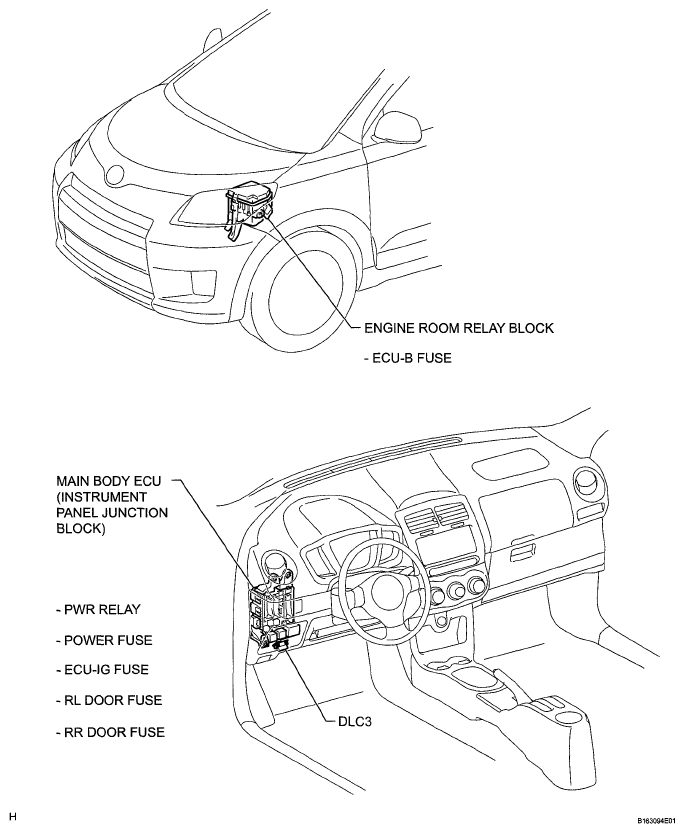

Fig 2: Identifying Power Window Control System Components (2 Of 2)
G05403013Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
