Rear Power Window Switch: Inspection

  1. INSPECT REAR POWER WINDOW SWITCH
    1. Check the resistance.
      1. Measure the resistance according to the value(s) in the table below.

        Standard resistance

        TESTER CONNECTION AND SPECIFIED CONDITION

        Tester Connection Switch Connection Specified Condition
        1 (D) - 2 (SD)
        3 (B) - 4 (U)        		 UP Below 1 Ω
        1 (D) - 2 (SD)
        4 (U) - 5 (SU)        		 OFF Below 1 Ω
        1 (D) - 3 (B)
        4 (U) - 5 (SU)        		 DOWN Below 1 Ω

        If the result is not as specified, replace the rear power window switch.

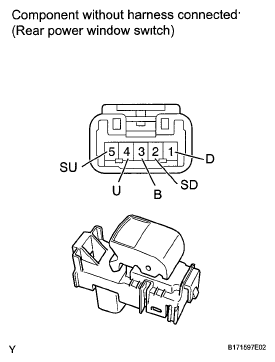

        Fig 1: Identifying Rear Power Window Switch Connector Terminals
        G05391267Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
