Steering Column Assembly: Components

Fig 1: Steering Column Assembly Replacement Components With Torque Specifications (1 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

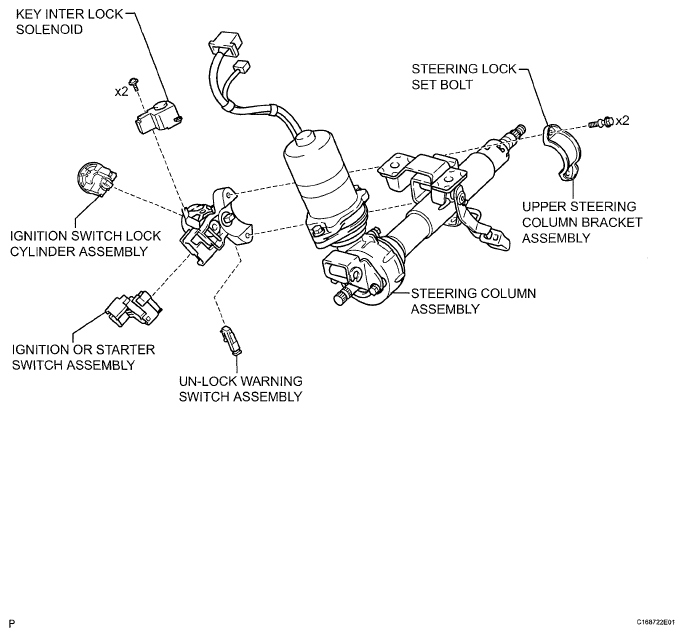

Fig 2: Identifying Steering Column Assembly Components (2 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Steering Column Assembly Replacement Components With Torque Specifications (3 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

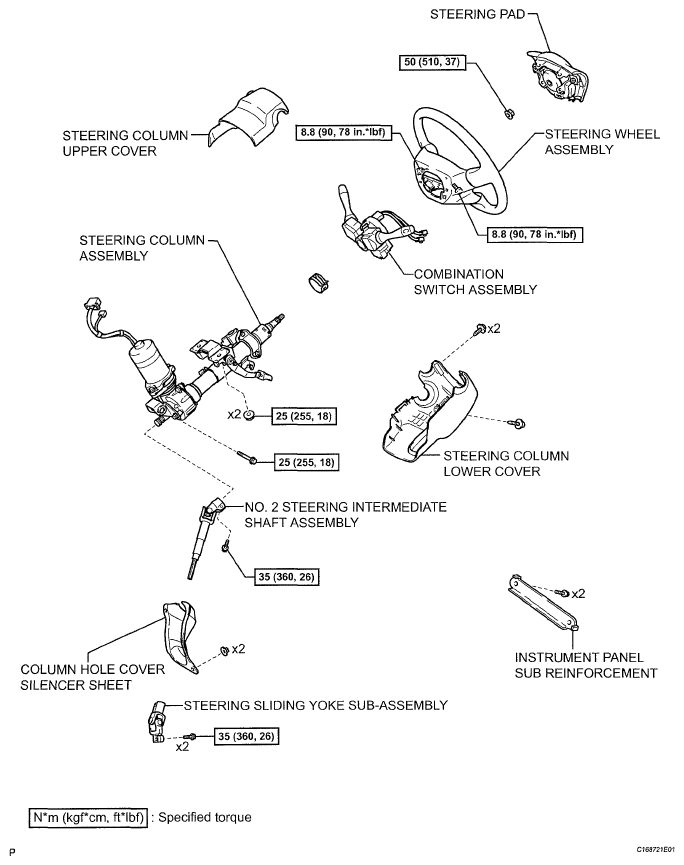

Fig 4: Steering Column Assembly Replacement Components With Torque Specifications (4 Of 5)

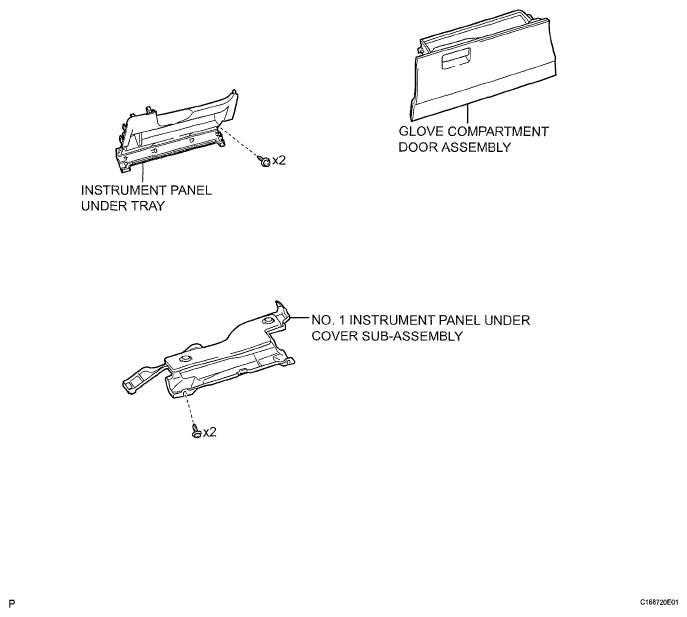

Fig 5: Identifying Steering Column Assembly Components (5 Of 5)
