Accelerator Pedal: Removal: Removal

  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    WARNING:

    Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

  2. REMOVE ACCELERATOR PEDAL
    1. Disconnect the accelerator pedal position sensor connector.

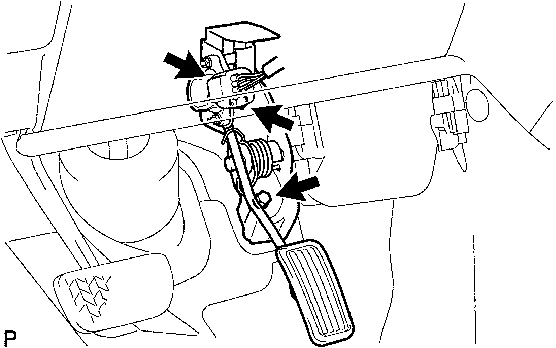

      Fig 1: Identifying Accelerator Pedal With Bolts
      GTY162326Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 bolts and accelerator pedal.
