Camshaft Oil Control Valve: Components: Illustration

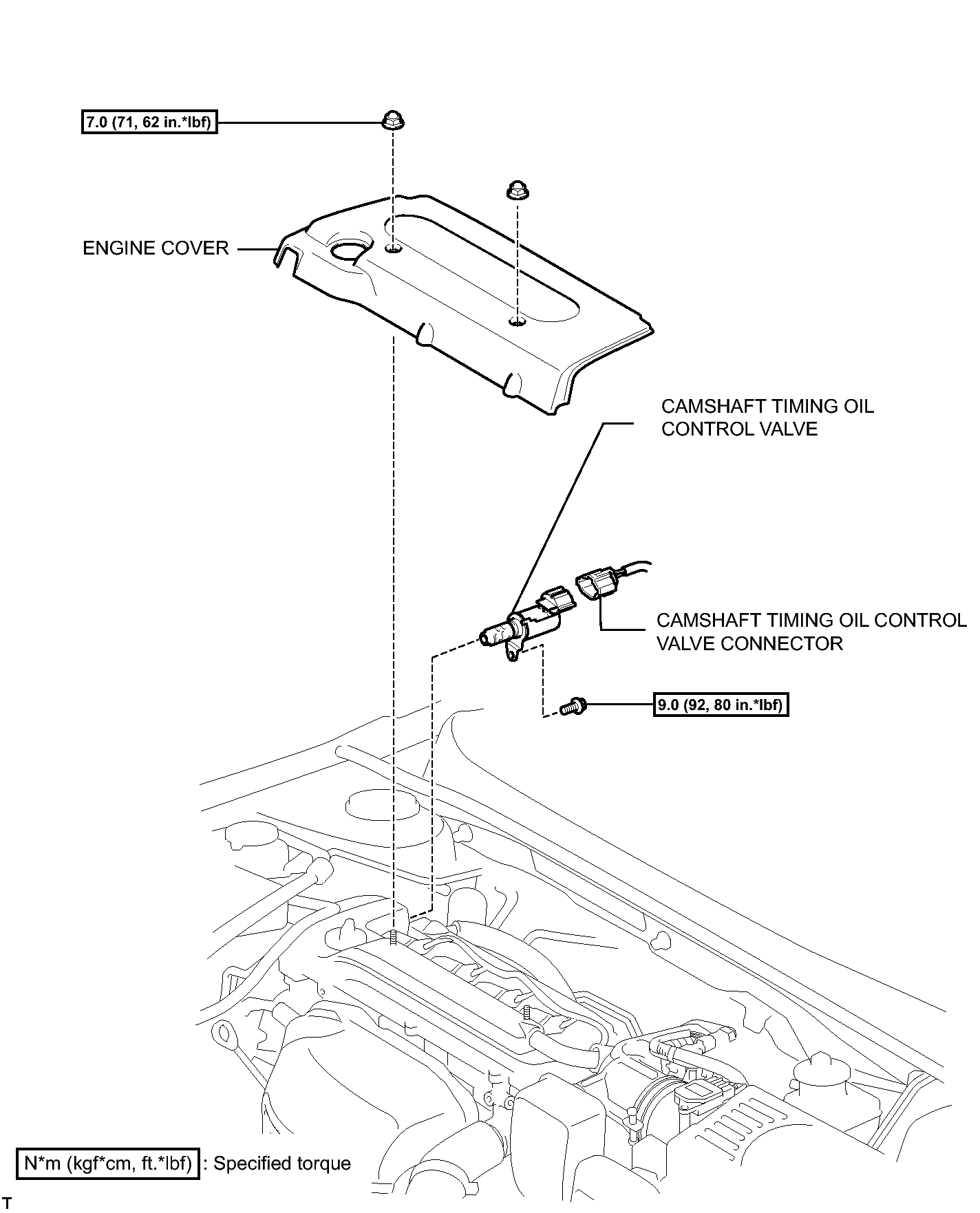

Fig 1: Identifying Camshaft Timing Oil Control Valve Assembly Replacement Components With Torque Specifications
GTY161550Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
