Throttle Body: Inspection: Inspection

INSPECT THROTTLE BODY

Measure the resistance of the throttle control motor.

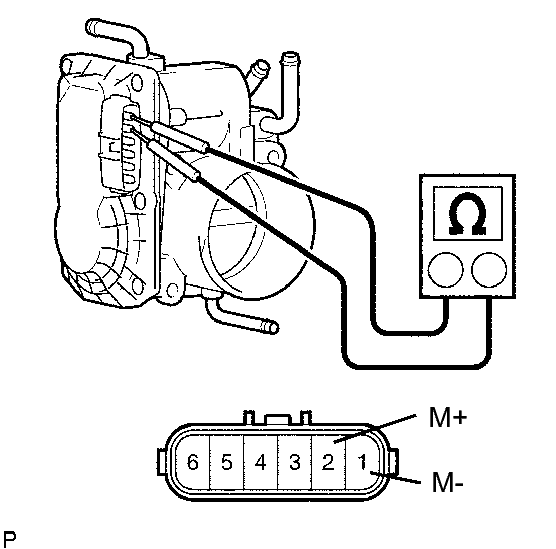

Fig 1: Identifying Resistance Of Throttle Control Motor Connector Terminal

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Standard resistance

Tester Connection	Specified Condition
1 (M-) - 2 (M+)	0.3 to 100 Ω at 20°C (68°F)

If the result is not as specified, replace the throttle body.
