Knock Sensor: Inspection: Inspection

  1. INSPECT KNOCK SENSOR
    1. Measure the resistance.

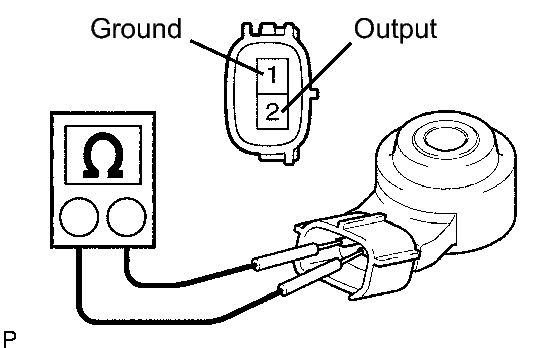

      Fig 1: Inspecting Knock Sensor
      GTY134485Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard resistance

      Tester Connection Condition Specified Condition
      1 - 2 20°C (68°F) 120 k to 280 kΩ

      If the result is not as specified, replace the knock sensor.
