Mass Air Flow Meter: Installation: Installation

  1. INSTALL MASS AIR FLOW METER

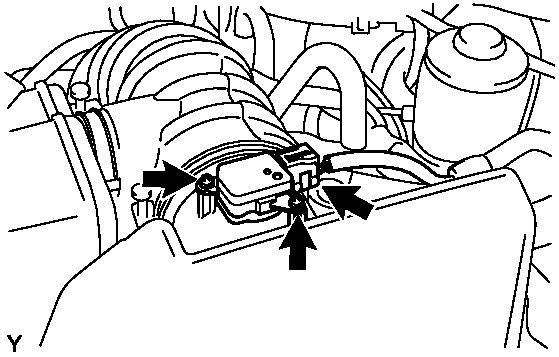

    Fig 1: View Of Mass Air Flow Meter Screws
    GTY160796Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Install the mass air flow meter with the 2 screws.
    2. Connect the mass air flow meter connector.
