Heated Oxygen Sensor: Removal: Removal

  1. REMOVE HEATED OXYGEN SENSOR

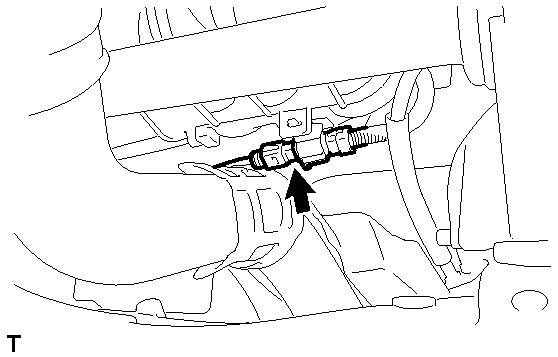

    Fig 1: View Of Heated Oxygen Sensor Connector
    GTY165125Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the heated oxygen sensor connector.
    2. Using SST, remove the heated oxygen sensor.
      • SST: 09224-00010

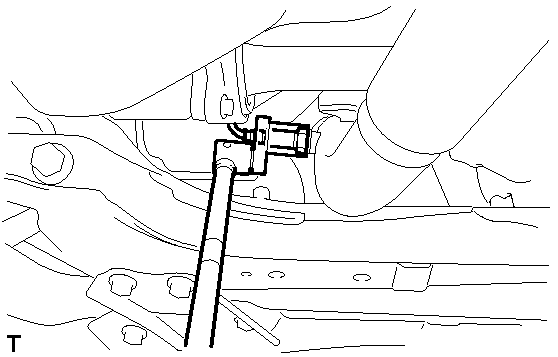

      Fig 2: Identifying Heated Oxygen Sensor
      GTY160942Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
