Ignition Relay No. 1: Inspection: Inspection

  1. INSPECT NO. 1 IGNITION RELAY

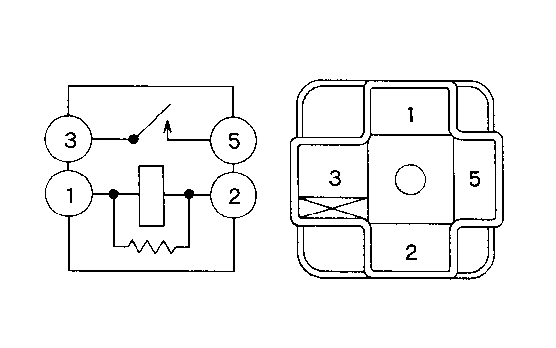

    Fig 1: Measuring Resistance Between Ignition Relay Terminals
    GTY161940Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Check the resistance.
      1. Measure the resistance according to the value (s) in the table below.

        Standard resistance

        Tester Connection Condition Specified Condition
        3 - 5 When battery voltage applied to terminals 1 and 2 Below 1 Ω
        When battery voltage absent 10 kΩ or higher

        If the result is not as specified, replace the ignition relay.
