Ignition Relay No. 1: Removal: Removal

  1. REMOVE INSTRUMENT PANEL BOX  . Refer to REMOVAL - Step 30
  2. REMOVE NO. 1 IGNITION RELAY

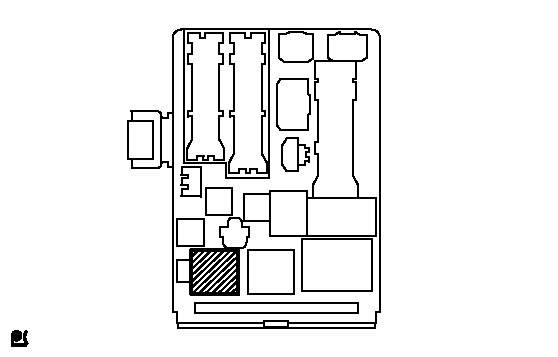

    Fig 1: Identifying No 1 Ignition Relay
    GTY166213Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Remove the No. 1 ignition relay.
