Mass Air Flow Meter: Inspection: Inspection

  1. INSPECT MASS AIR FLOW METER
    1. Using a work light, check that the platinum filament (heater portion) in the mass air flow meter has no foreign matter attached.

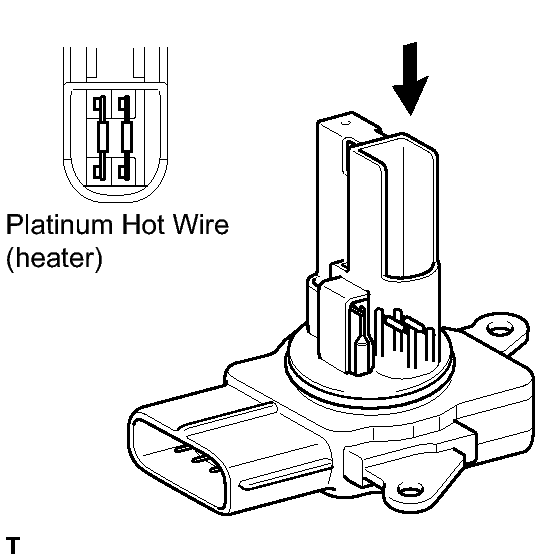

      Fig 1: Identifying Platinum Filament (Heater Portion) In Mass Air Flow Meter
      GTY161150Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      OK

      No foreign matter attached.
