Crankshaft Position Sensor: Removal: Removal

  1. REMOVE ENGINE UNDER COVER RH
  2. REMOVE CRANKSHAFT POSITION SENSOR
    1. Disconnect the crankshaft position sensor connector.

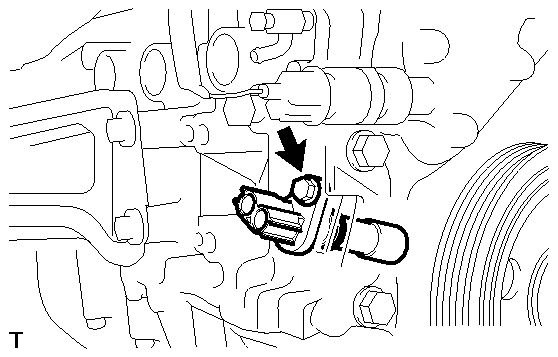

      Fig 1: Locating Crankshaft Position Sensor Bolt
      GTY161160Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt and remove the crankshaft position sensor.
