Engine Control System (Service Information): ECM: Installation: Installation

  1. INSTALL NO. 2 ECM BRACKET

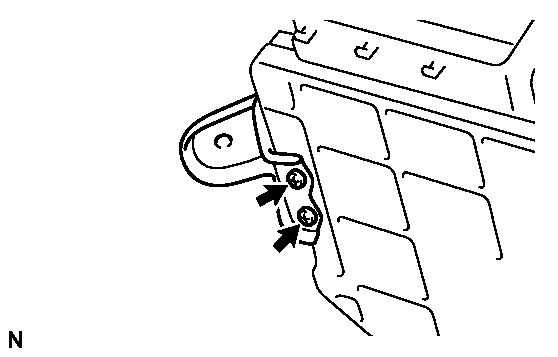

    Fig 1: Identifying ECM Bracket No. 2 With Screws
    GTY162927Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Install the No. 2 ECM bracket with the 2 screws.
  2. INSTALL ECM BRACKET

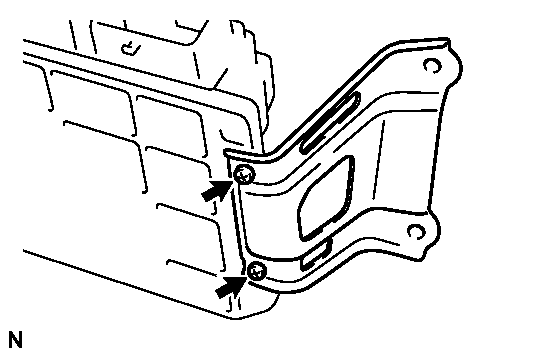

    Fig 2: Locating ECM Bracket Screws
    GTY162368Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Install the ECM bracket with the 2 screws.
  3. INSTALL ECM

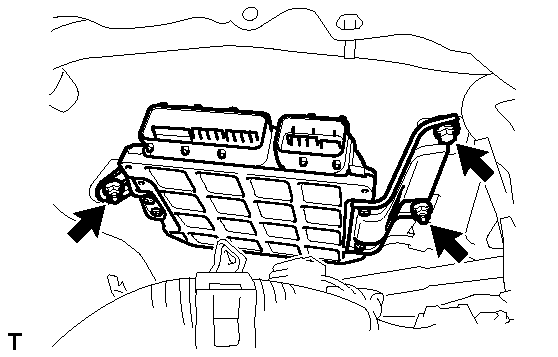

    Fig 3: Locating ECM Bolt And Nuts
    GTY162249Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Install the ECM with the bolt and 2 nuts.

      Torque: 8.0 N*m ( 82 kgf*cm, 71 ft.*lbf)

    2. Connect the 2 ECM connectors.

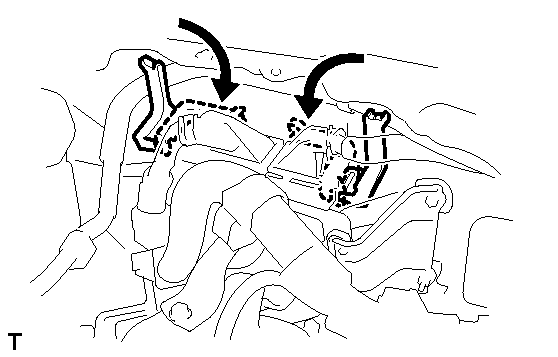

      Fig 4: Connecting ECM Connectors
      GTY160846Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Install the 2 lock knobs and harness clamp.
  4. INSTALL OUTER COWL TOP PANEL  . Refer to INSTALLATION - Step 76
  5. INSTALL FRONT AIR SHUTTER SEAL RH  . Refer to INSTALLATION - Step 77
  6. INSTALL FRONT WIPER MOTOR AND LINK  . Refer to INSTALLATION - Step 2
  7. INSTALL COWL TOP VENTILATOR LOUVER LH  . Refer to INSTALLATION - Step 3
  8. INSTALL COWL TOP VENTILATOR LOUVER RH  . Refer to INSTALLATION - Step 7
  9. INSTALL HOOD TO COWL TOP SEAL  . Refer to INSTALLATION - Step 5
  10. INSTALL FRONT WIPER ARM AND BLADE ASSEMBLY LH  . Refer to INSTALLATION - Step 6
  11. INSTALL FRONT WIPER ARM AND BLADE ASSEMBLY RH  . Refer to INSTALLATION - Step 7
  12. INSTALL FRONT WIPER ARM HEAD CAP  . Refer to INSTALLATION - Step 8
