Smart Key System: Notes

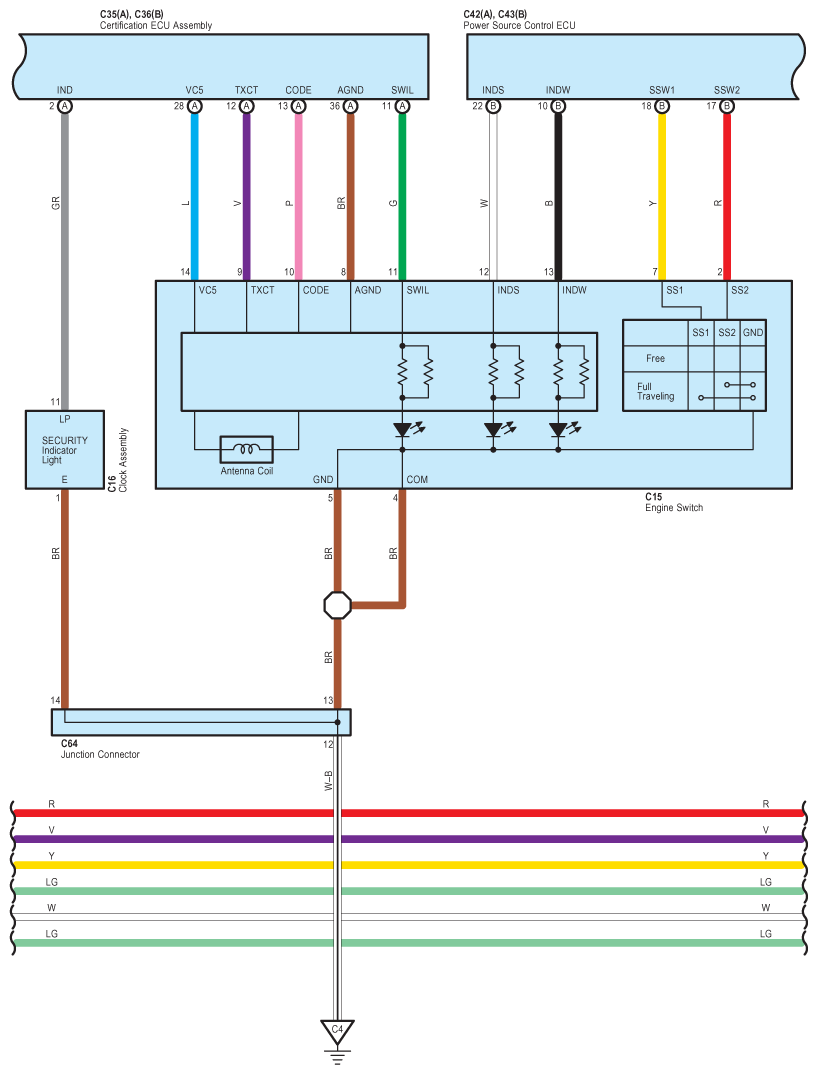

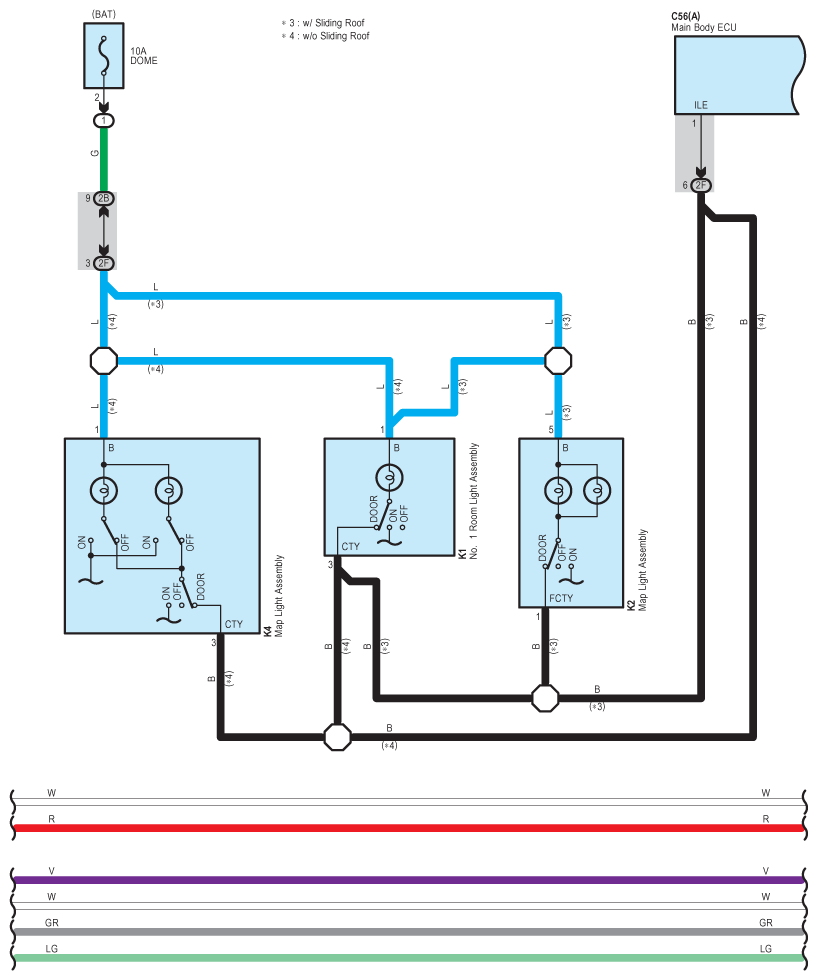

Fig 1: Smart Key System - Circuit Diagram (1 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

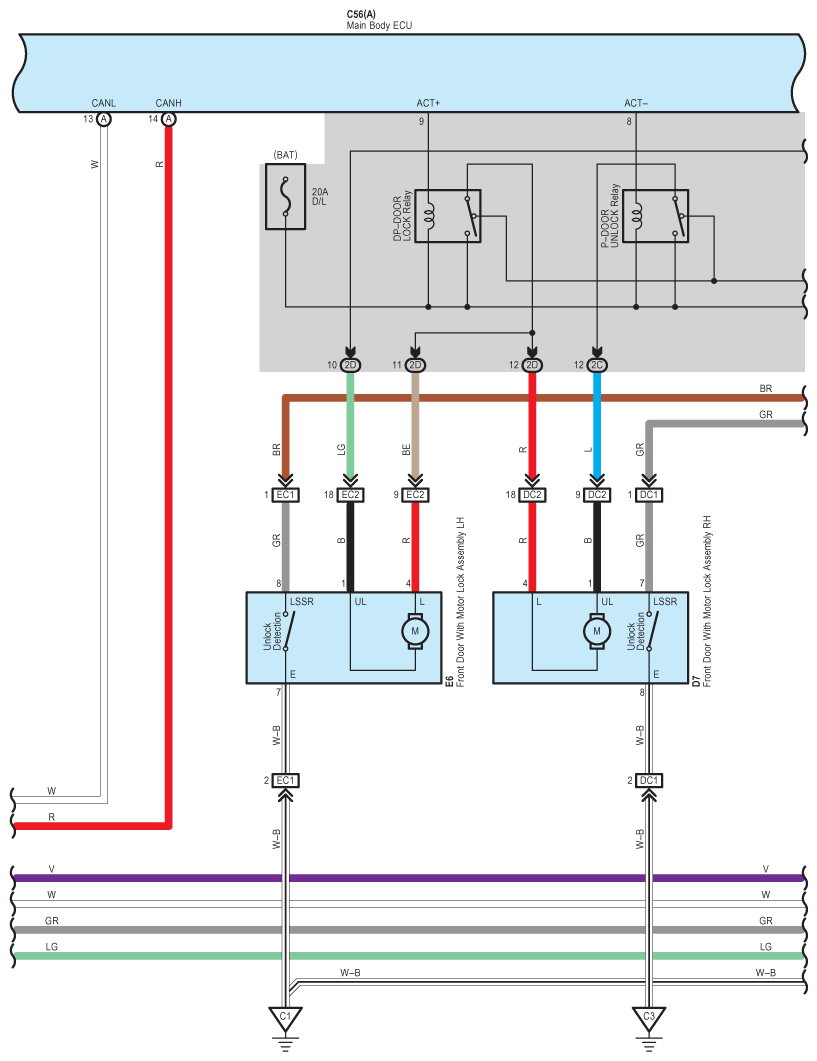

Fig 2: Smart Key System - Circuit Diagram (2 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

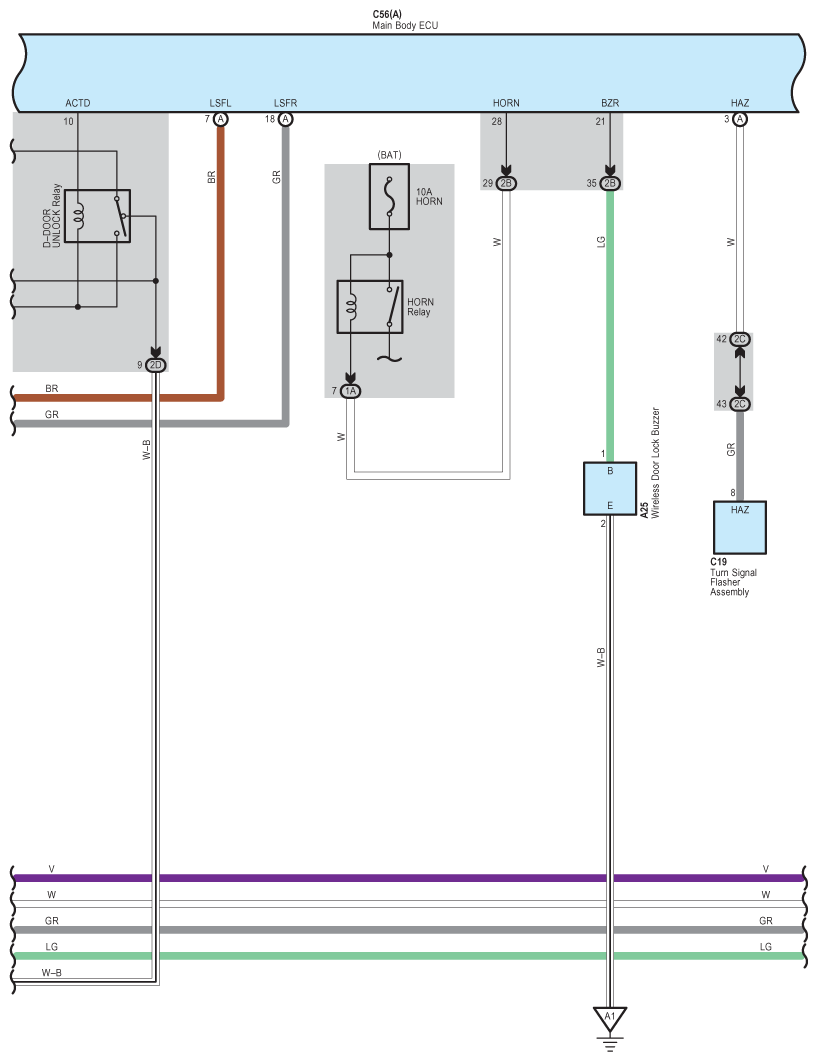

Fig 3: Smart Key System - Circuit Diagram (3 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

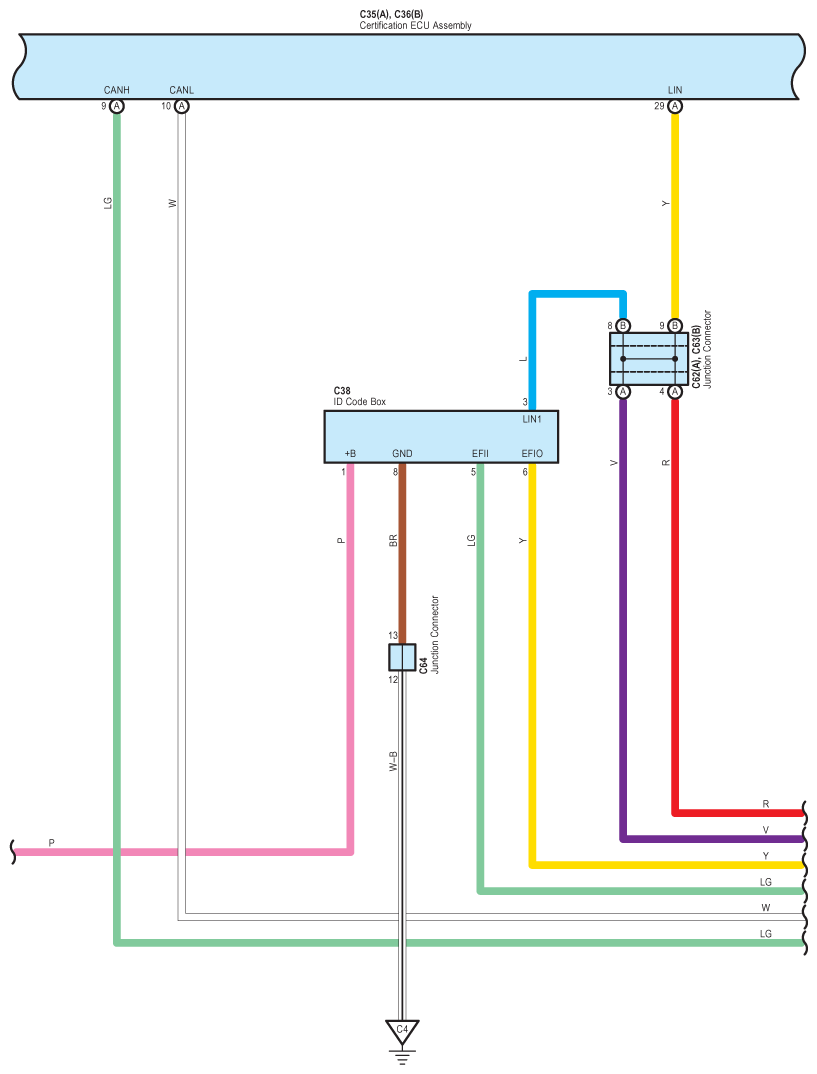

Fig 4: Smart Key System - Circuit Diagram (4 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

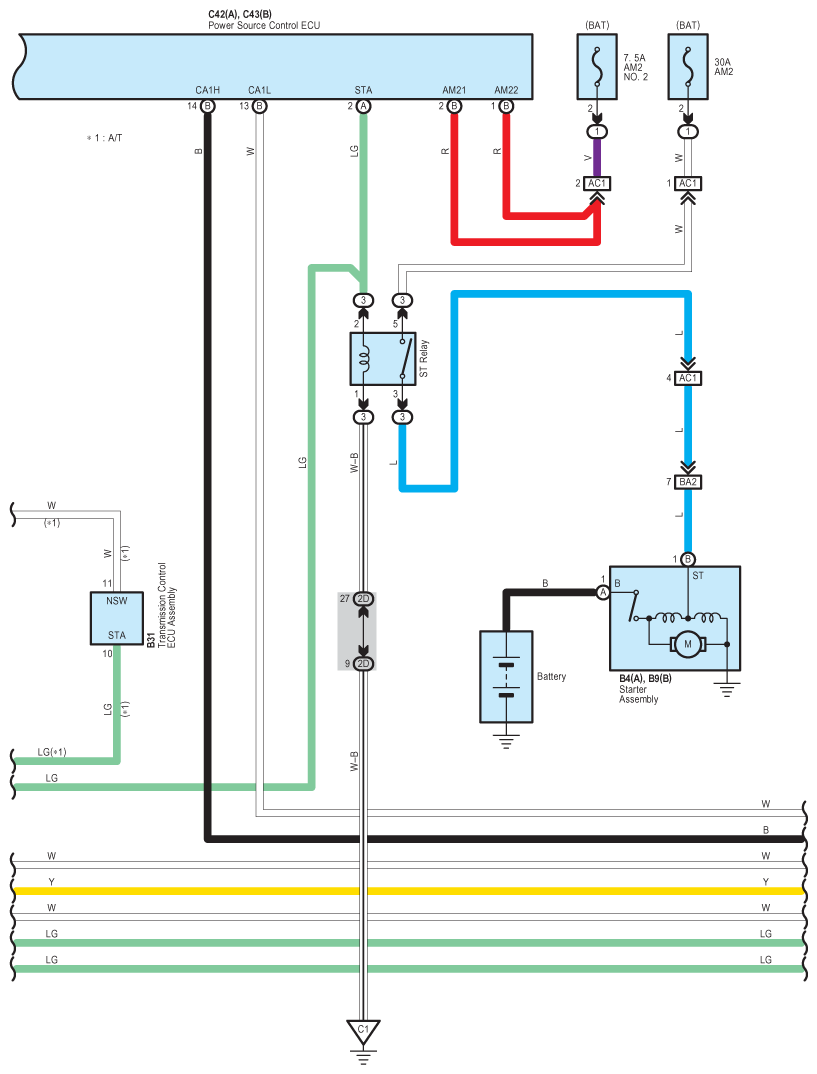

Fig 5: Smart Key System - Circuit Diagram (5 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

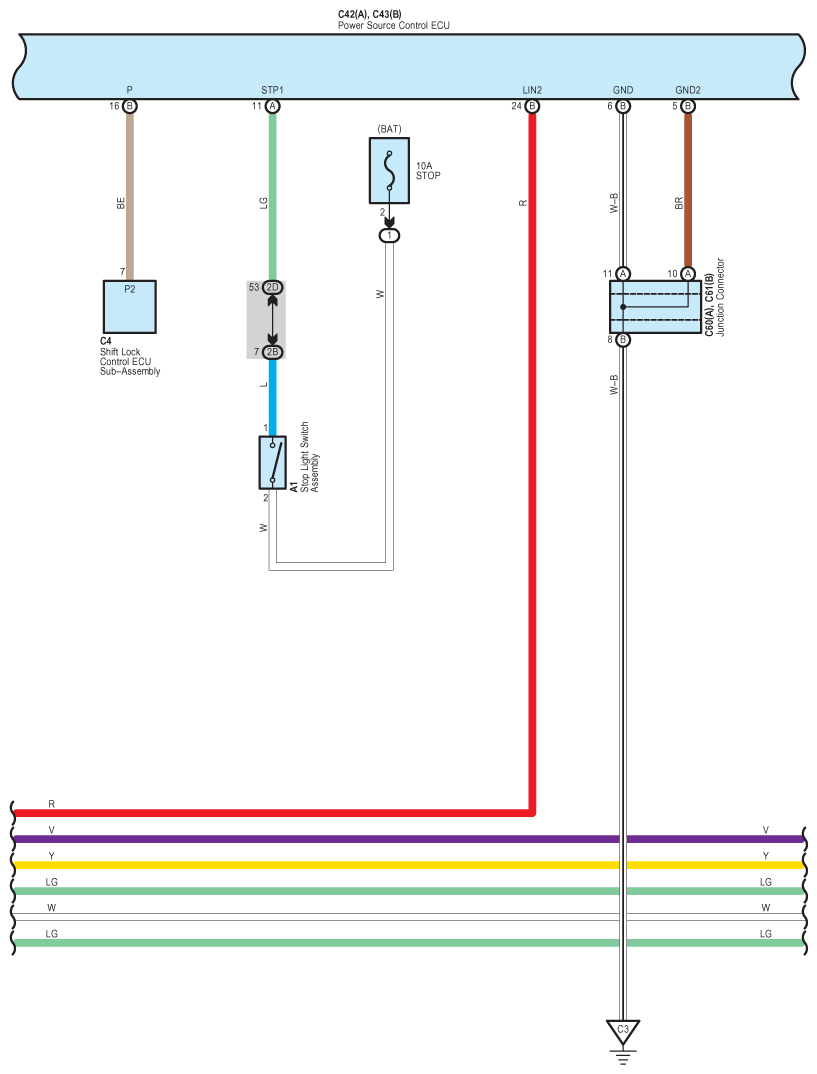

Fig 6: Smart Key System - Circuit Diagram (6 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

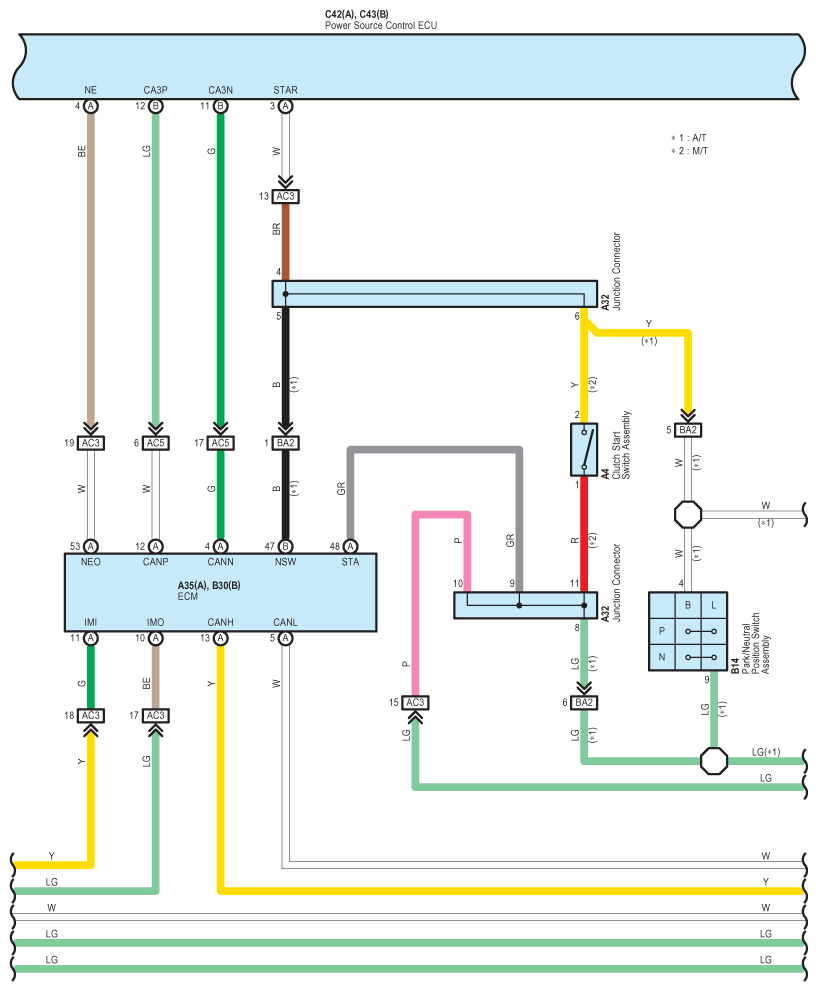

Fig 7: Smart Key System - Circuit Diagram (7 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

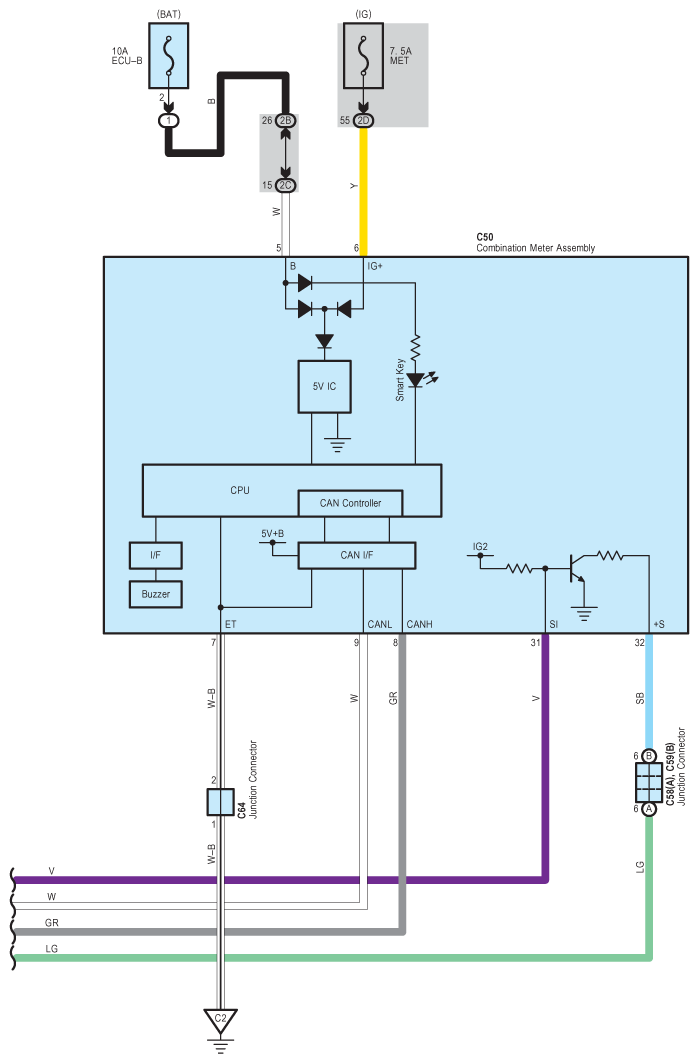

Fig 8: Smart Key System - Circuit Diagram (8 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

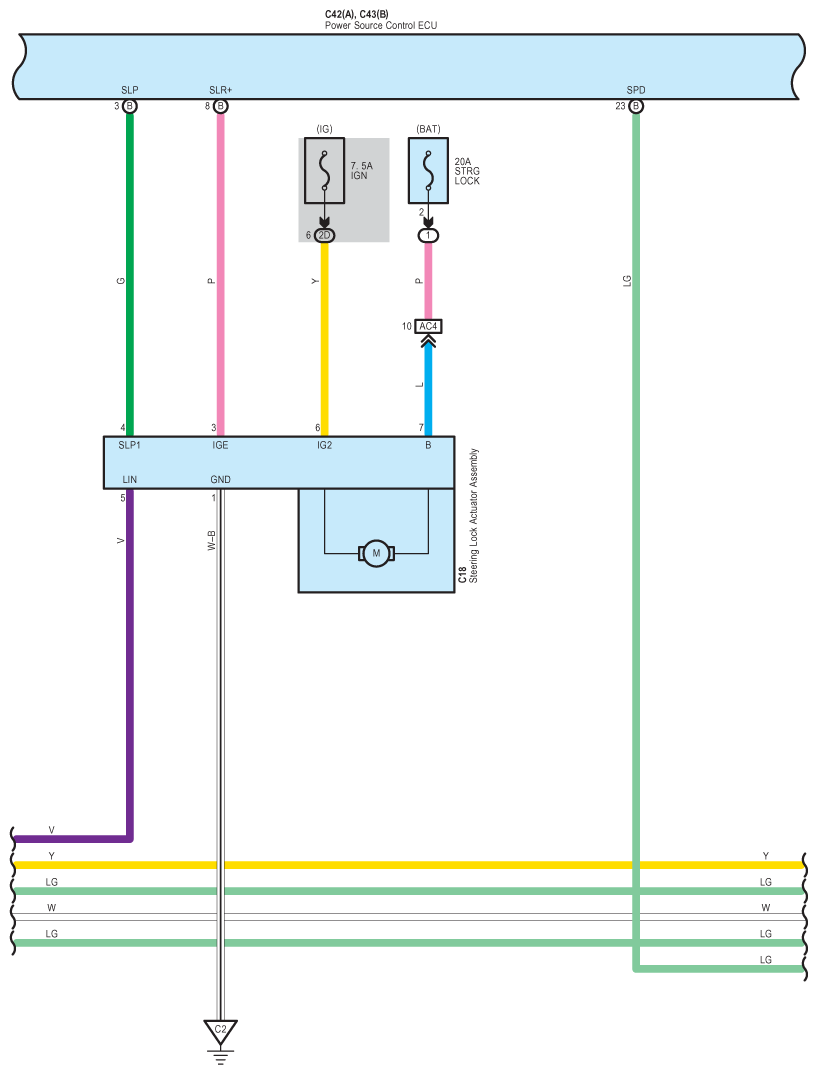

Fig 9: Smart Key System - Circuit Diagram (9 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

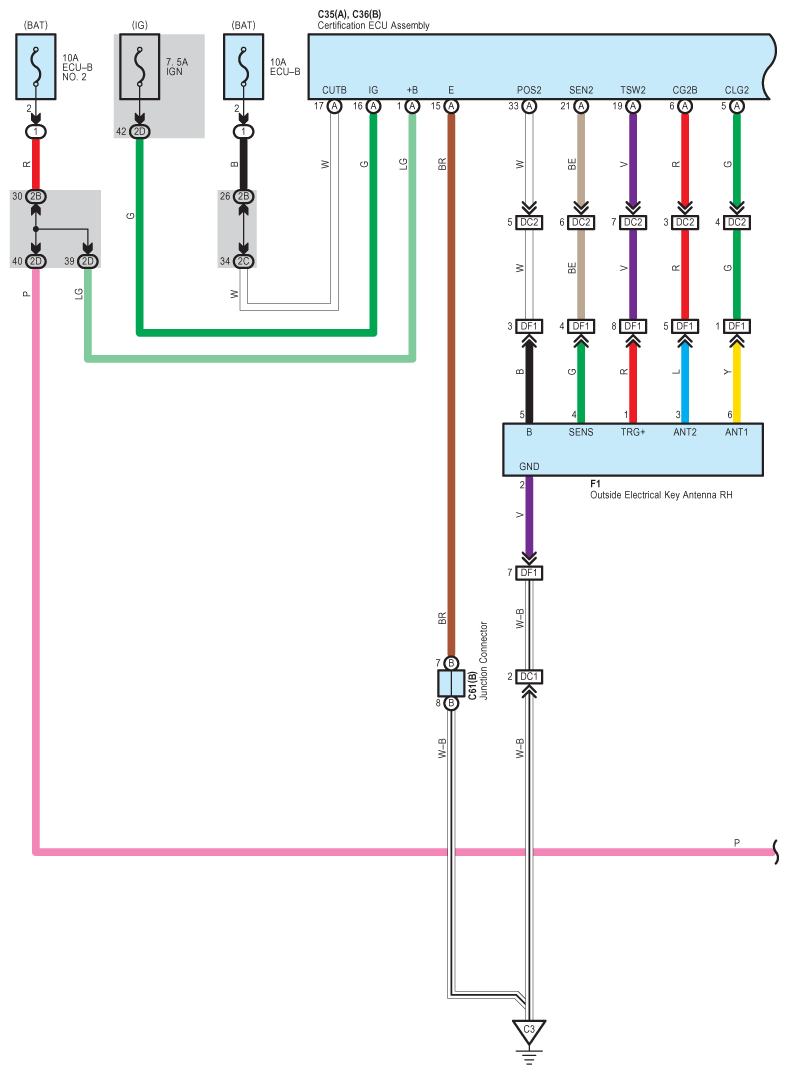

Fig 10: Smart Key System - Circuit Diagram (10 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

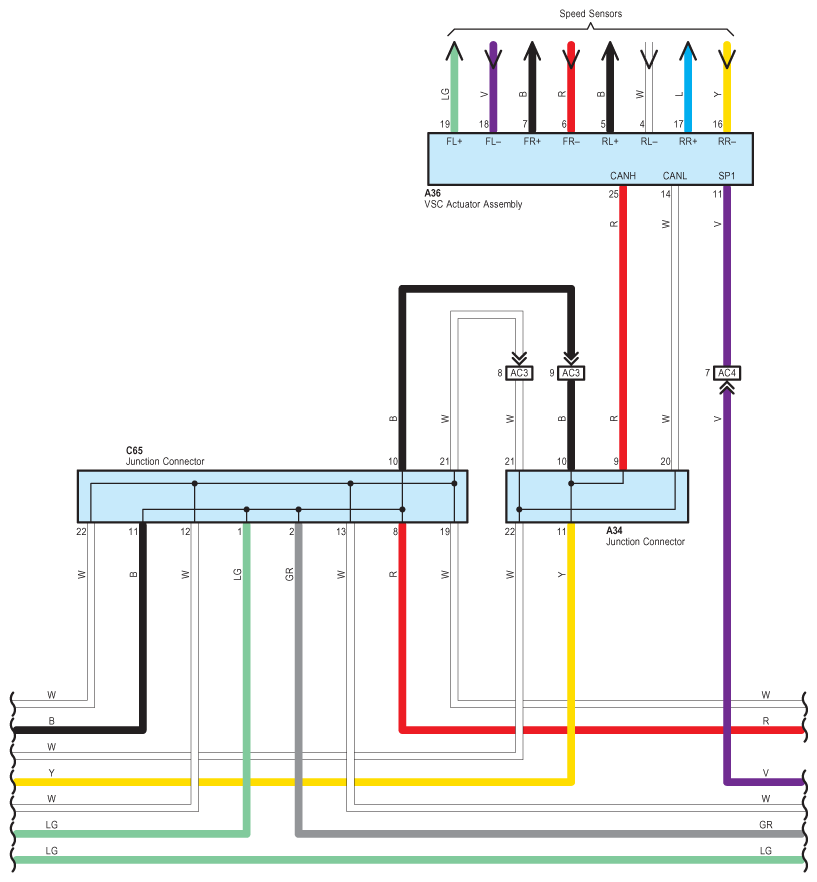

Fig 11: Smart Key System - Circuit Diagram (11 Of 15)

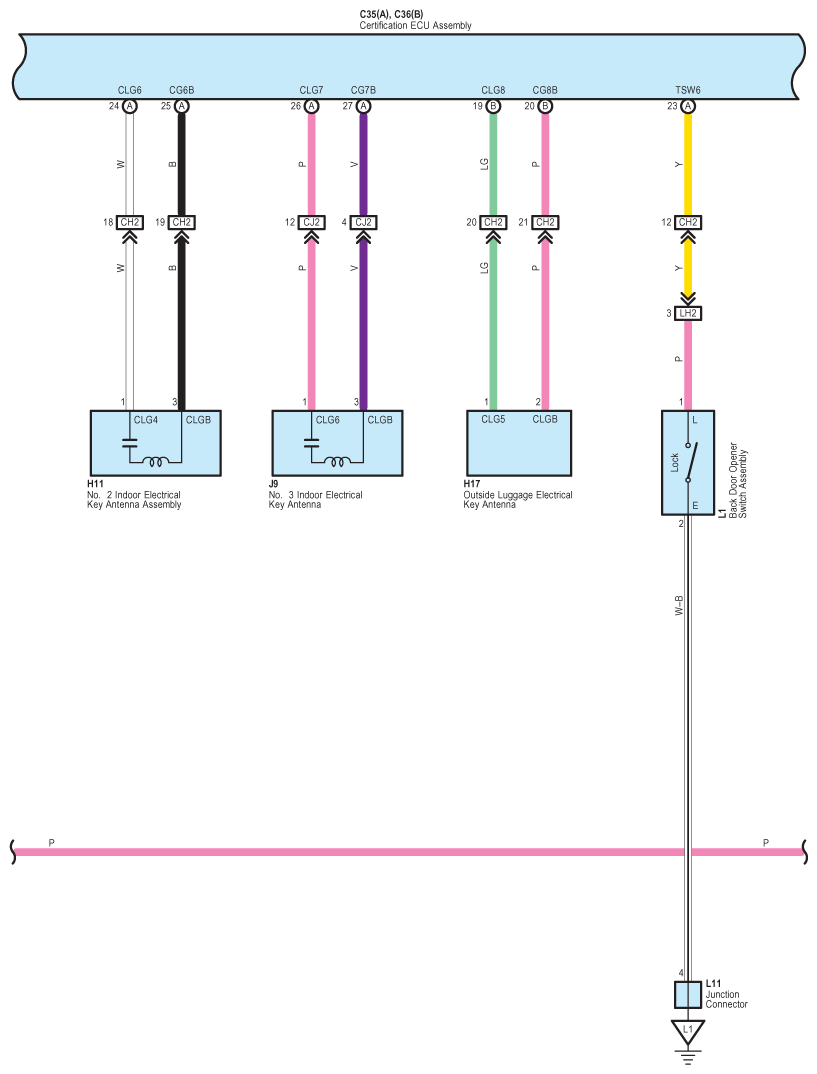

Fig 12: Smart Key System - Circuit Diagram (12 Of 15)

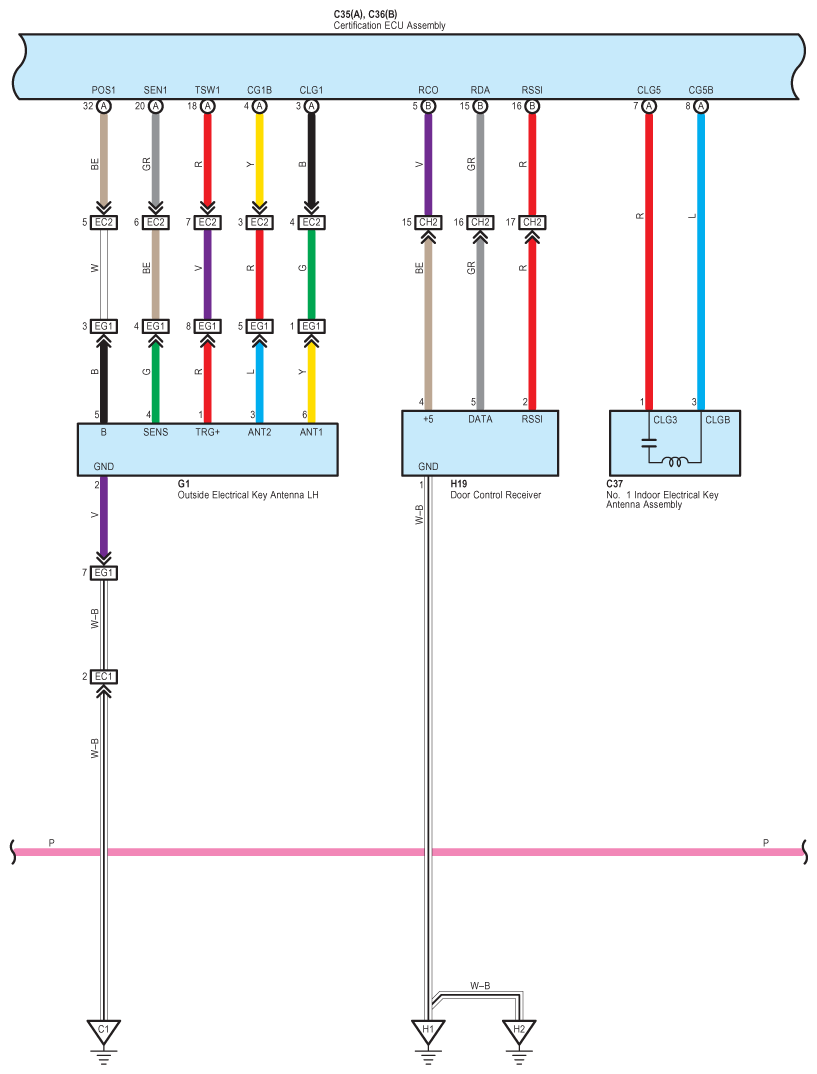

Fig 13: Smart Key System - Circuit Diagram (13 Of 15)

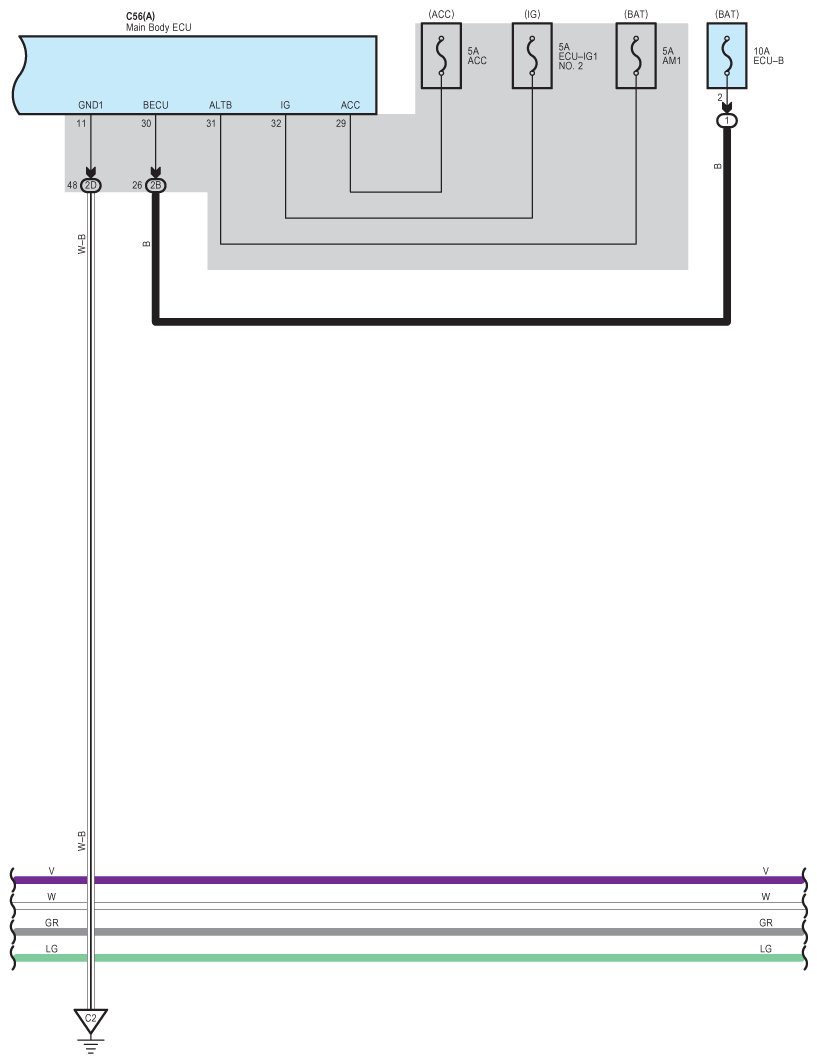

Fig 14: Smart Key System - Circuit Diagram (14 Of 15)

Fig 15: Smart Key System - Circuit Diagram (15 Of 15)
