Cruise Control, Electronic Controlled Transmission and A/T Indicator and Engine Control: Notes

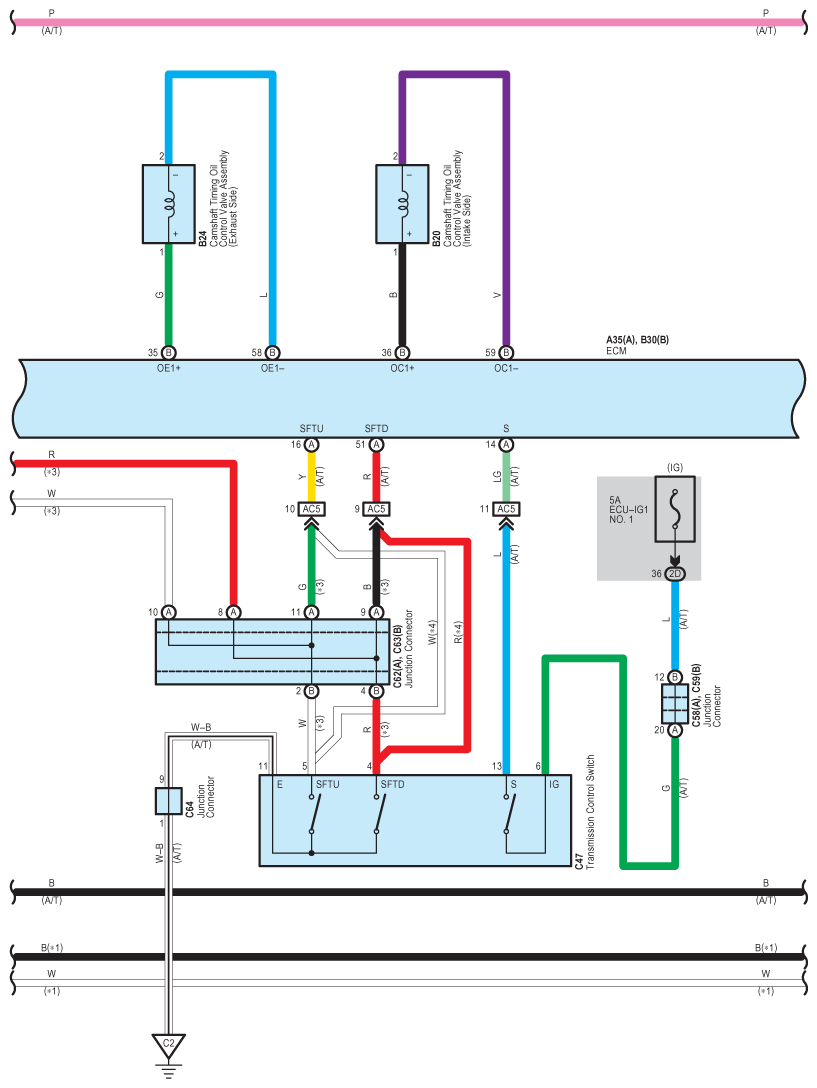

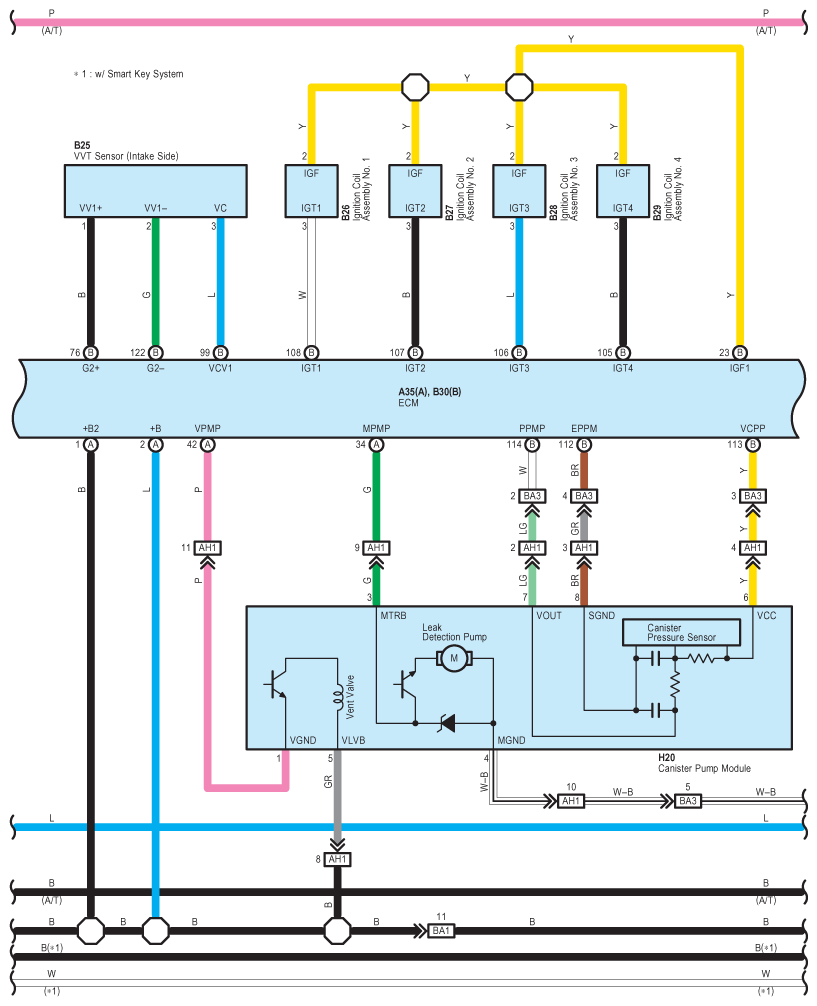

Fig 1: Cruise Control, Electronic Controlled Transmission And A/T Indicator And Engine Control - Circuit Diagram (1 Of 16)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

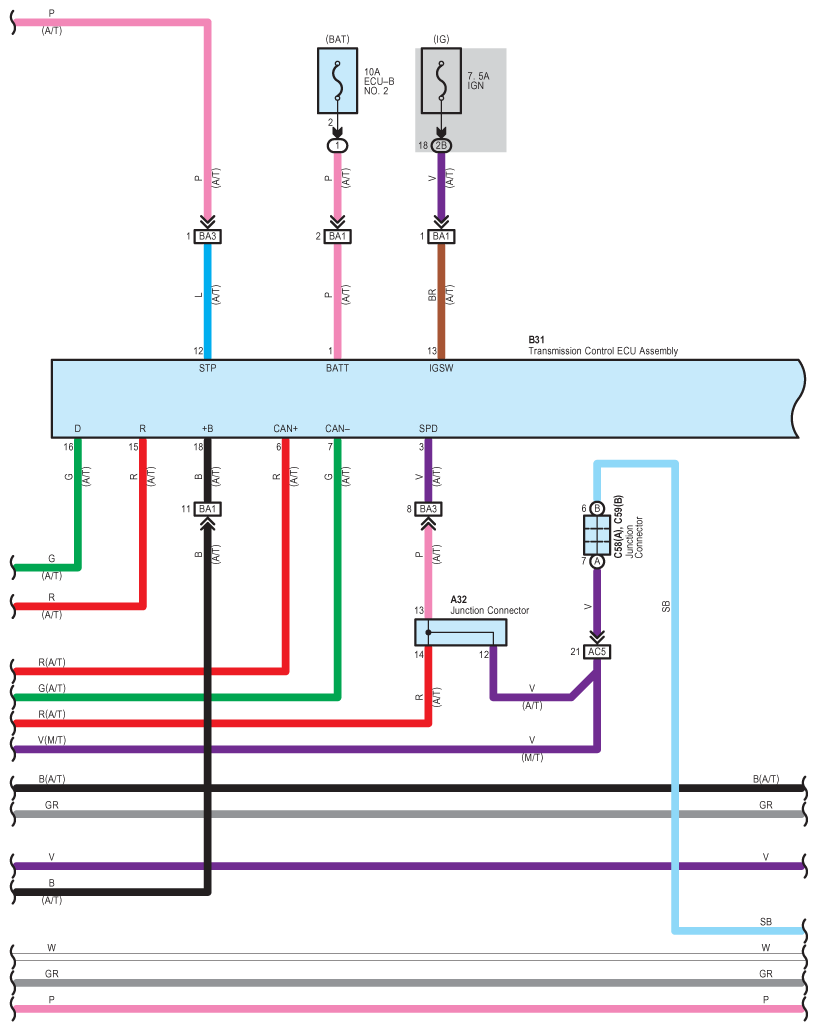

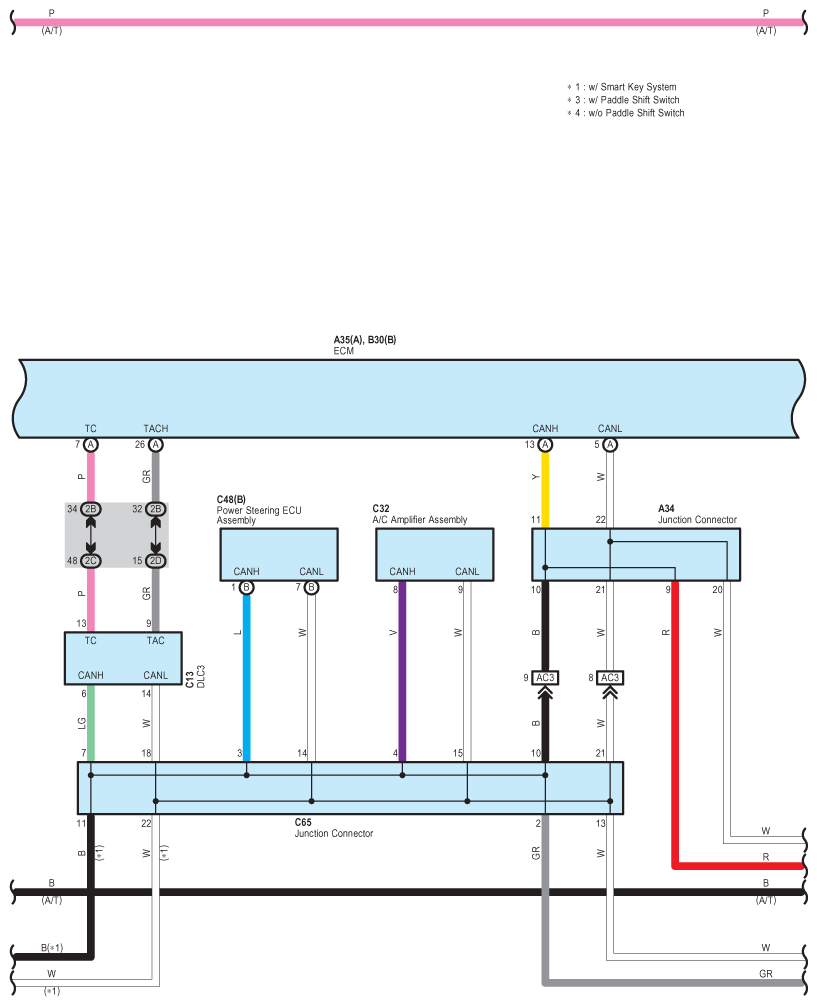

Fig 2: Cruise Control, Electronic Controlled Transmission And A/T Indicator And Engine Control - Circuit Diagram (2 Of 16)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

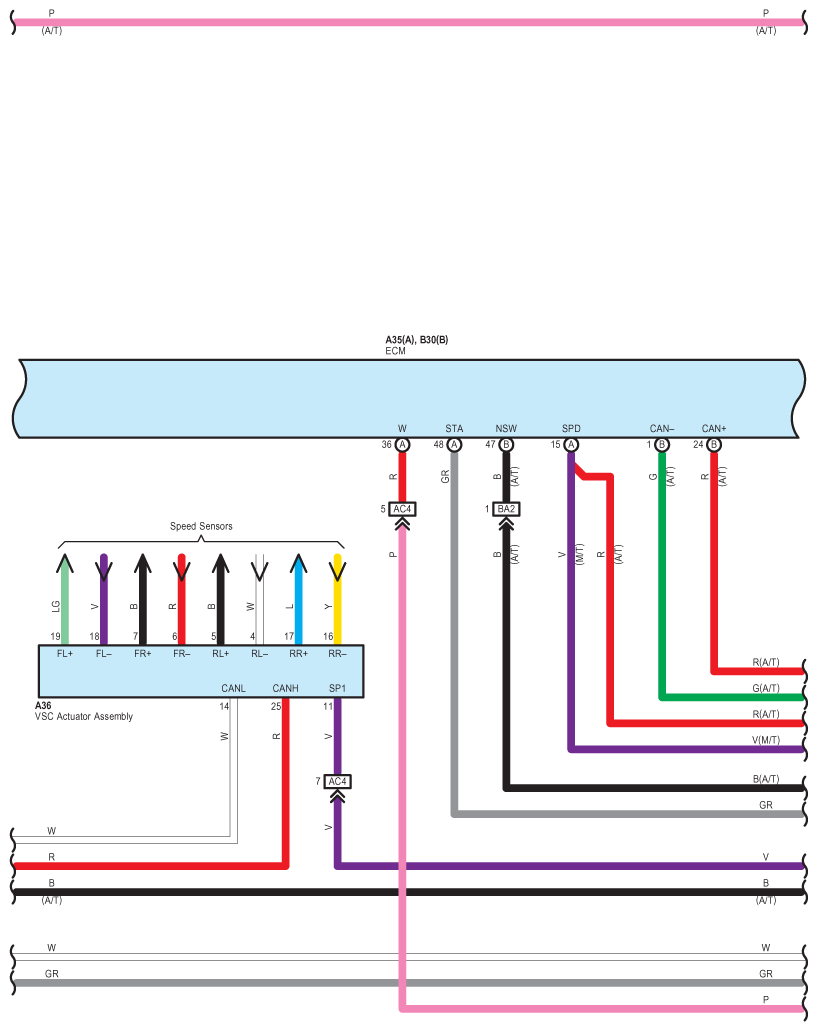

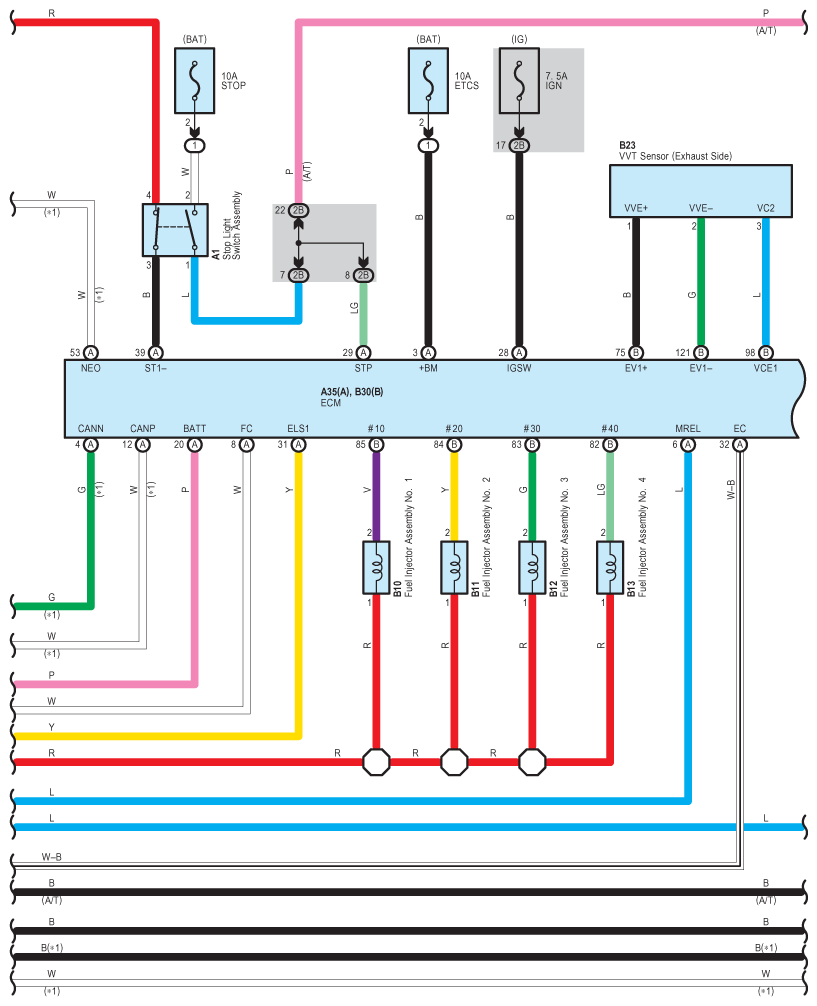

Fig 3: Cruise Control, Electronic Controlled Transmission And A/T Indicator And Engine Control - Circuit Diagram (3 Of 16)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

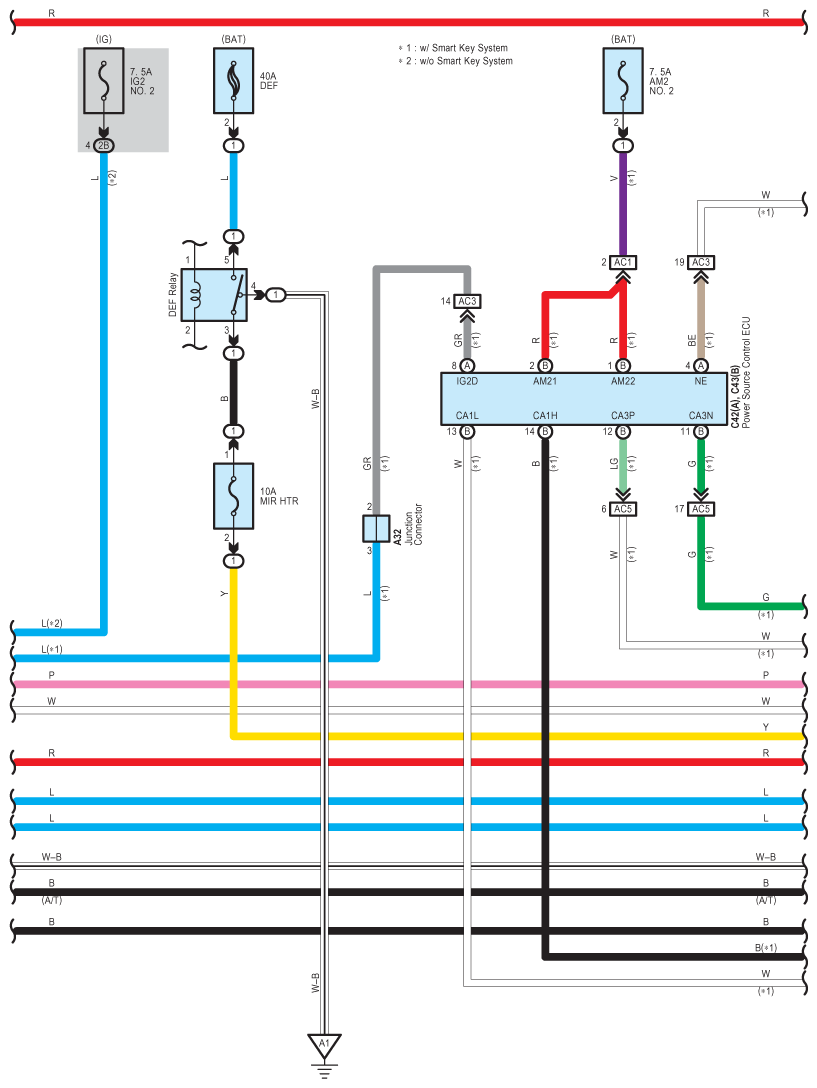

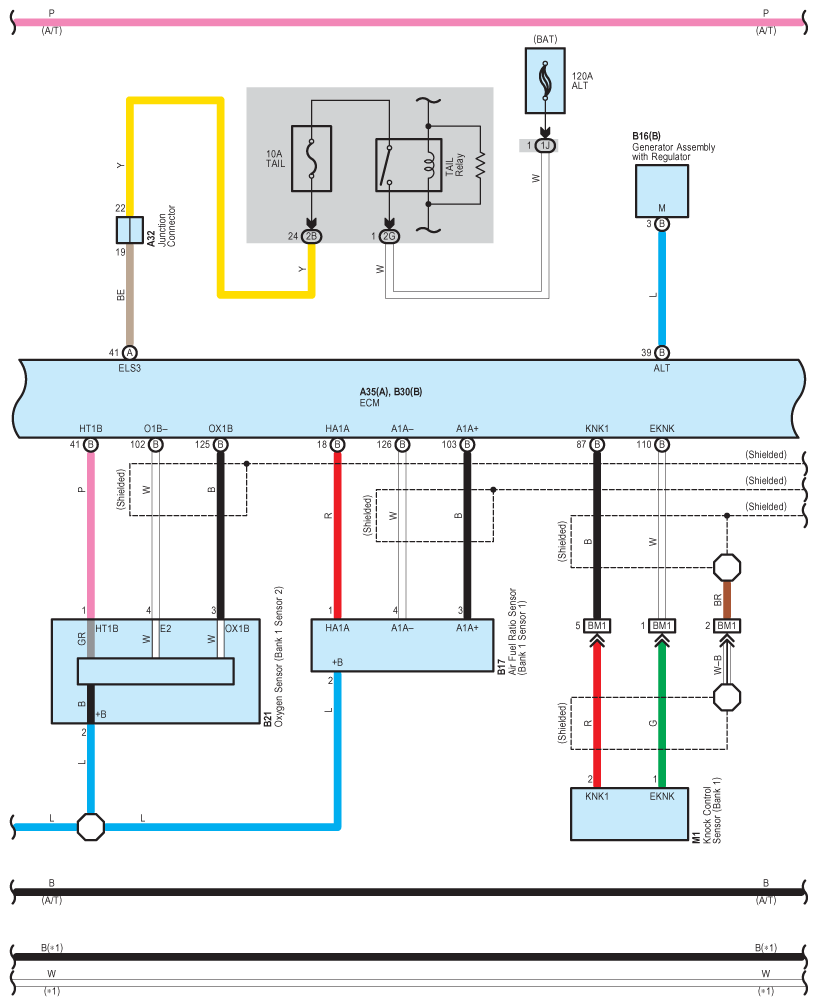

Fig 4: Cruise Control, Electronic Controlled Transmission And A/T Indicator And Engine Control - Circuit Diagram (4 Of 16)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

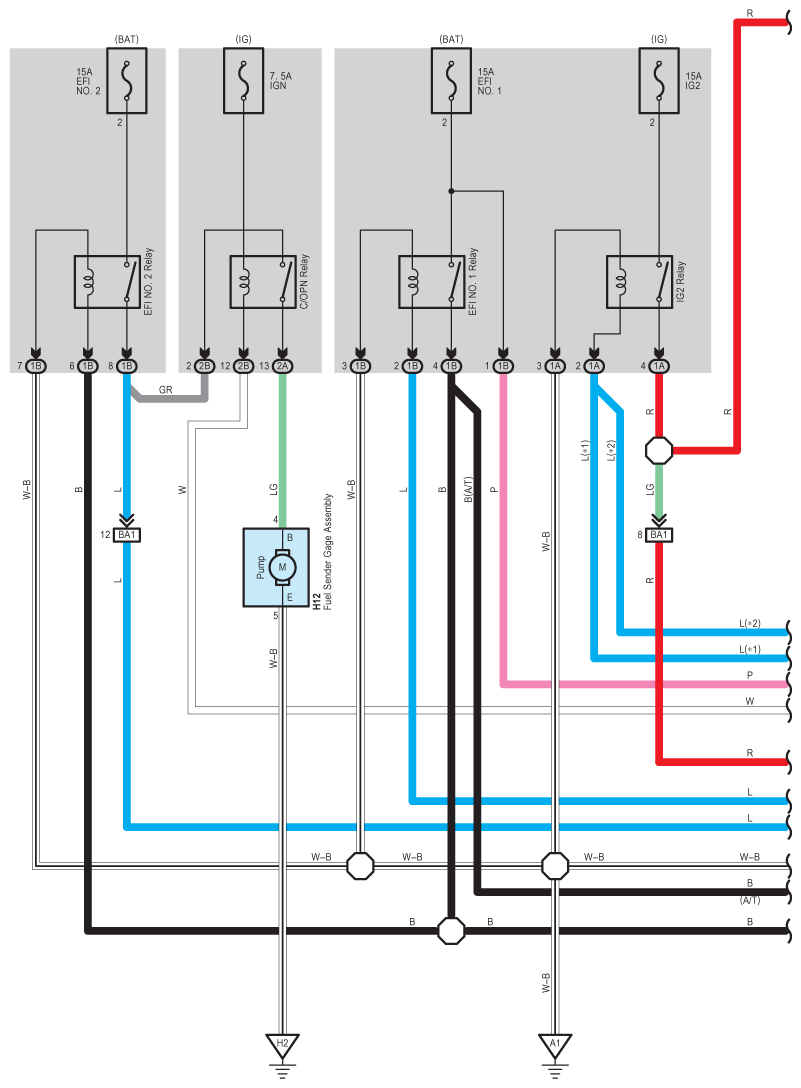

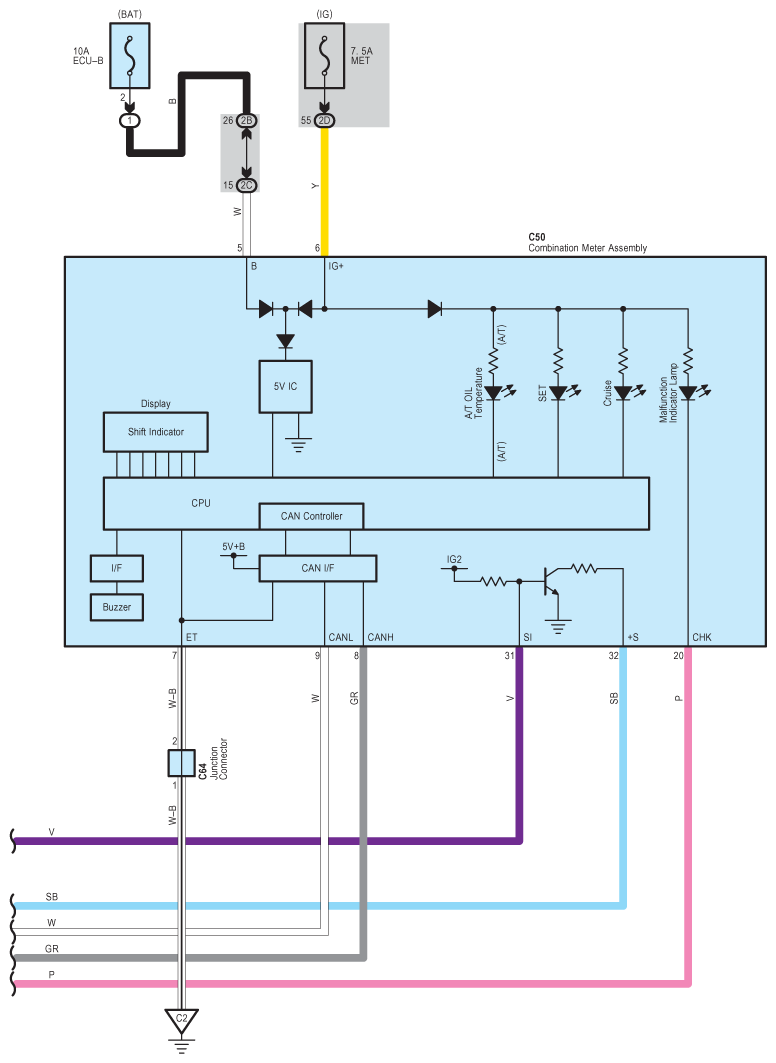

Fig 5: Cruise Control, Electronic Controlled Transmission And A/T Indicator And Engine Control - Circuit Diagram (5 Of 16)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

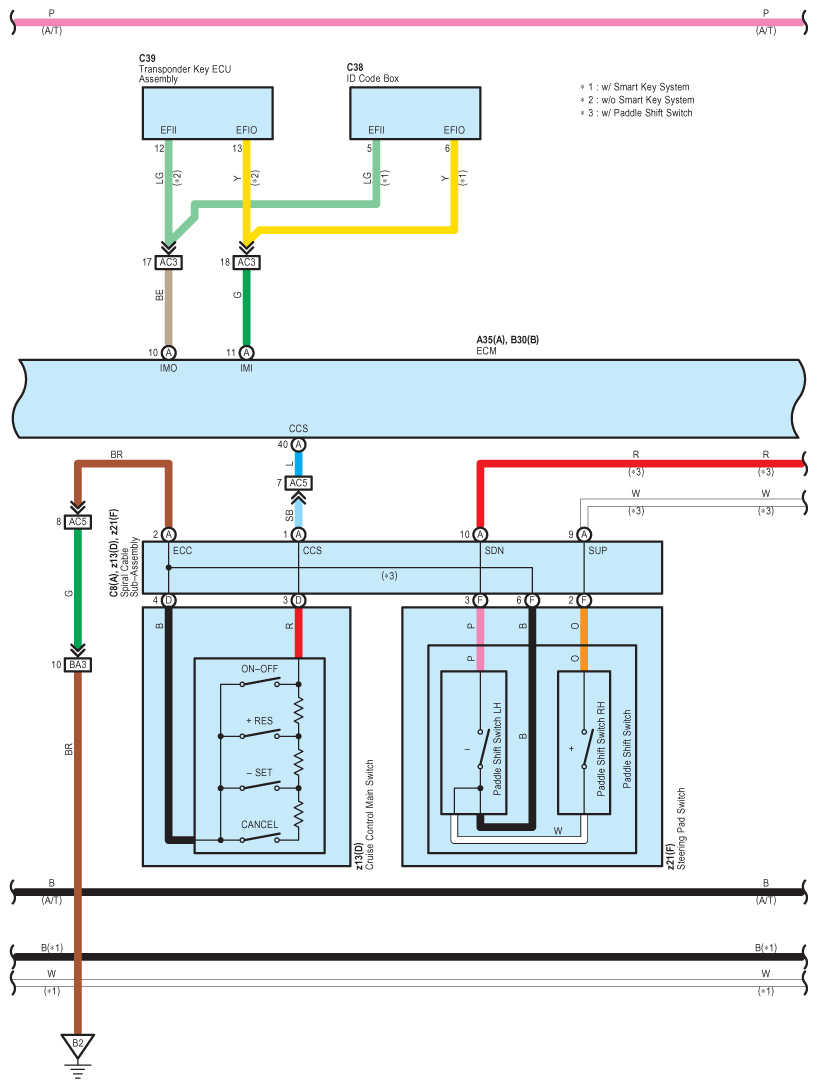

Fig 6: Cruise Control, Electronic Controlled Transmission And A/T Indicator And Engine Control - Circuit Diagram (6 Of 16)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

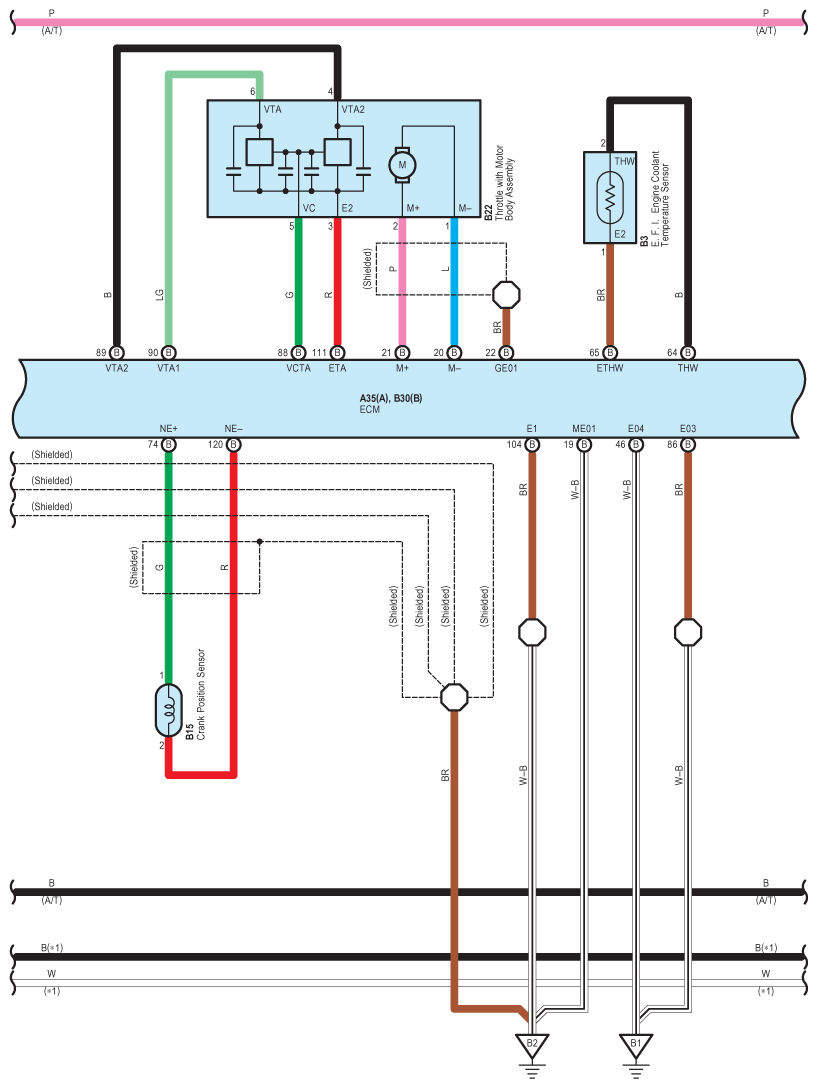

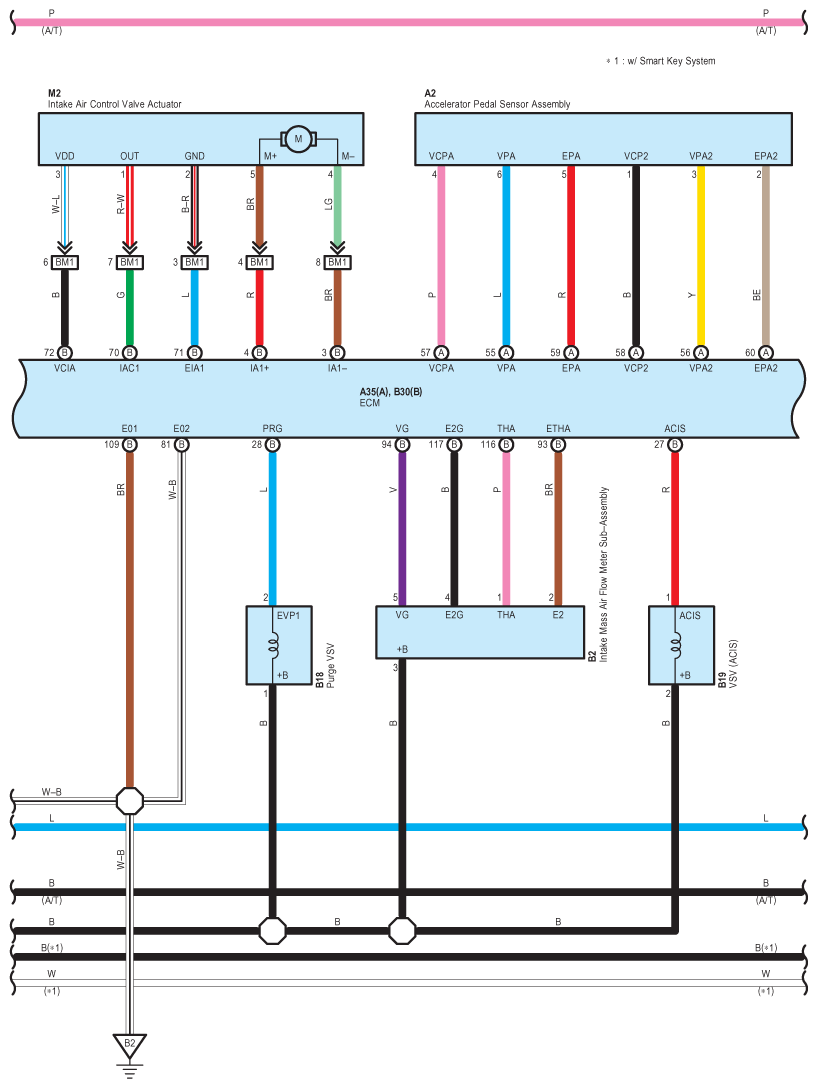

Fig 7: Cruise Control, Electronic Controlled Transmission And A/T Indicator And Engine Control - Circuit Diagram (7 Of 16)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

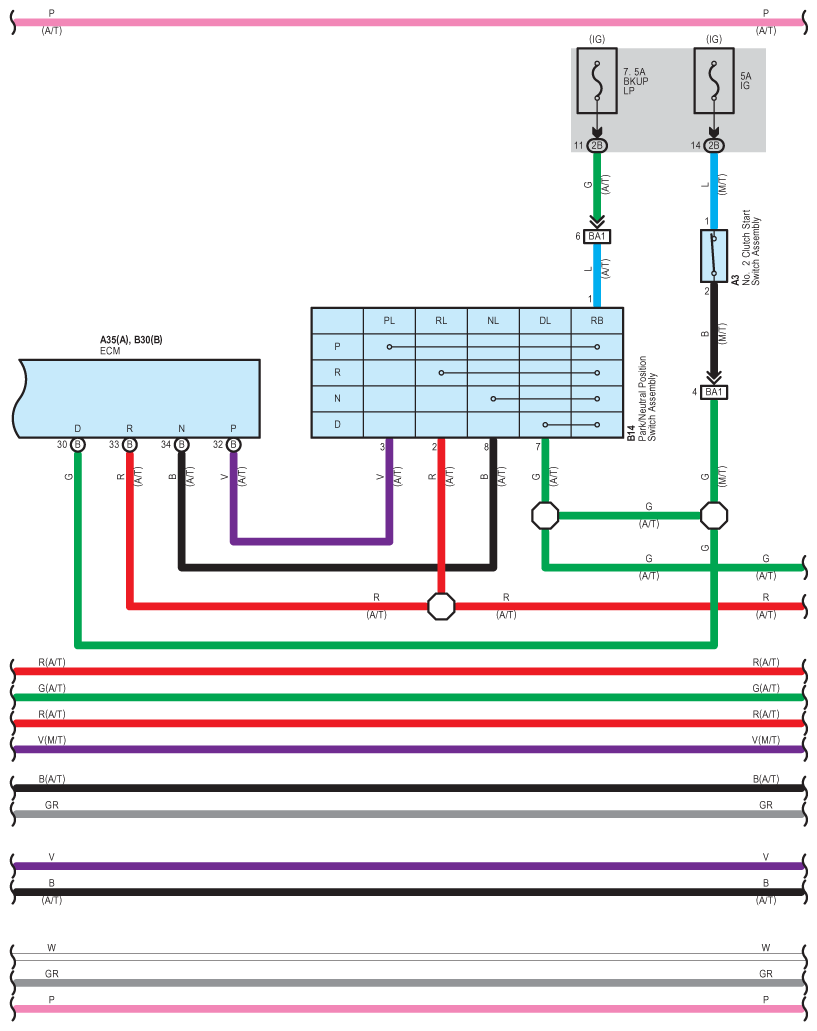

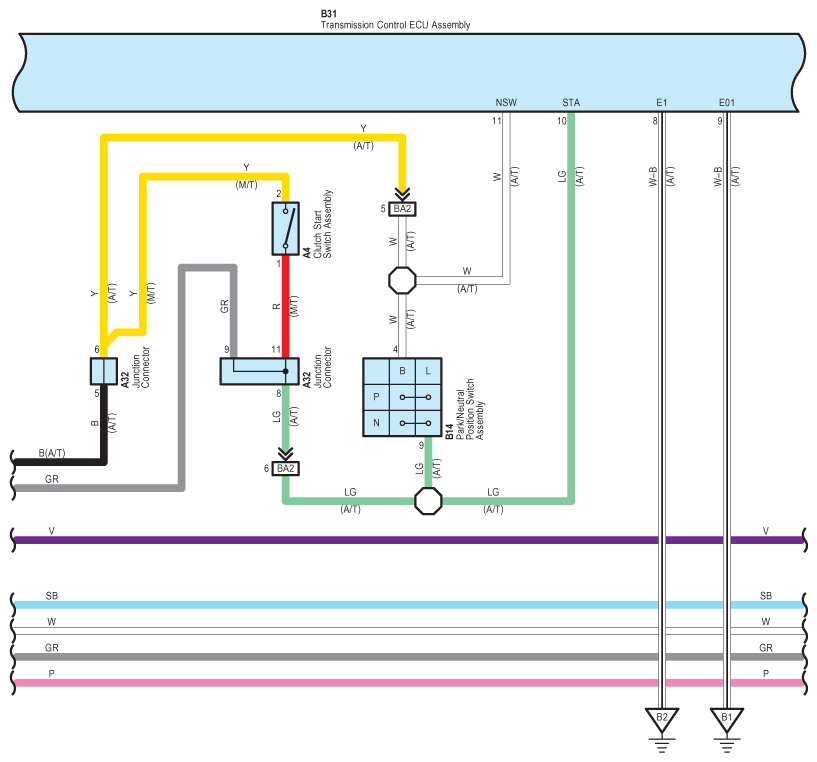

Fig 8: Cruise Control, Electronic Controlled Transmission And A/T Indicator And Engine Control - Circuit Diagram (8 Of 16)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 9: Cruise Control, Electronic Controlled Transmission And A/T Indicator And Engine Control - Circuit Diagram (9 Of 16)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 10: Cruise Control, Electronic Controlled Transmission And A/T Indicator And Engine Control - Circuit Diagram (10 Of 16)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 11: Cruise Control, Electronic Controlled Transmission And A/T Indicator And Engine Control - Circuit Diagram (11 Of 16)

Fig 12: Cruise Control, Electronic Controlled Transmission And A/T Indicator And Engine Control - Circuit Diagram (12 Of 16)

Fig 13: Cruise Control, Electronic Controlled Transmission And A/T Indicator And Engine Control - Circuit Diagram (13 Of 16)

Fig 14: Cruise Control, Electronic Controlled Transmission And A/T Indicator And Engine Control - Circuit Diagram (14 Of 16)

Fig 15: Cruise Control, Electronic Controlled Transmission And A/T Indicator And Engine Control - Circuit Diagram (15 Of 16)

Fig 16: Cruise Control, Electronic Controlled Transmission And A/T Indicator And Engine Control - Circuit Diagram (16 Of 16)
