Starting (w/o Smart Key System): Notes

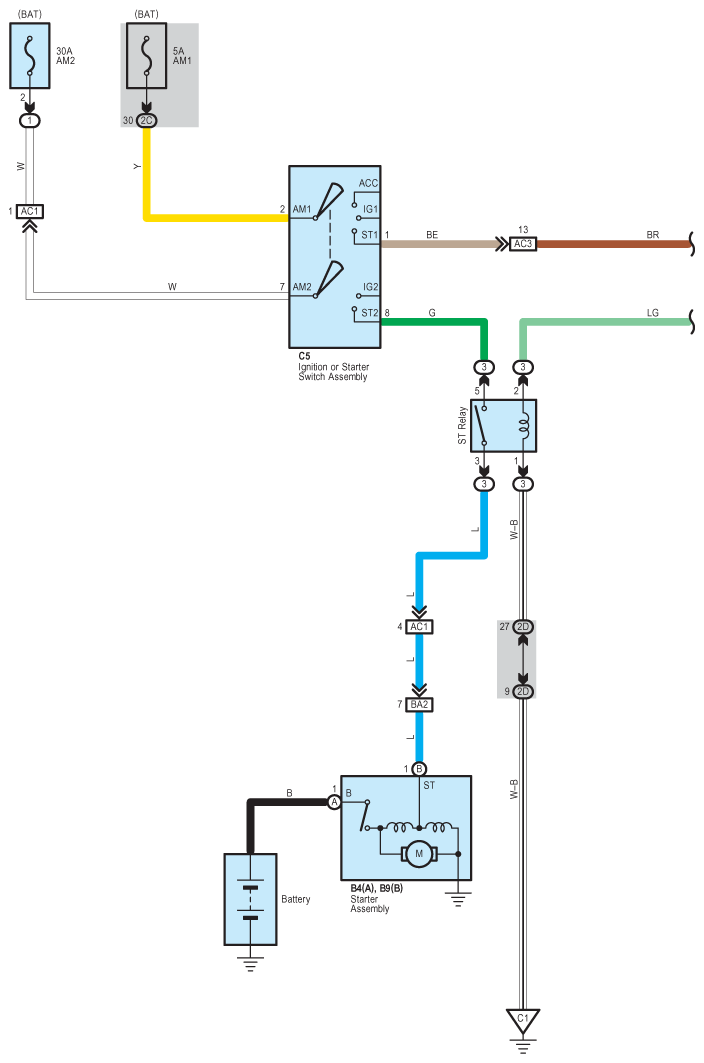

Fig 1: Starting (W/O Smart Key System) - Circuit Diagram (1 Of 2)
G07619506Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

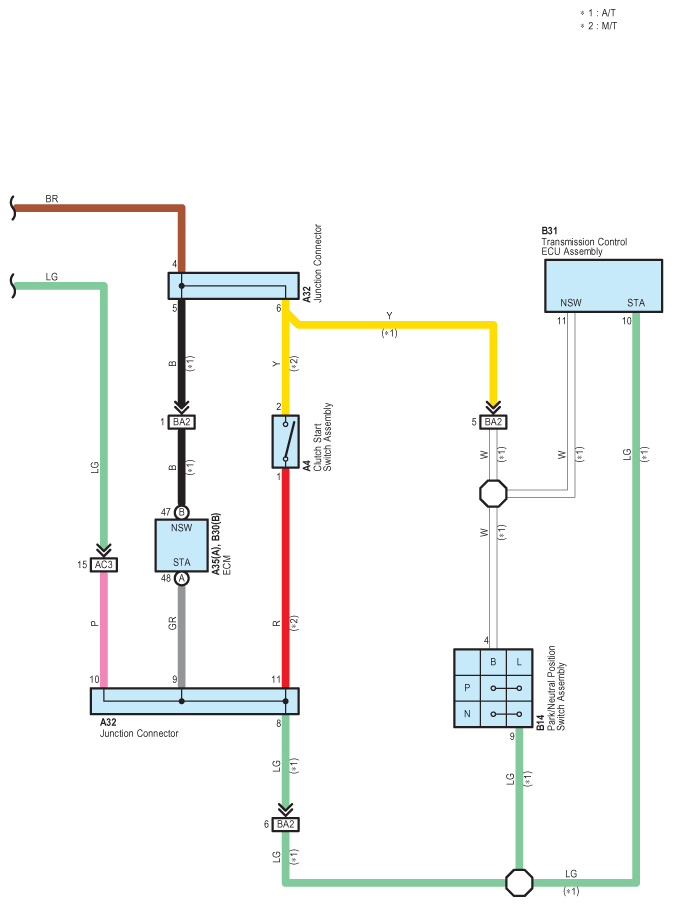

Fig 2: Starting (W/O Smart Key System) - Circuit Diagram (2 Of 2)
G07619507Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
