Engine Control: Notes

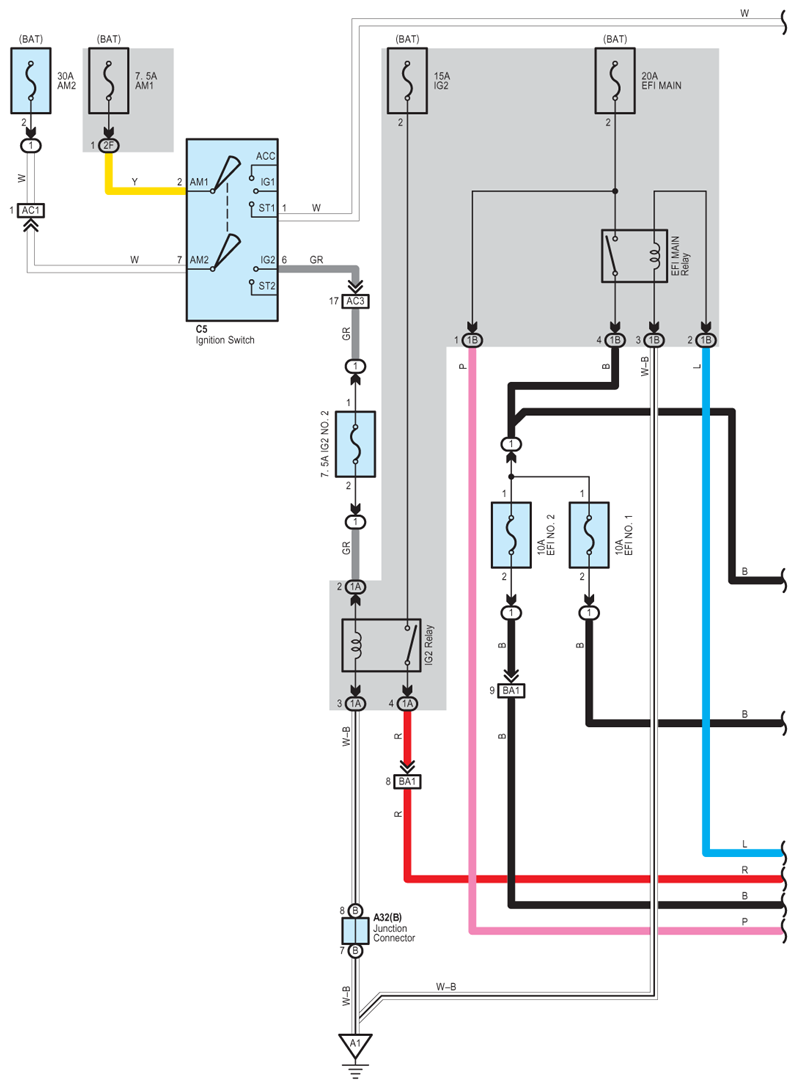

Fig 1: Engine Control - Circuit Diagram (1 Of 9)

G07610243

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

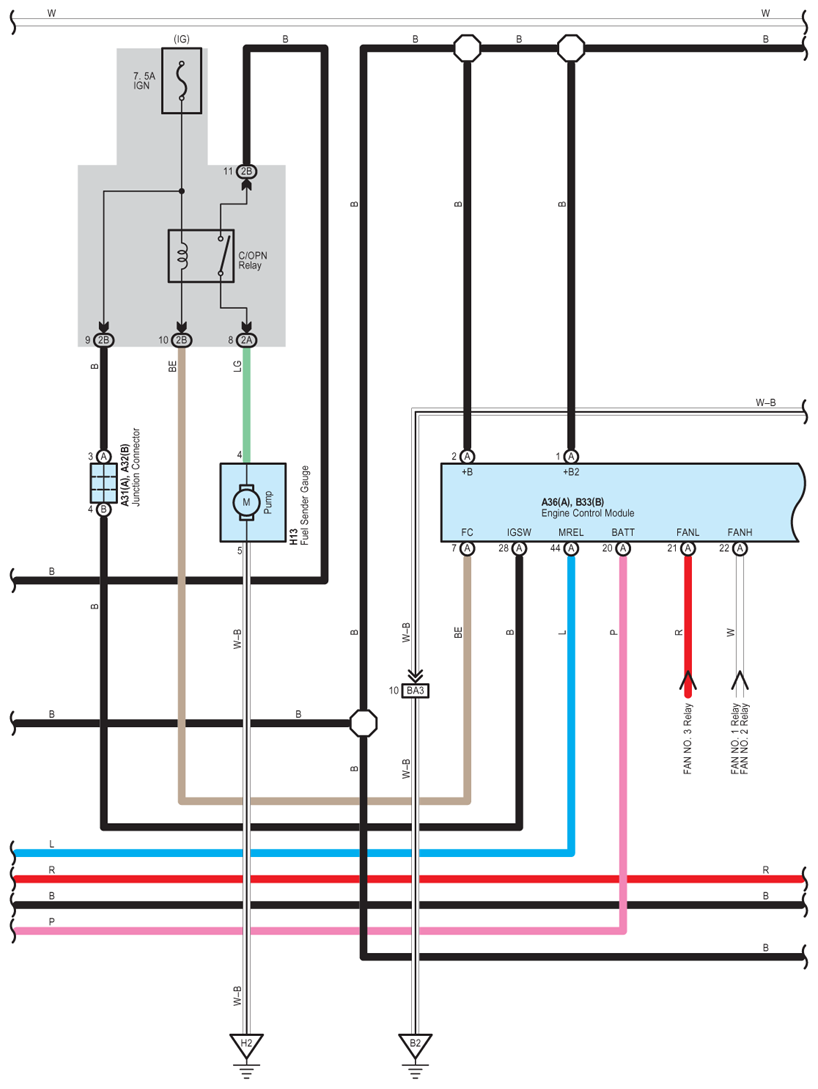

Fig 2: Engine Control - Circuit Diagram (2 Of 9)

G07610244

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

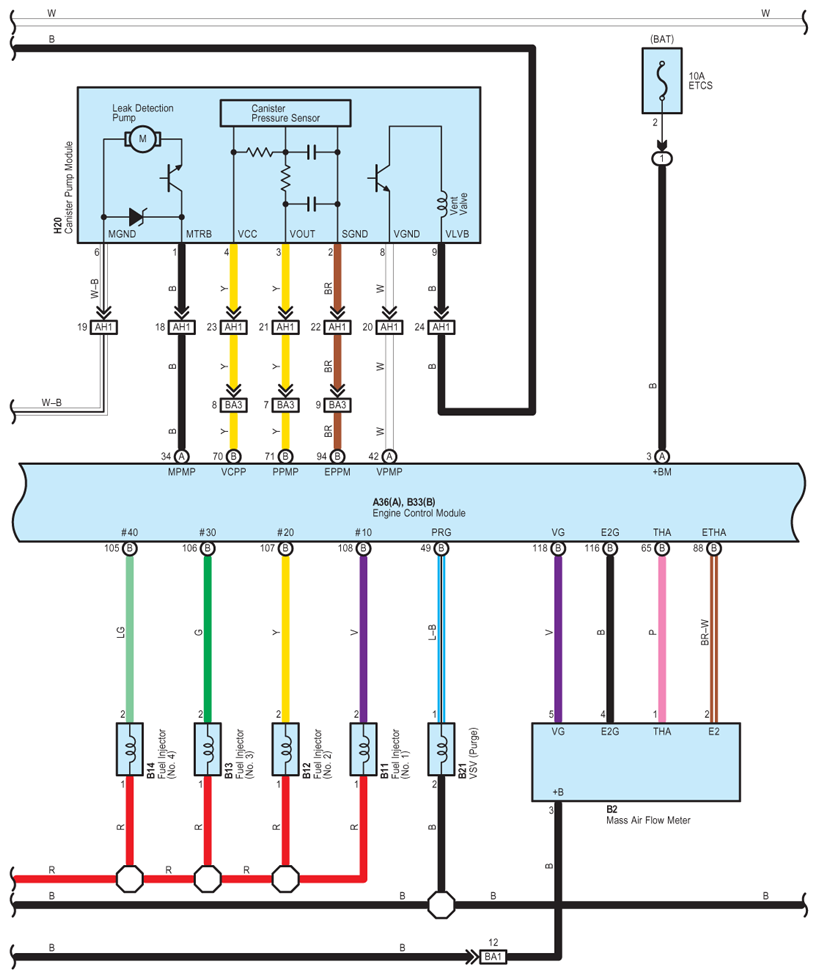

Fig 3: Engine Control - Circuit Diagram (3 Of 9)

G07610245

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

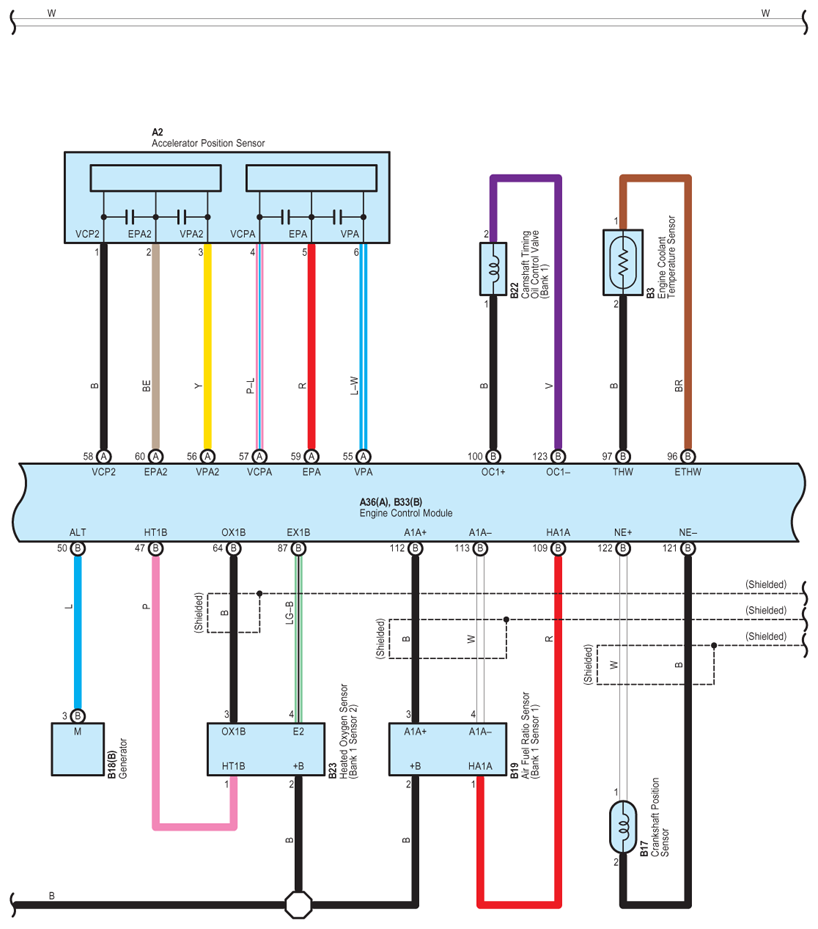

Fig 4: Engine Control - Circuit Diagram (4 Of 9)

G07610246

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

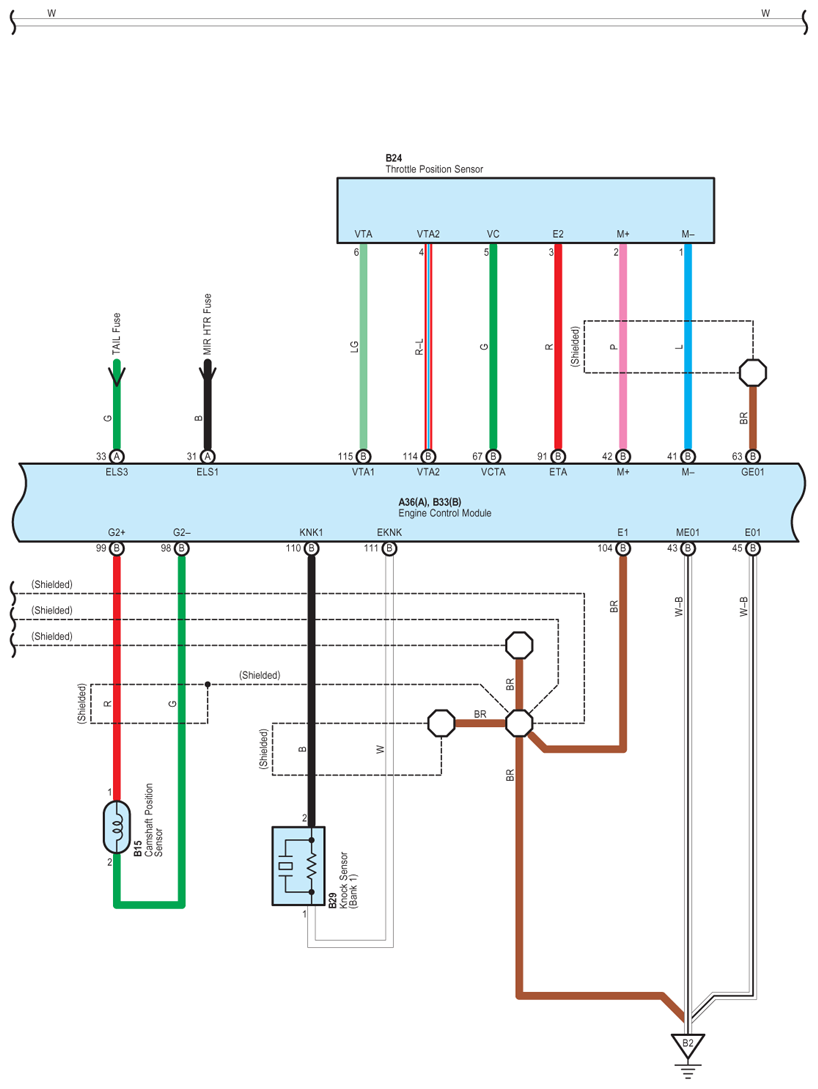

Fig 5: Engine Control - Circuit Diagram (5 Of 9)

G07610247

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

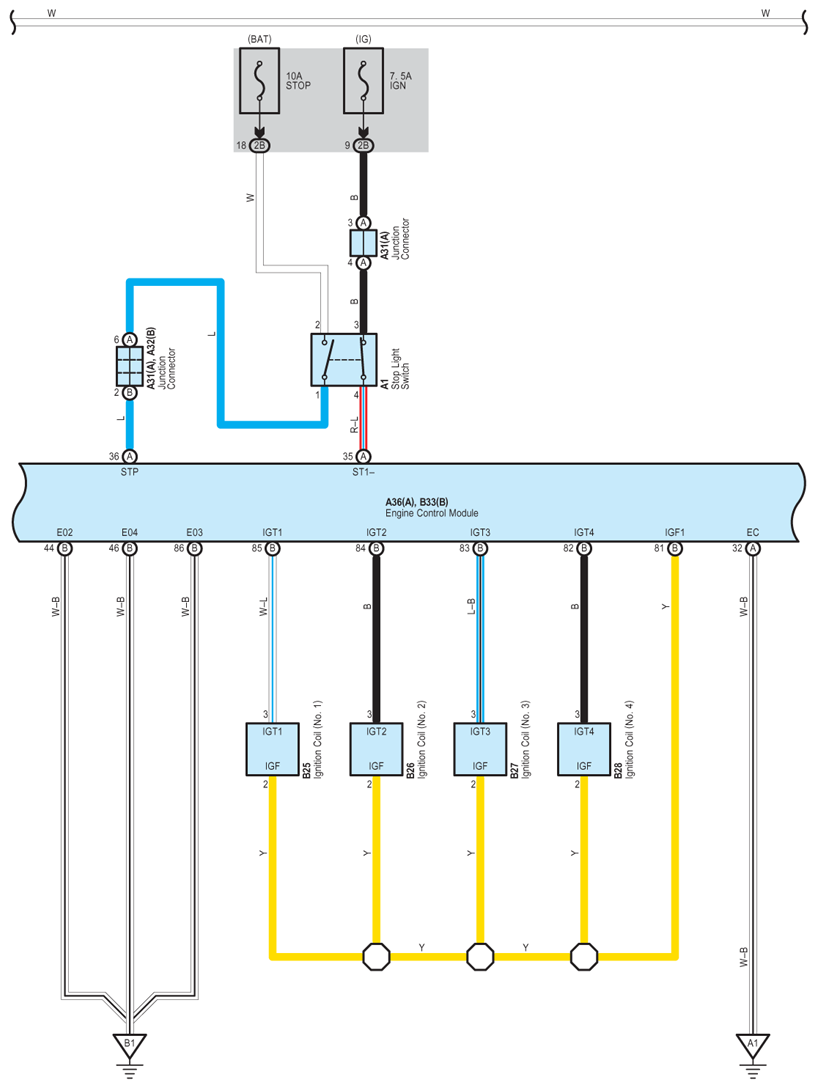

Fig 6: Engine Control - Circuit Diagram (6 Of 9)

G07610248

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

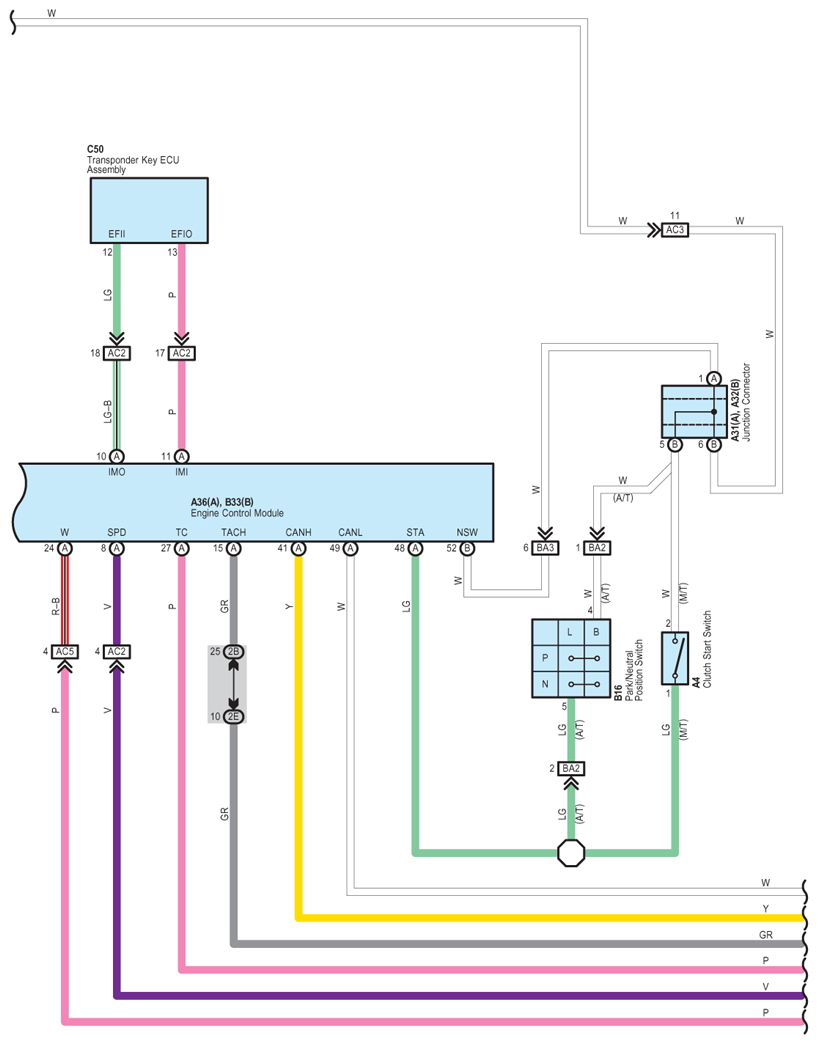

Fig 7: Engine Control - Circuit Diagram (7 Of 9)

G07610249

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

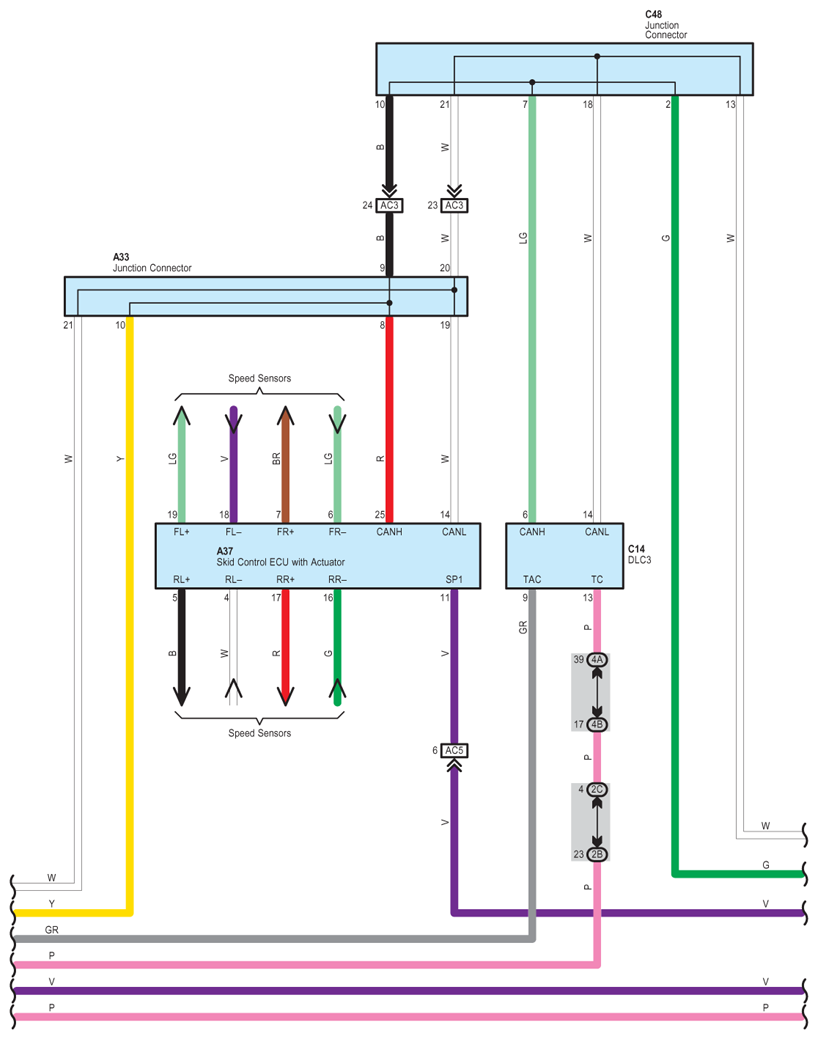

Fig 8: Engine Control - Circuit Diagram (8 Of 9)

G07610250

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

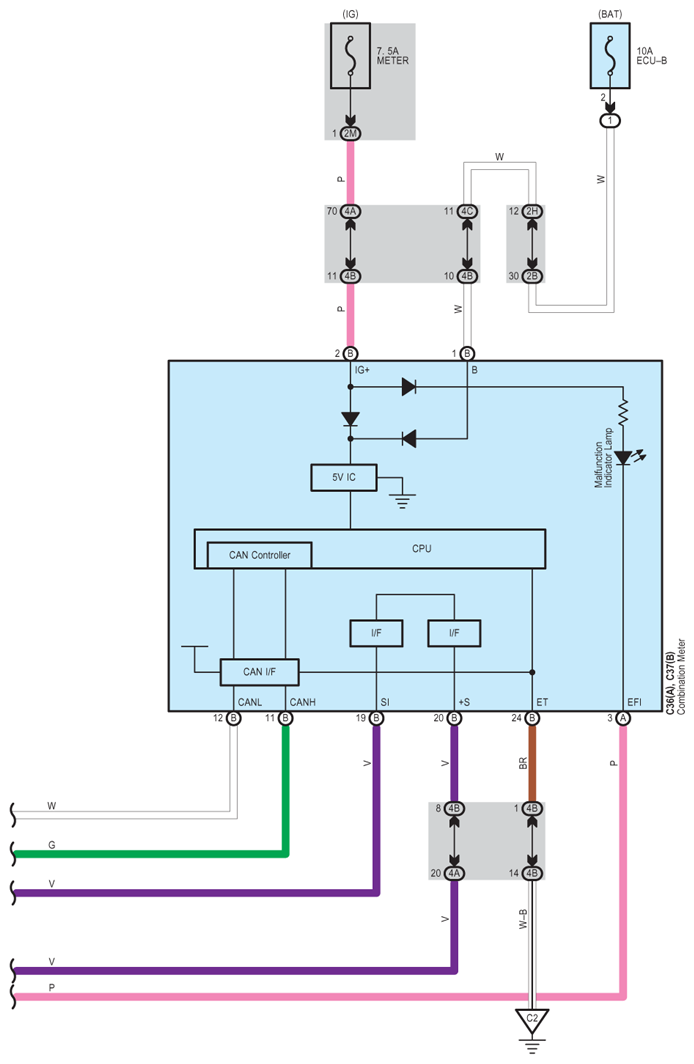

Fig 9: Engine Control - Circuit Diagram (9 Of 9)

G07610251

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
