Integration Relay: Removal: Removal

  1. REMOVE NO. 1 RELAY BLOCK COVER
  2. REMOVE INTEGRATION NO. 2 RELAY

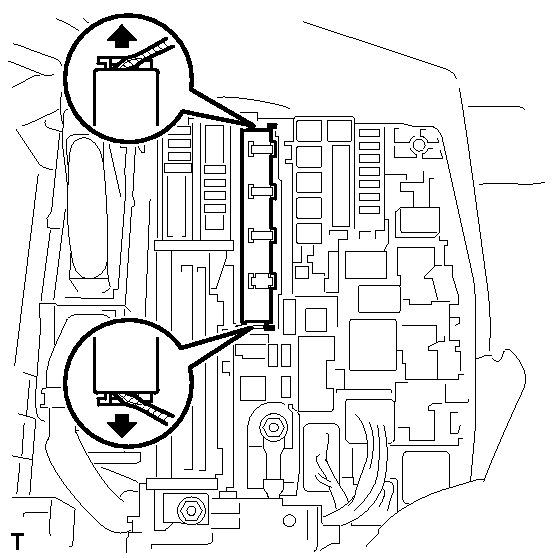

    Fig 1: Identifying Integration Relay Claws
    GTY160941Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Using a screwdriver with its tip wrapped in protective tape, disengage the 2 claws and disconnect the integration relay.
    2. Disconnect the 3 connectors.
