VSC Off Switch: Removal: Removal

  1. REMOVE REAR CONSOLE BOX COVER  . Refer to REMOVAL - Step 3
  2. REMOVE VSC OFF SWITCH
    1. Disengage the 2 claws and remove the VSC off switch.

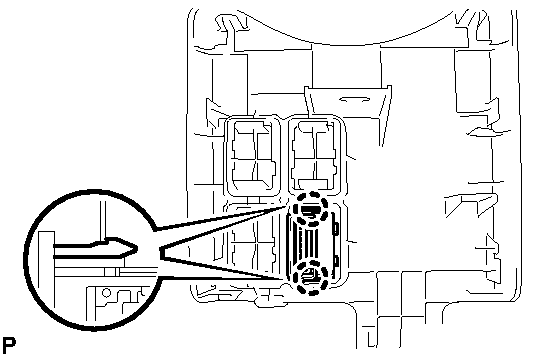

      Fig 1: Identifying VSC Off Switch Claws
      GTY162201Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
