Engine Control: Notes

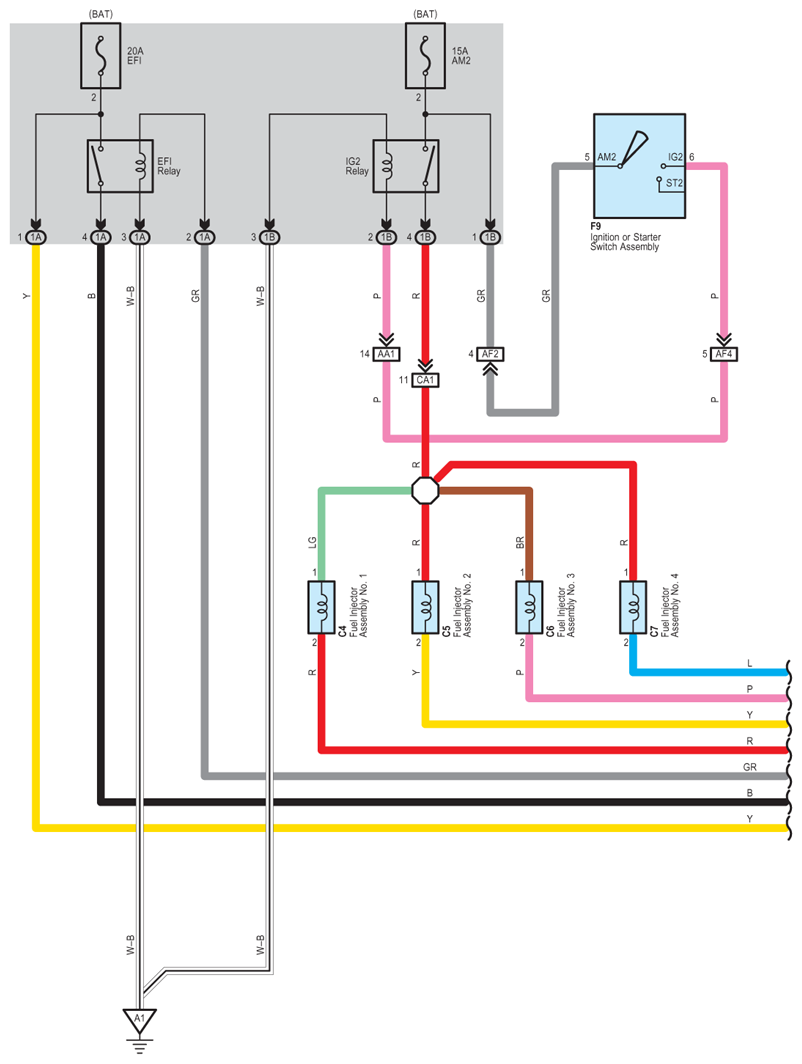

Fig 1: Engine Control - Circuit Diagram (1 Of 10)

G07596082

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

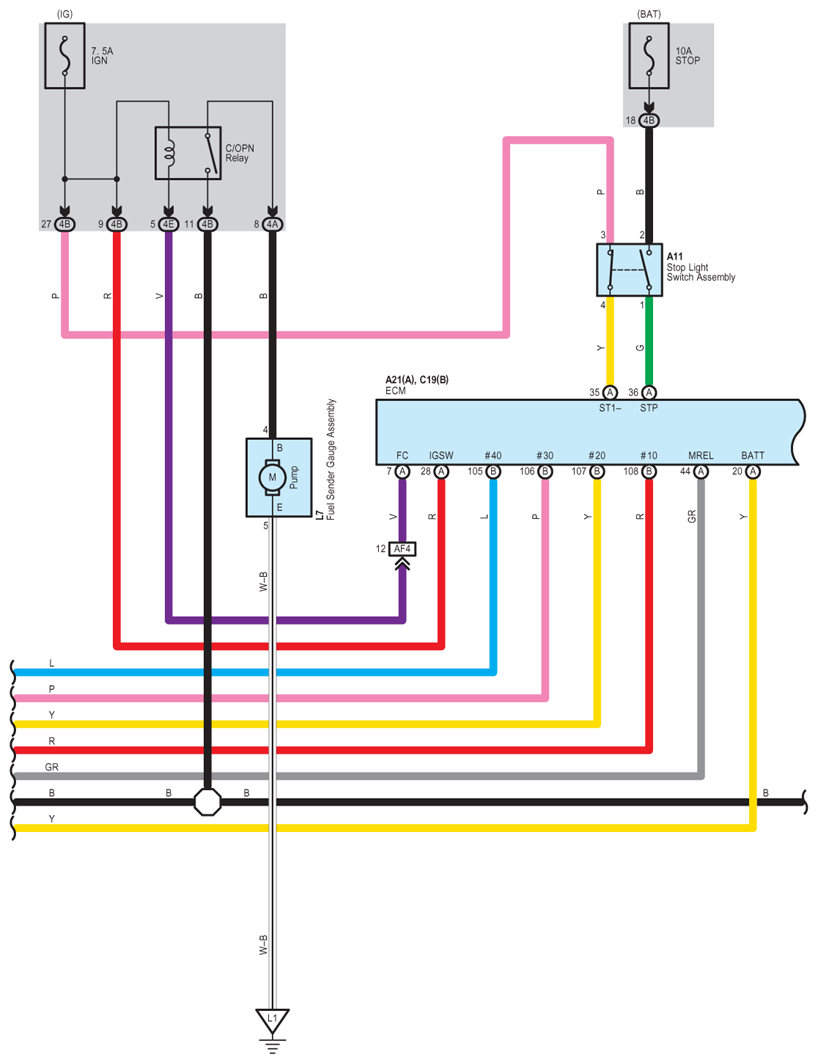

Fig 2: Engine Control - Circuit Diagram (2 Of 10)

G07596083

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

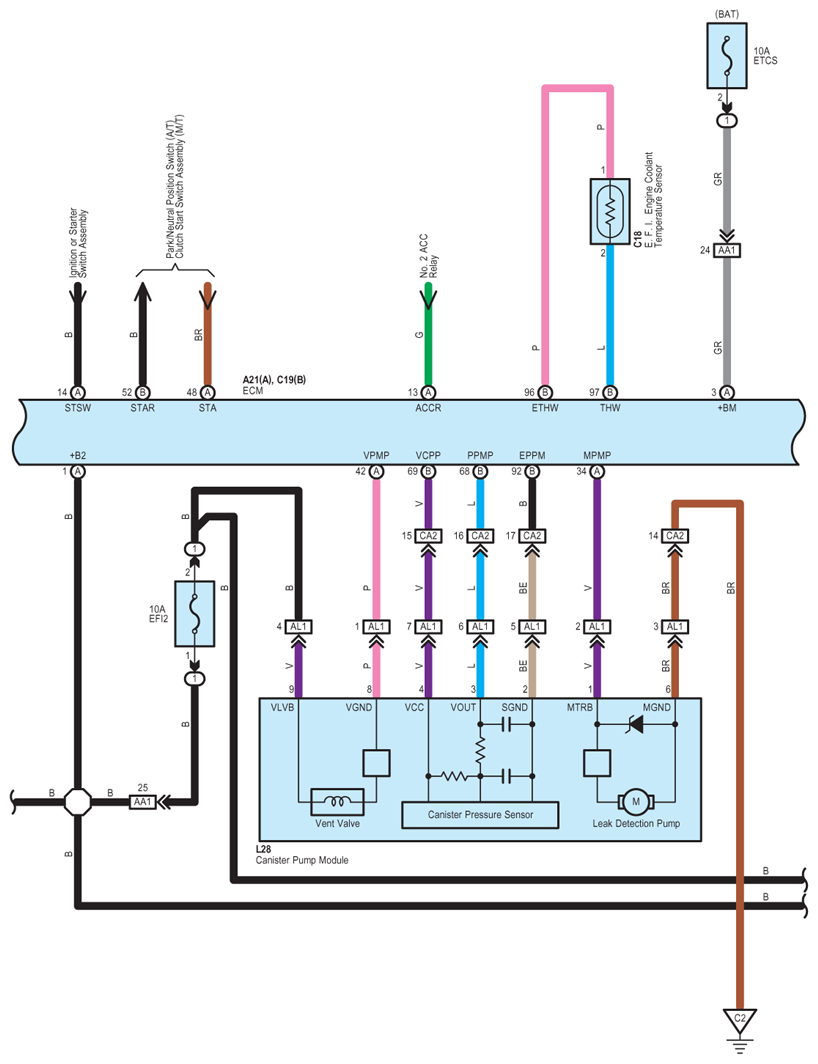

Fig 3: Engine Control - Circuit Diagram (3 Of 10)

G07596084

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

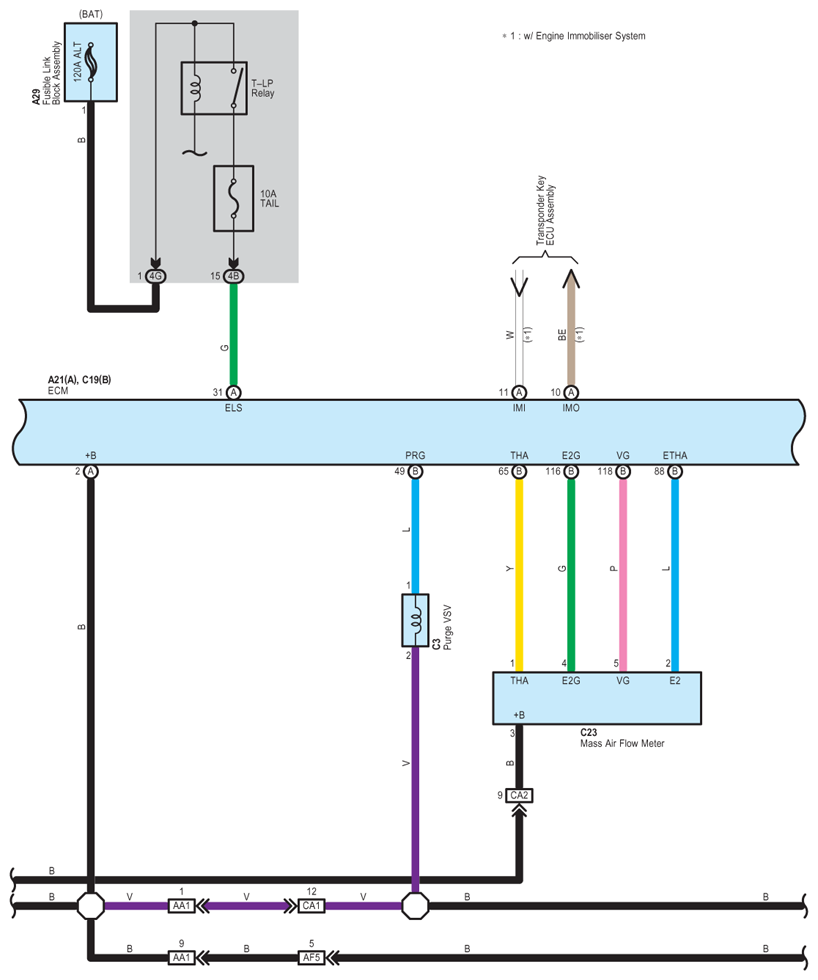

Fig 4: Engine Control - Circuit Diagram (4 Of 10)

G07596085

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

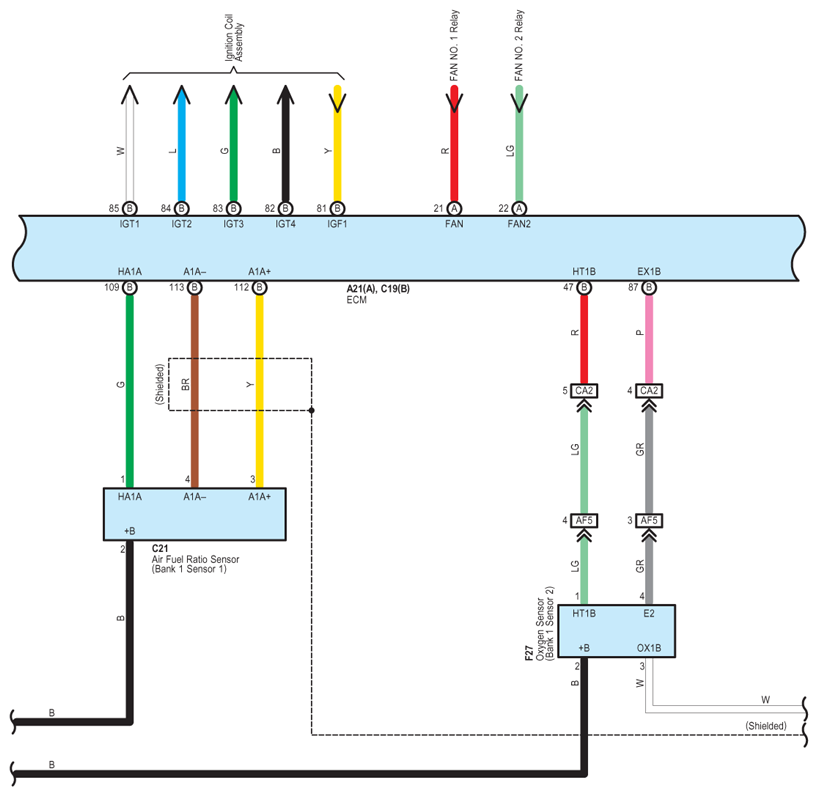

Fig 5: Engine Control - Circuit Diagram (5 Of 10)

G07596086

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

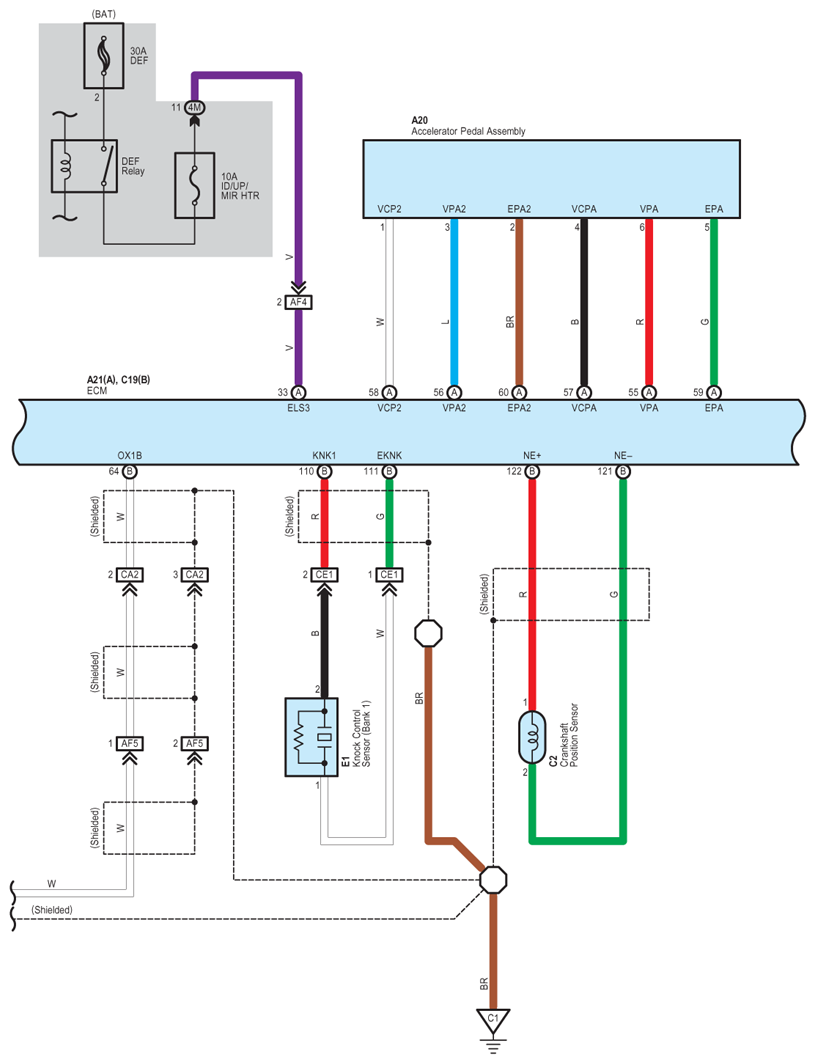

Fig 6: Engine Control - Circuit Diagram (6 Of 10)

G07596087

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

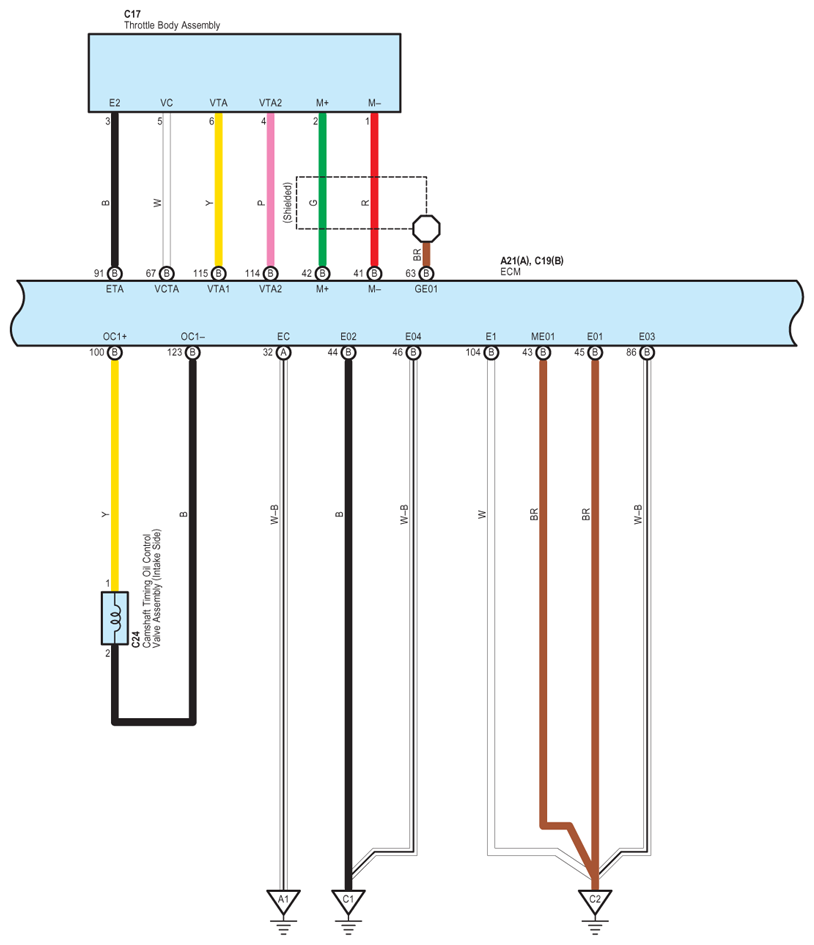

Fig 7: Engine Control - Circuit Diagram (7 Of 10)

G07596088

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

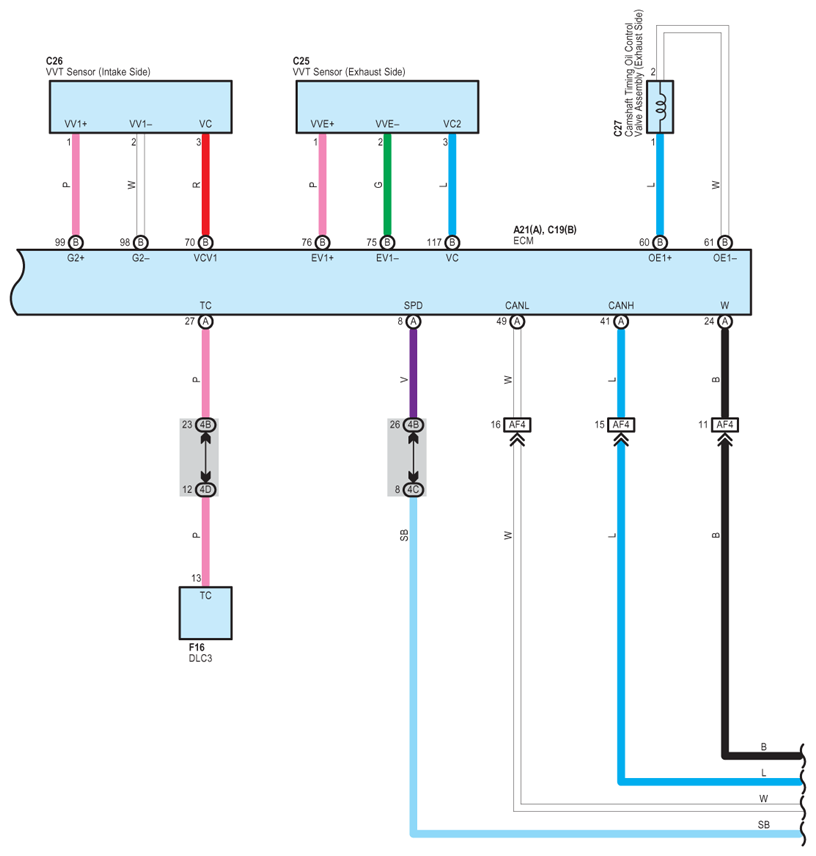

Fig 8: Engine Control - Circuit Diagram (8 Of 10)

G07596089

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 9: Engine Control - Circuit Diagram (9 Of 10)

G07596090

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

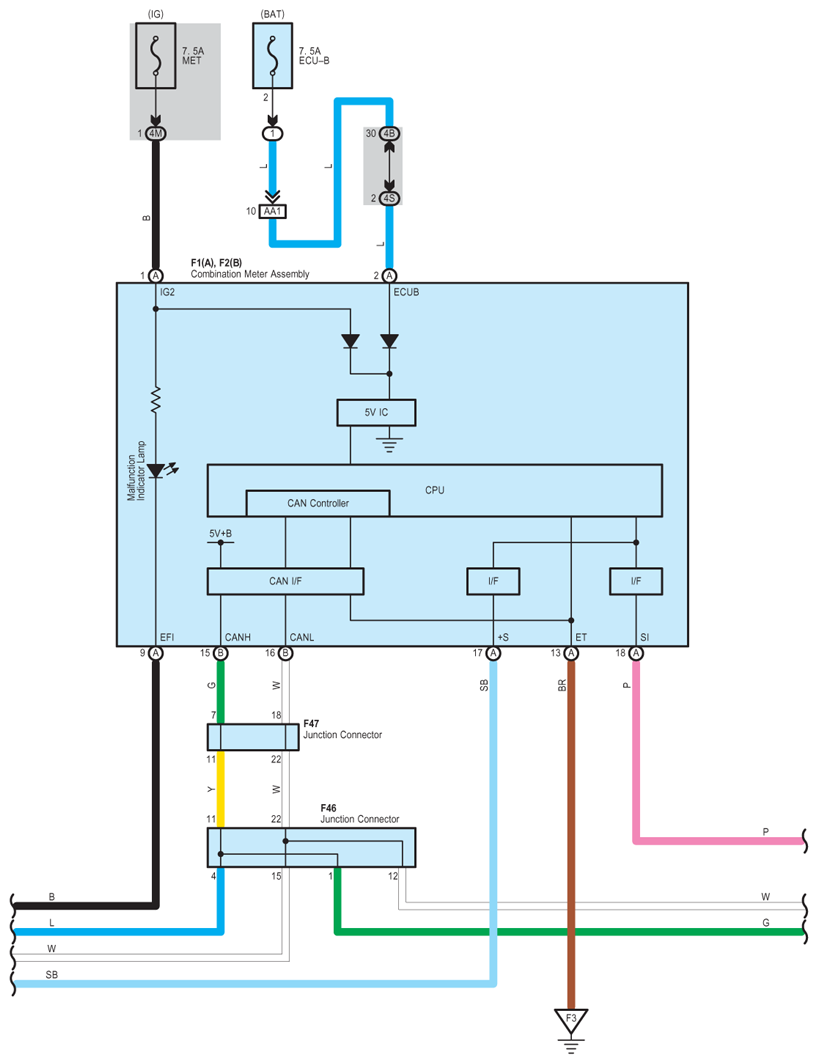

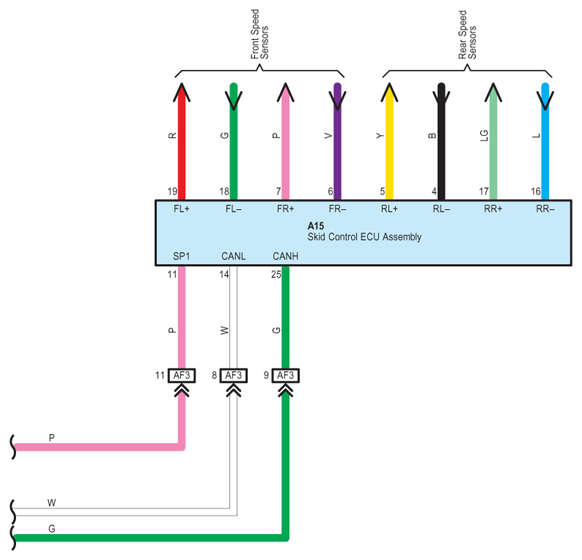

Fig 10: Engine Control - Circuit Diagram (10 Of 10)

G07596091

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
