Key Reminder and Light Reminder: Notes

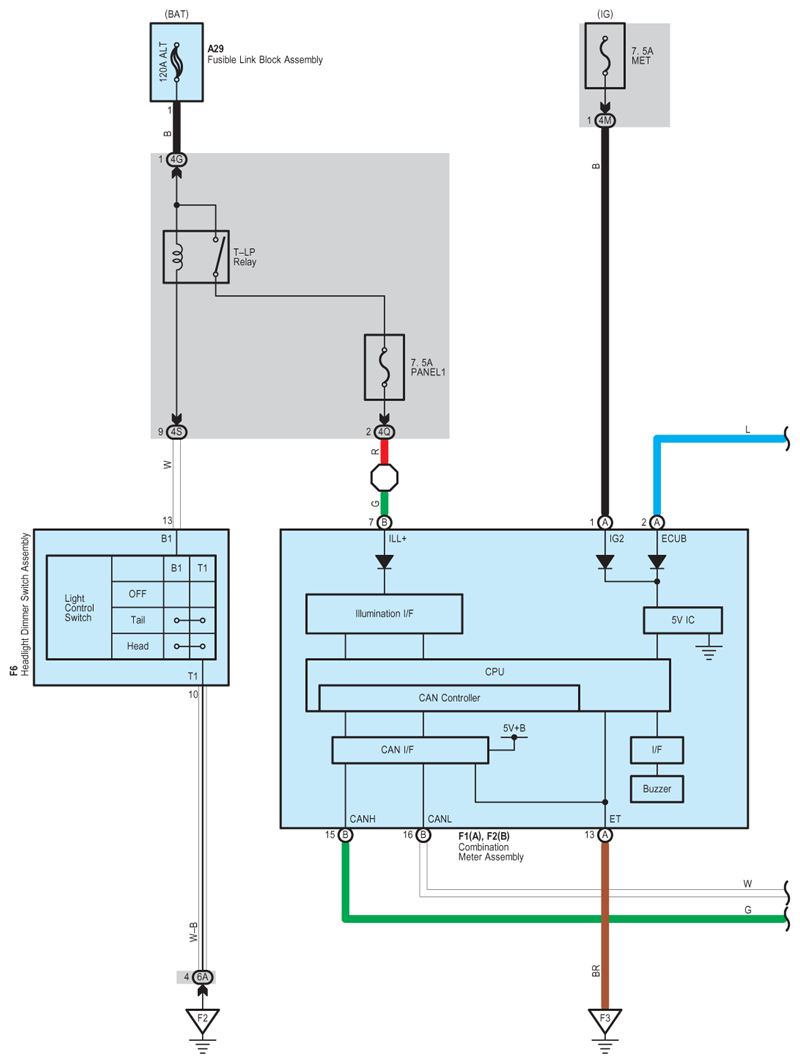

Fig 1: Key Reminder And Light Reminder - Circuit Diagram (1 Of 2)
G07596118Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

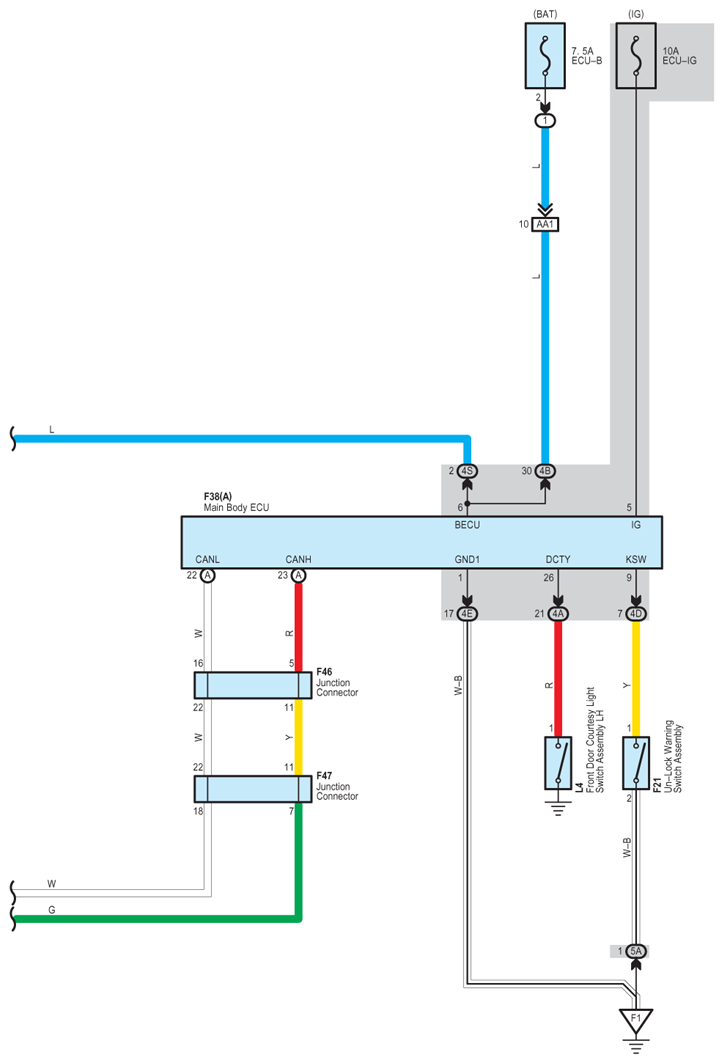

Fig 2: Key Reminder And Light Reminder - Circuit Diagram (2 Of 2)
G07596119Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
