Parts Location: Illustration

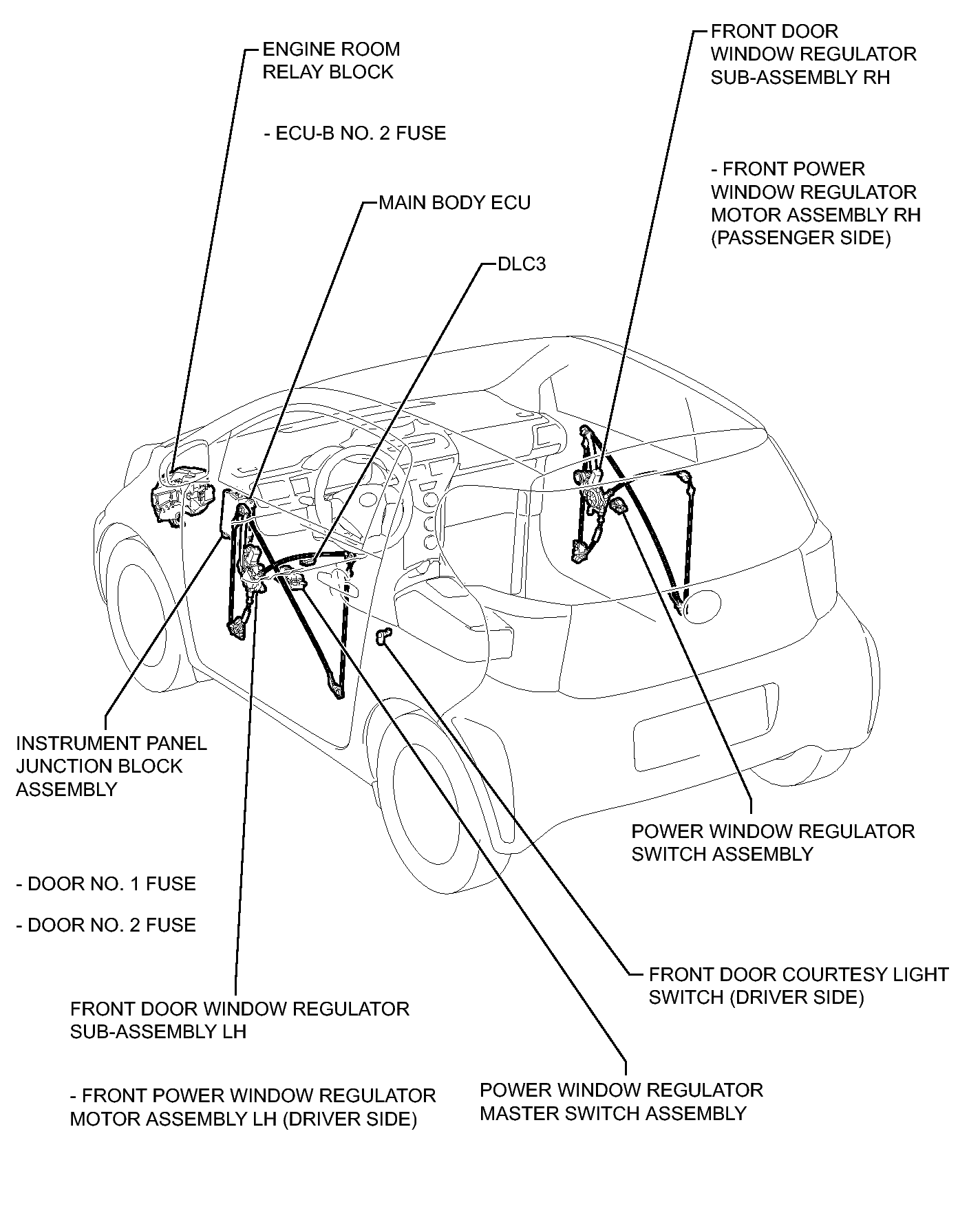

Fig 1: Identifying Power Window Control System Components Location
GTY344603Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
