Rear Speed Sensor: Components: Illustration

Fig 1: Identifying Rear Speed Sensor Replacement Components
GTY346669Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

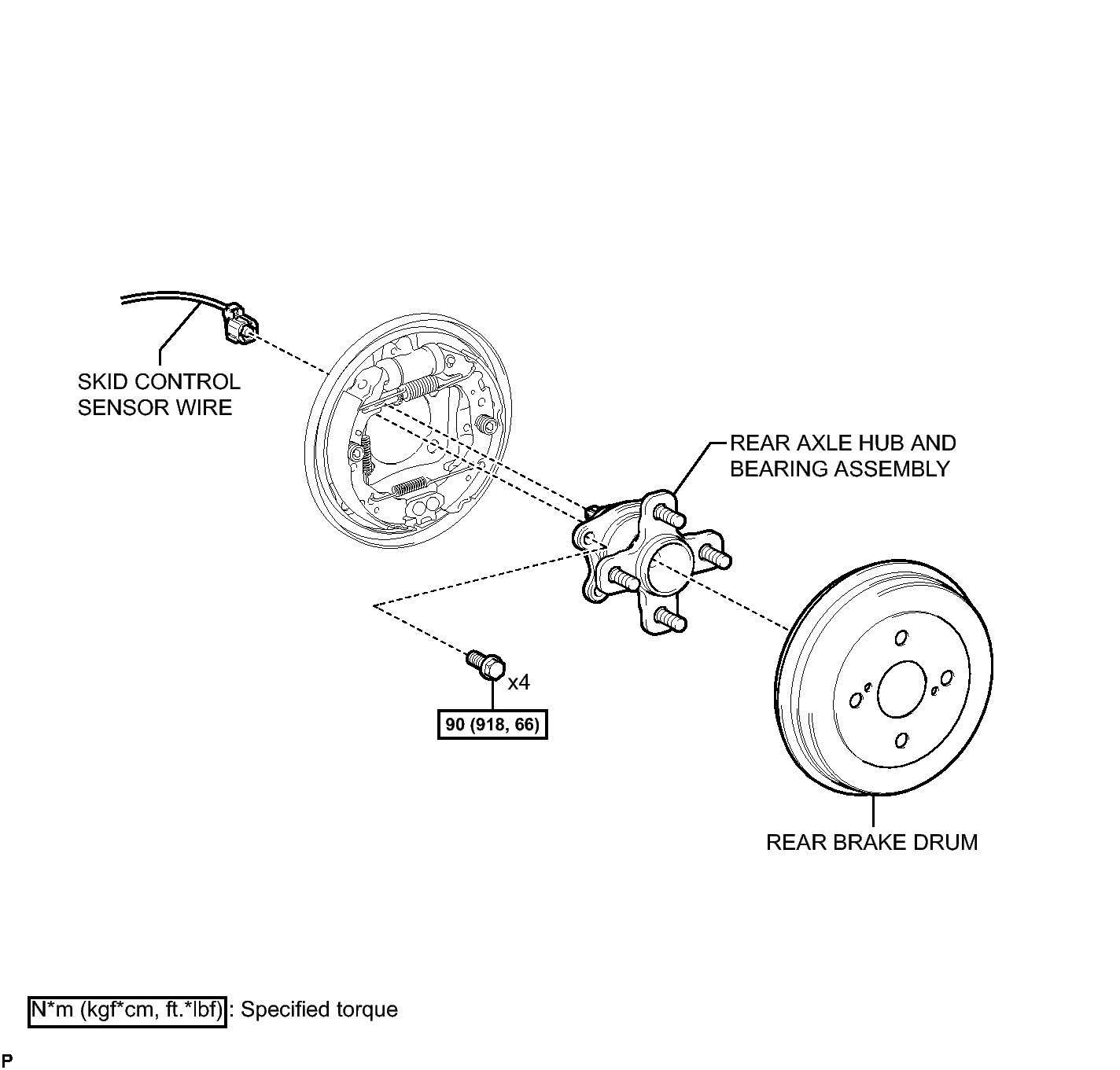

Fig 2: Identifying Rear Speed Sensor Replacement Components With Torque Specifications
GTY344694Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
