OEM System Circuits: Headlight: Notes

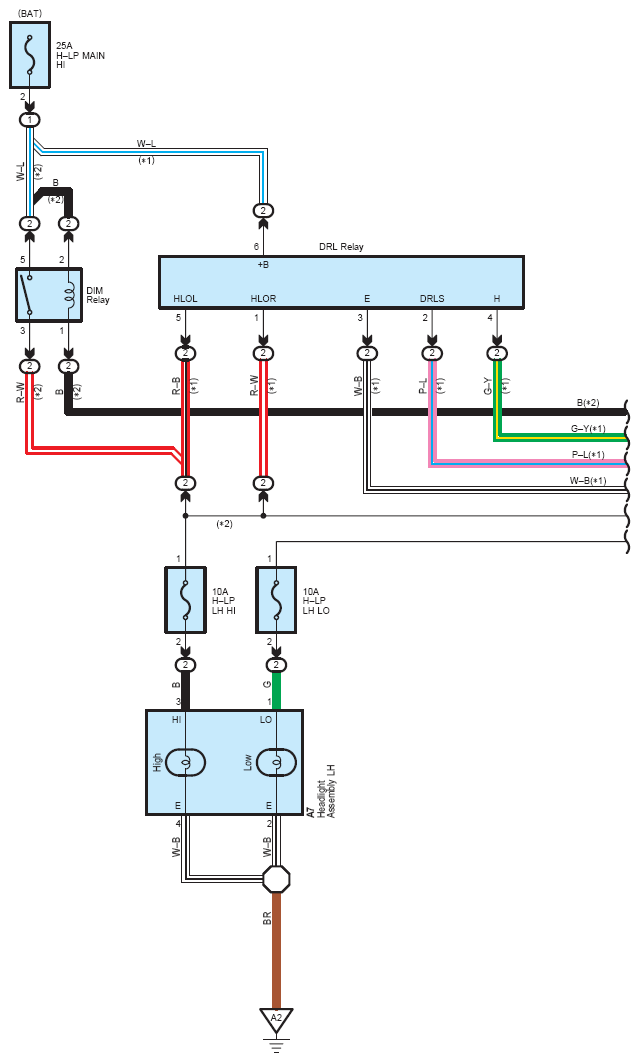

Fig 1: Headlight System Wiring Diagram (1 Of 4)
G08759801Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

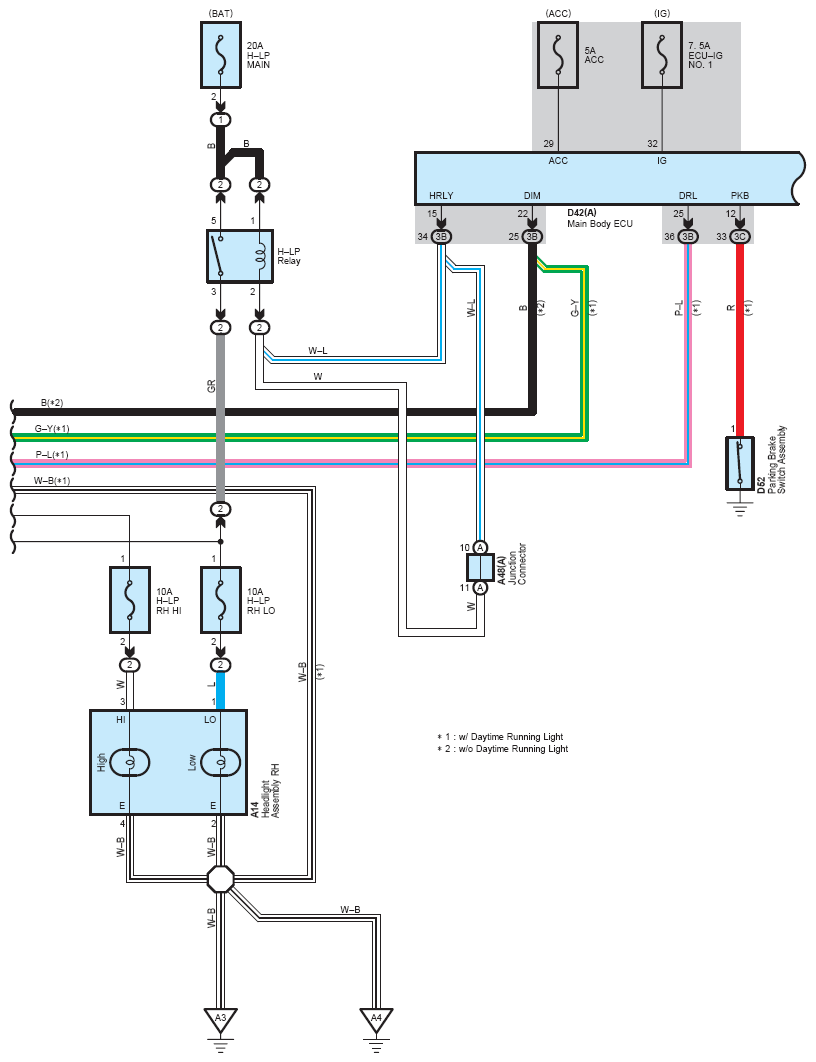

Fig 2: Headlight System Wiring Diagram (2 Of 4)
G08759802Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

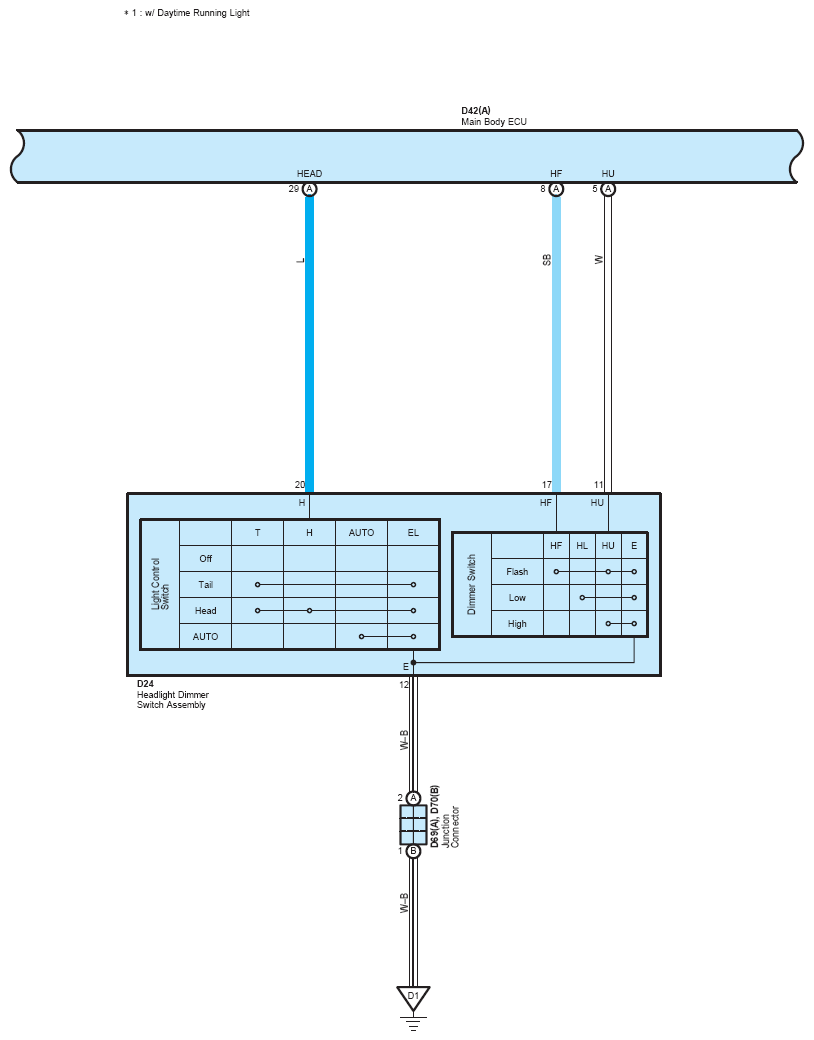

Fig 3: Headlight System Wiring Diagram (3 Of 4)
G08759803Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

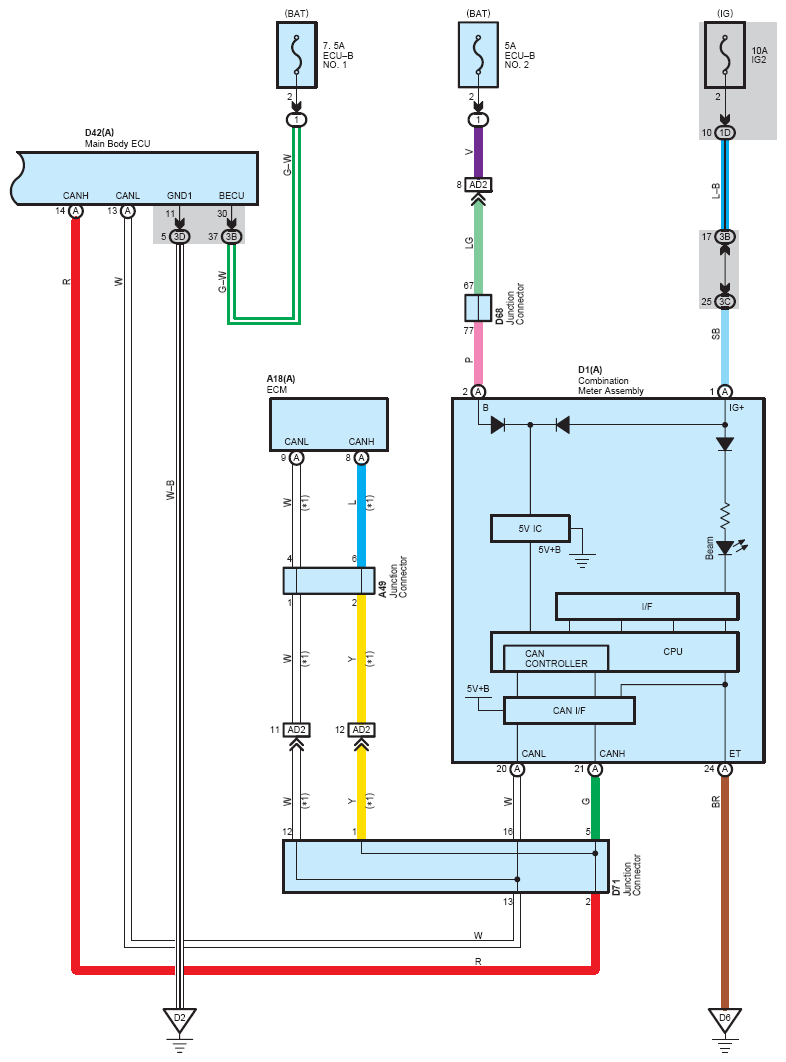

Fig 4: Headlight System Wiring Diagram (4 Of 4)
G08759804Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
