Multiplex Communication System (CAN): Notes

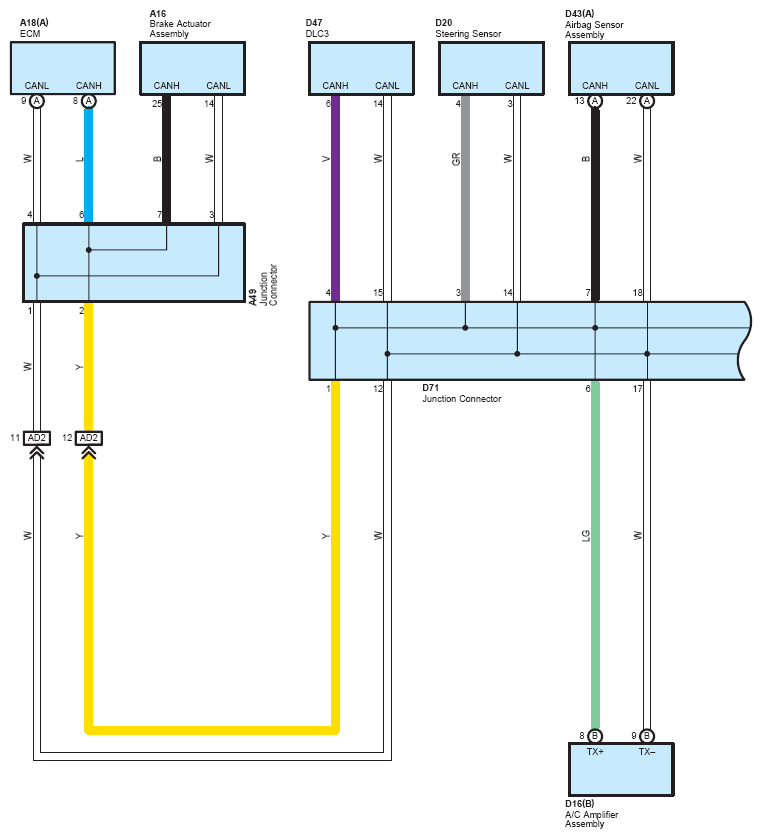

Fig 1: Multiplex CAN Communication System Wiring Diagram (1 Of 2)
G08759799Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

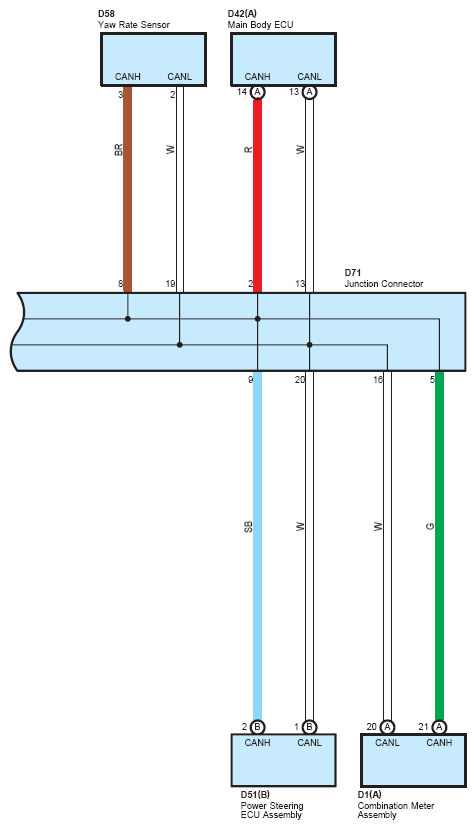

Fig 2: Multiplex CAN Communication System Wiring Diagram (2 Of 2)
G08759800Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
