OEM System Circuits: SRS: Notes

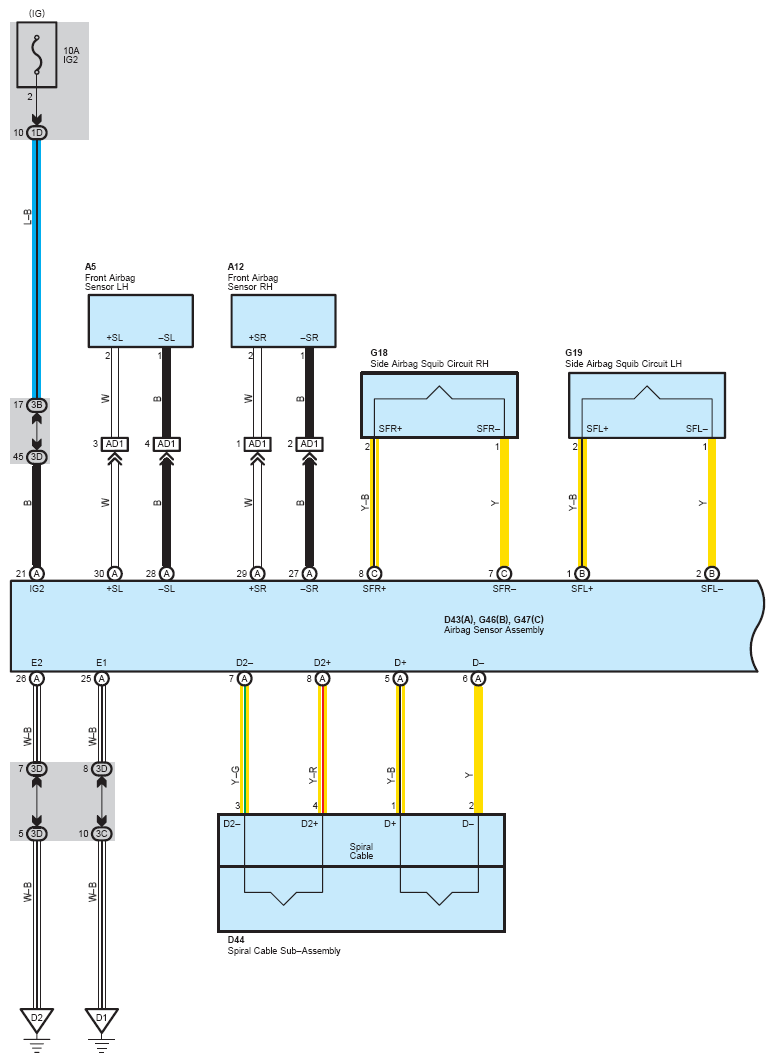

Fig 1: SRS System Wiring Diagram (1 Of 7)

G08759830

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

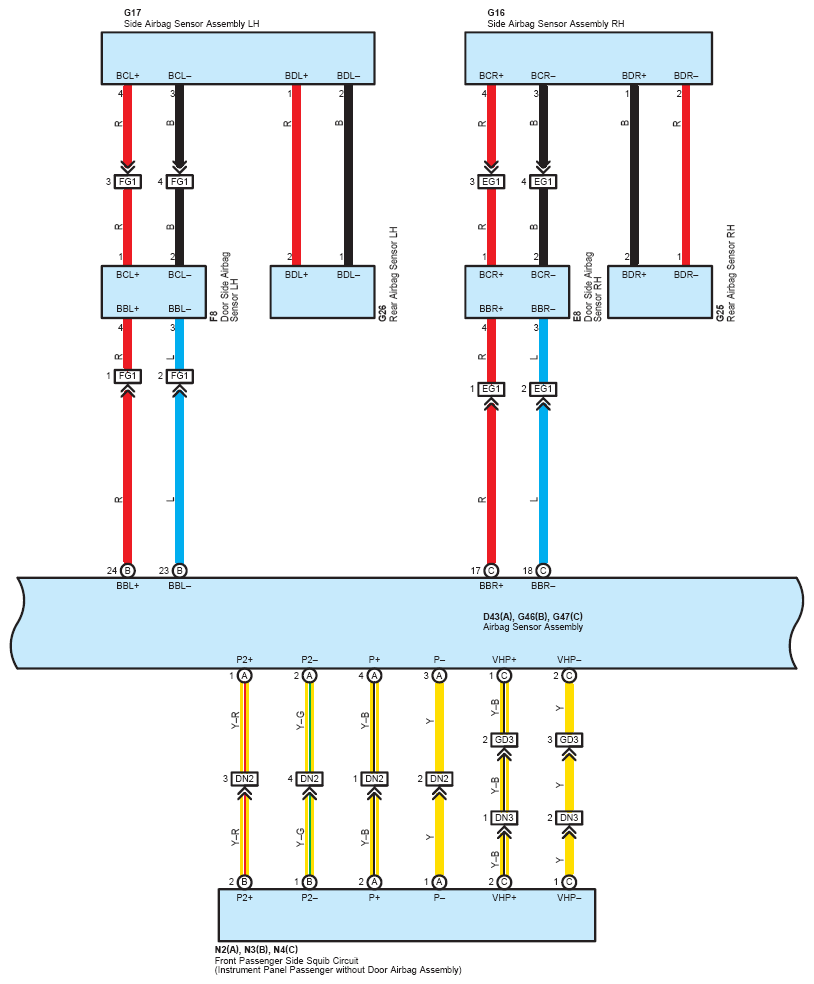

Fig 2: SRS System Wiring Diagram (2 Of 7)

G08759831

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

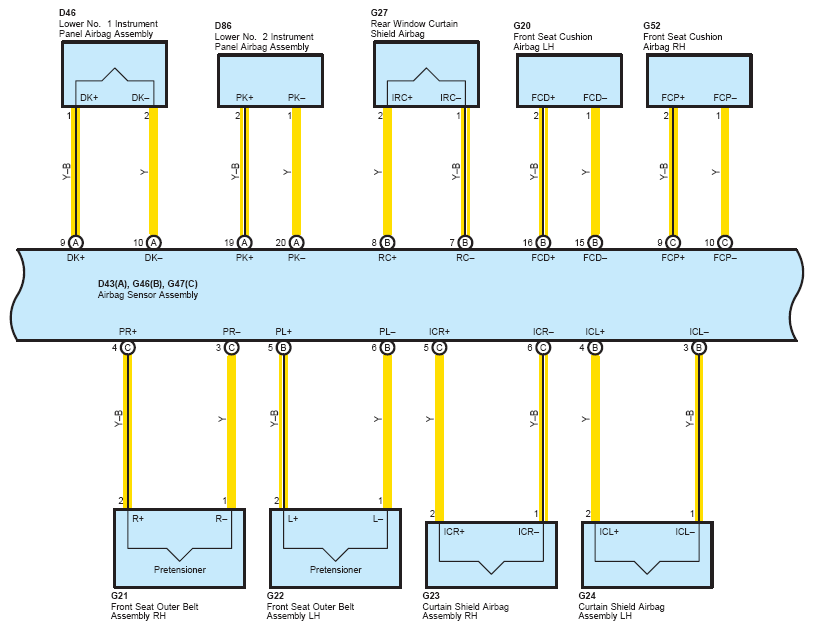

Fig 3: SRS System Wiring Diagram (3 Of 7)

G08759832

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

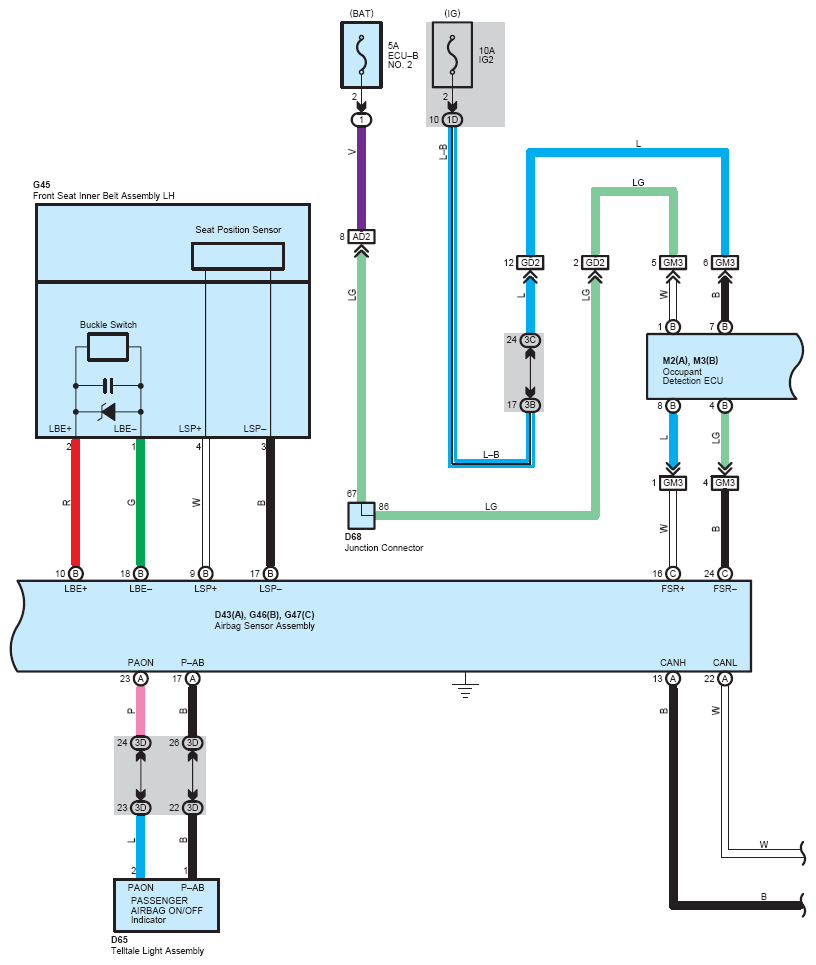

Fig 4: SRS System Wiring Diagram (4 Of 7)

G08759833

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

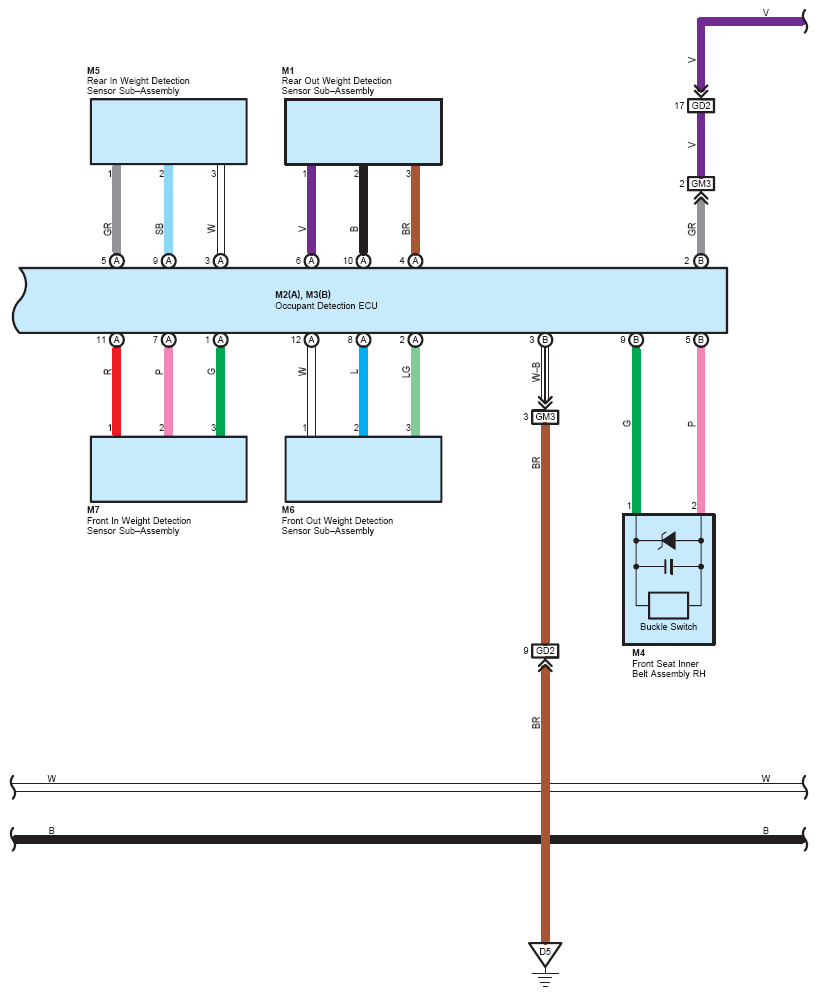

Fig 5: SRS System Wiring Diagram (5 Of 7)

G08759834

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

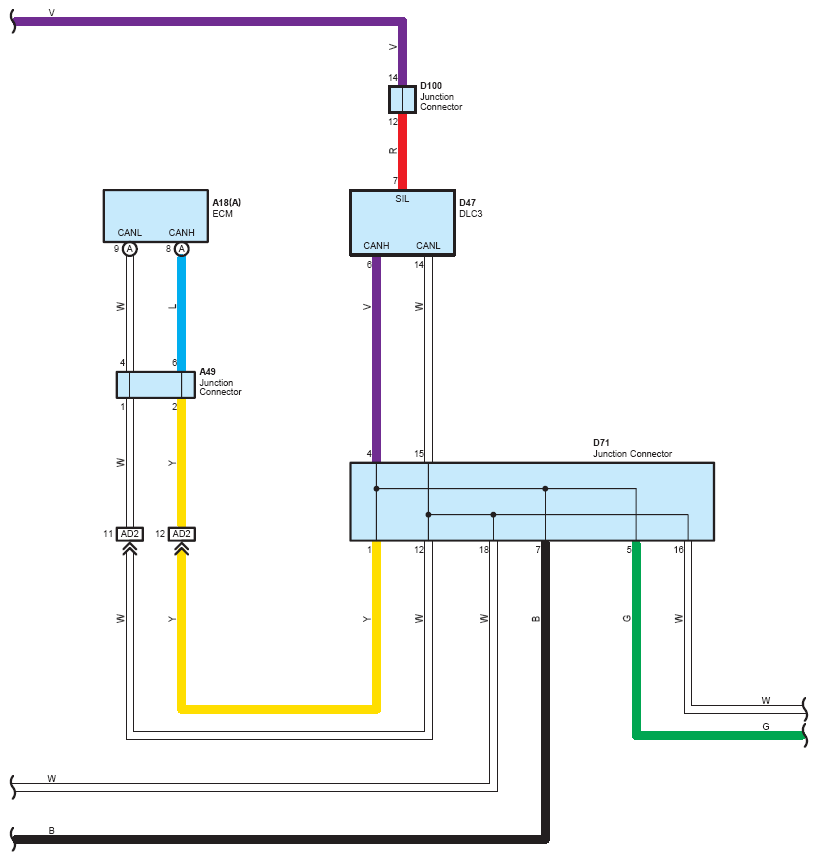

Fig 6: SRS System Wiring Diagram (6 Of 7)

G08759835

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

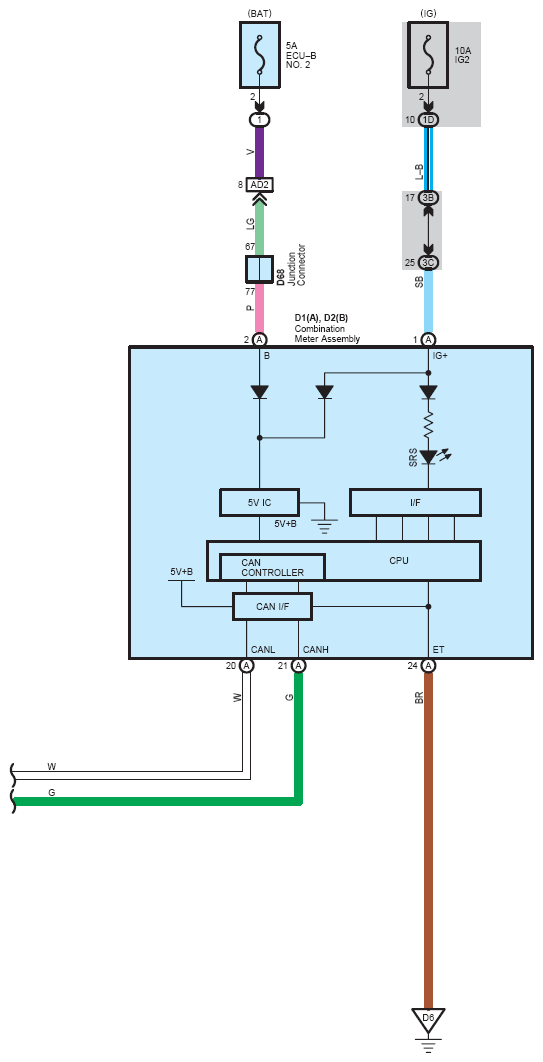

Fig 7: SRS System Wiring Diagram (7 Of 7)

G08759836

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
