Fuel Pump: Components: Illustration

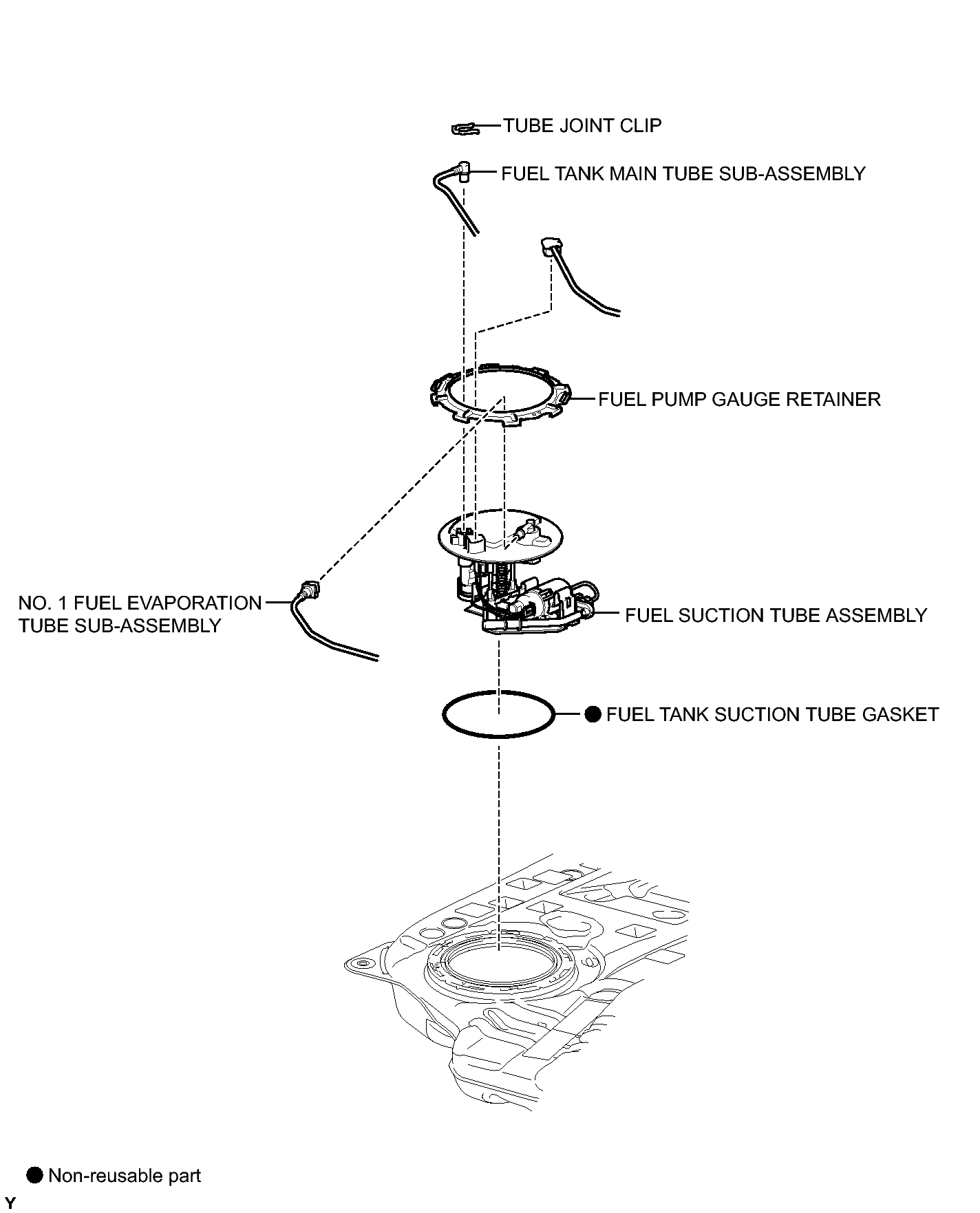

Fig 1: Identifying Fuel Pump Replacement Components (1 Of 2)
GTY344411Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

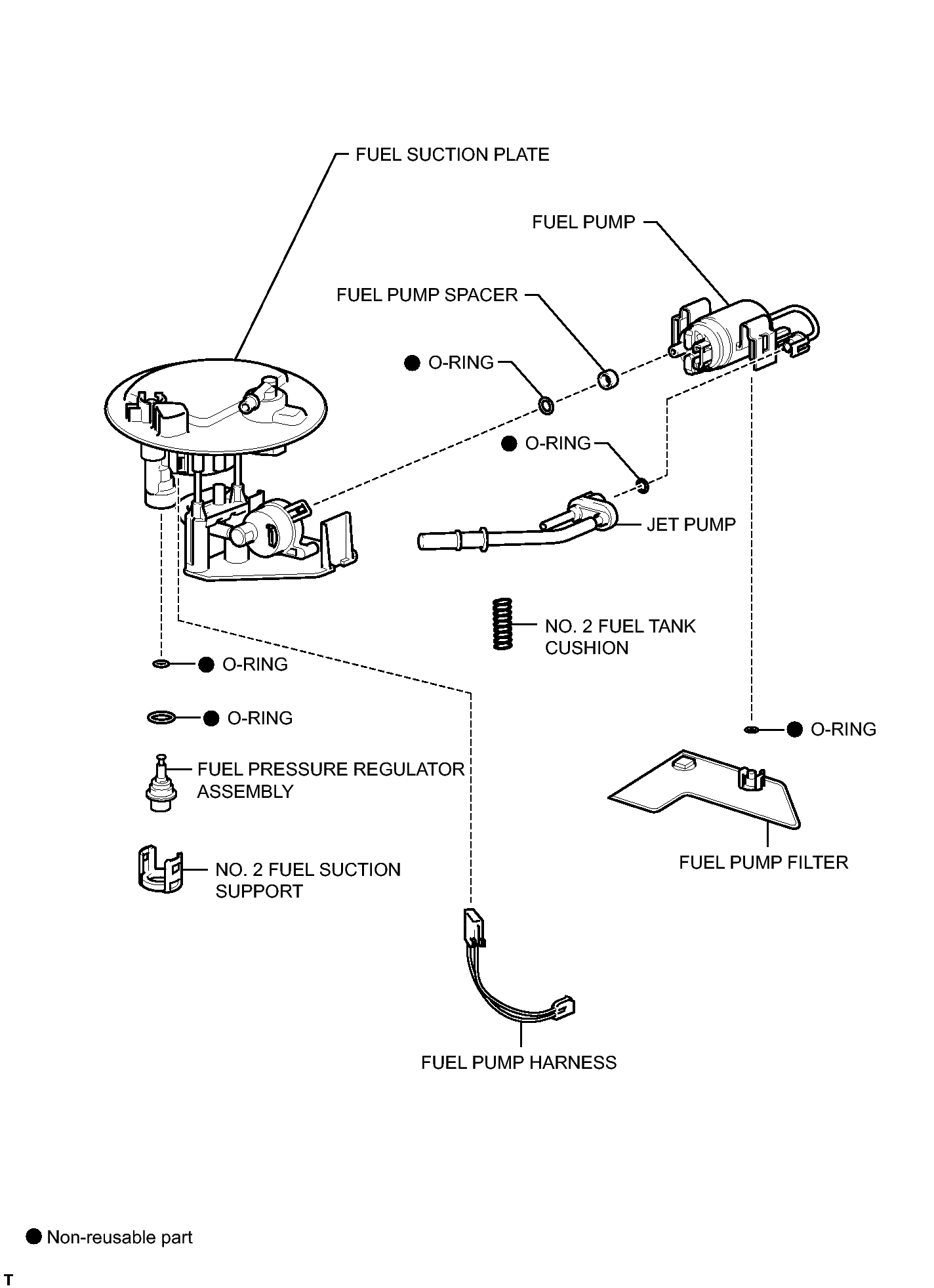

Fig 2: Identifying Fuel Pump Replacement Components (2 Of 2)
GTY346524Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
