Parts Location: Illustration

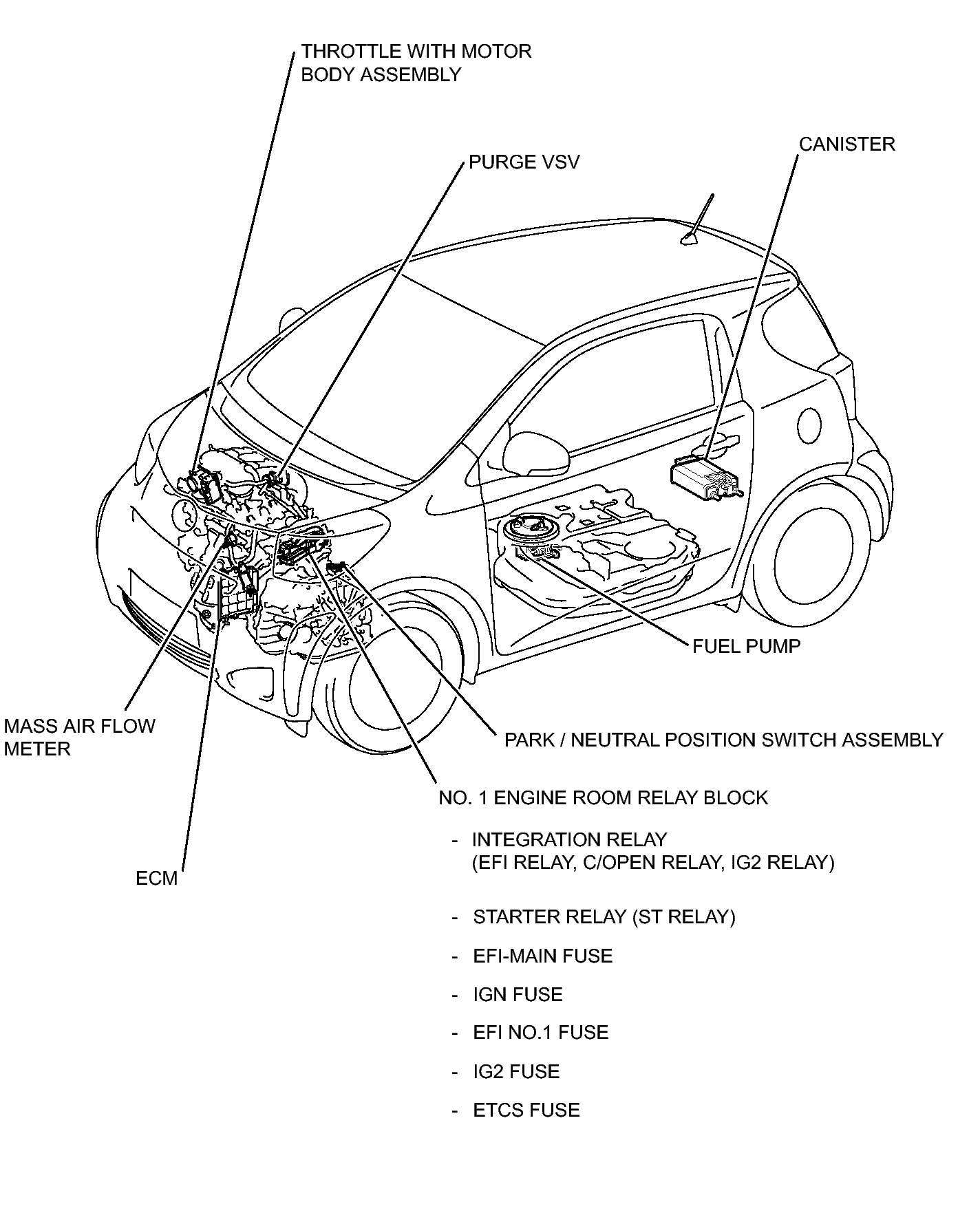

Fig 1: Identifying SFI System Components Location (1 Of 3)
GTY346764Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

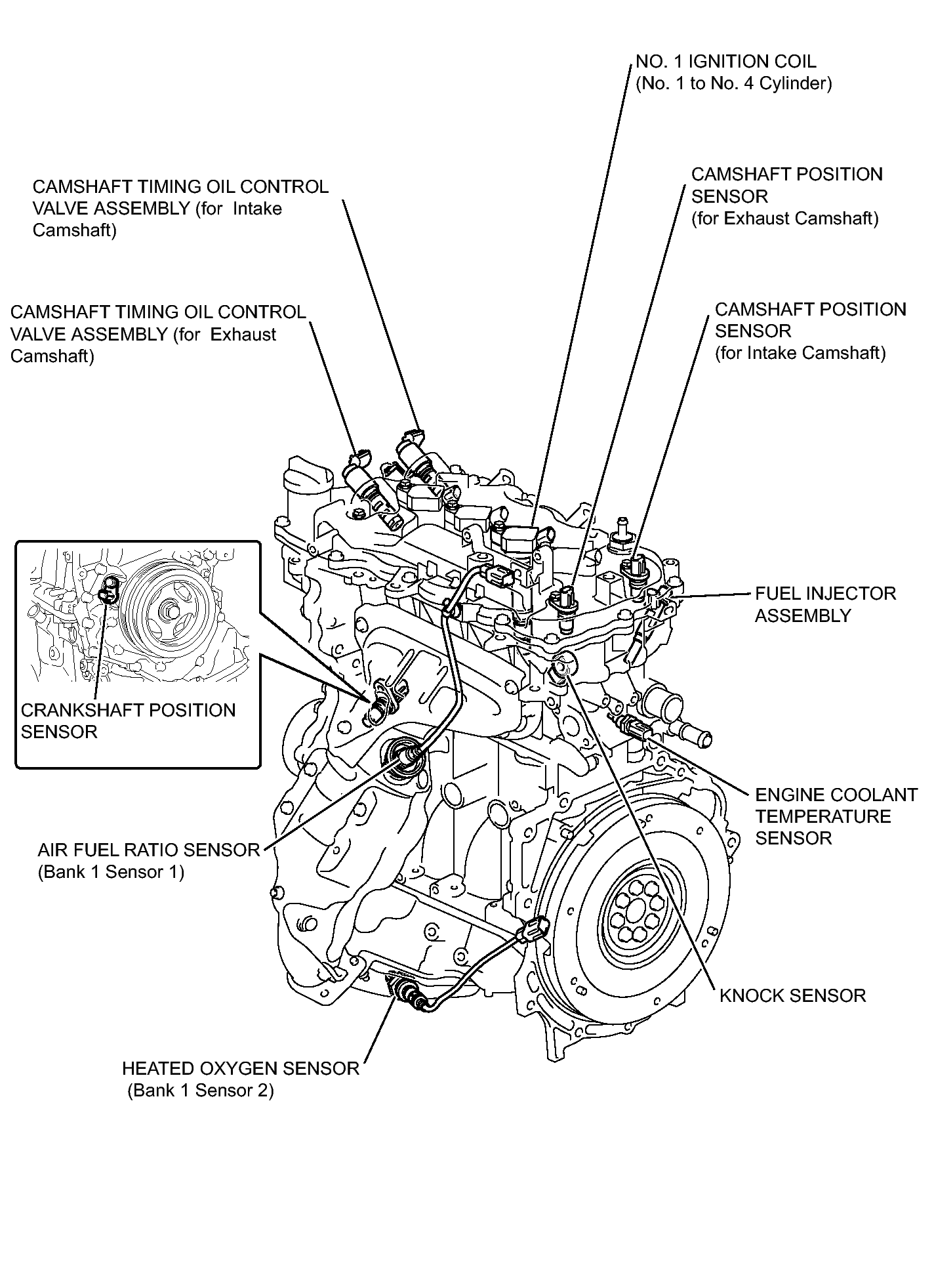

Fig 2: Identifying SFI System Components Location (2 Of 3)
GTY347152Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

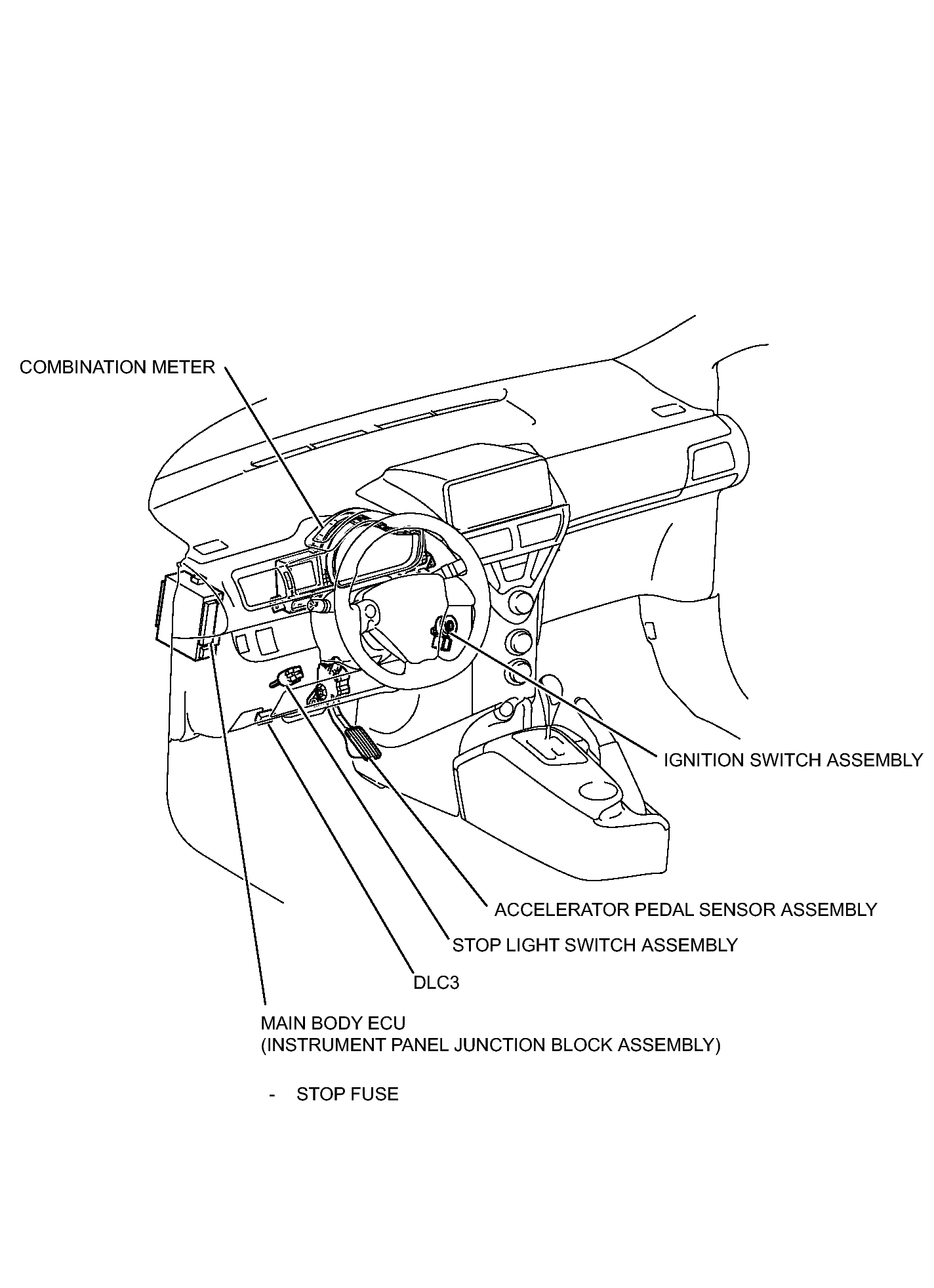

Fig 3: Identifying SFI System Components Location (3 Of 3)
GTY345932Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
