Integration Relay: Removal: Removal

REMOVE NO. 1 INTEGRATION RELAY
1. Remove the fusible link cover.
2. Disconnect the 2 connectors from the No. 1 integration relay.

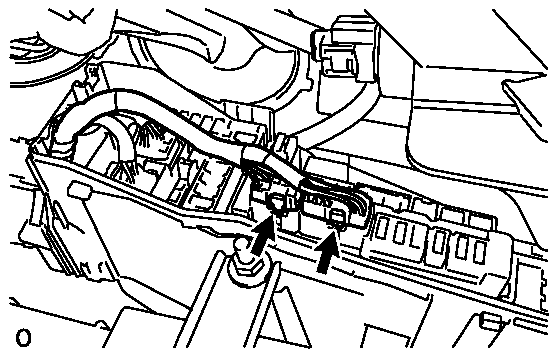

  Fig 1: Identifying Integration Relay Connectors
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Using a screwdriver with its tip wrapped in protective tape, disengage the 2 claws.

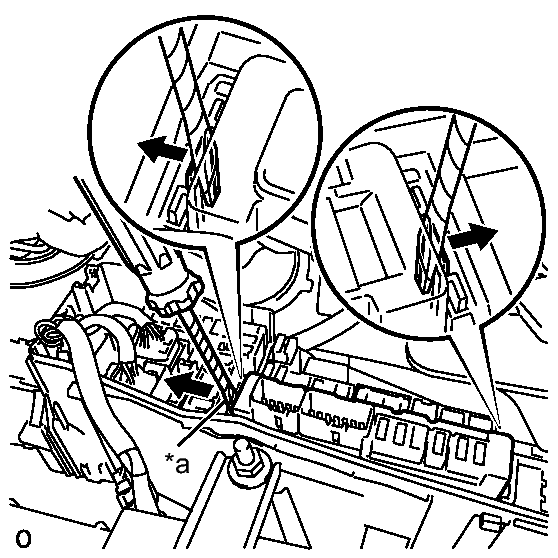

  Fig 2: Identifying Integration Relay Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  TEXT IN ILLUSTRATION

  *a Protective tape
4. Disconnect the 4 connectors and remove the No. 1 integration relay.

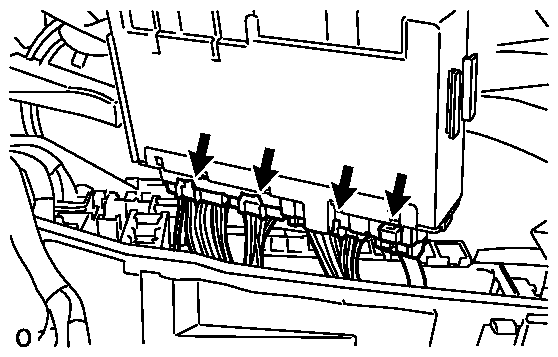

  Fig 3: Identifying Integration Relay Connectors
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  NOTE:
  If a component has been dropped or subjected to a strong impact, replace it.
