Speed Sensor: Components: Illustration

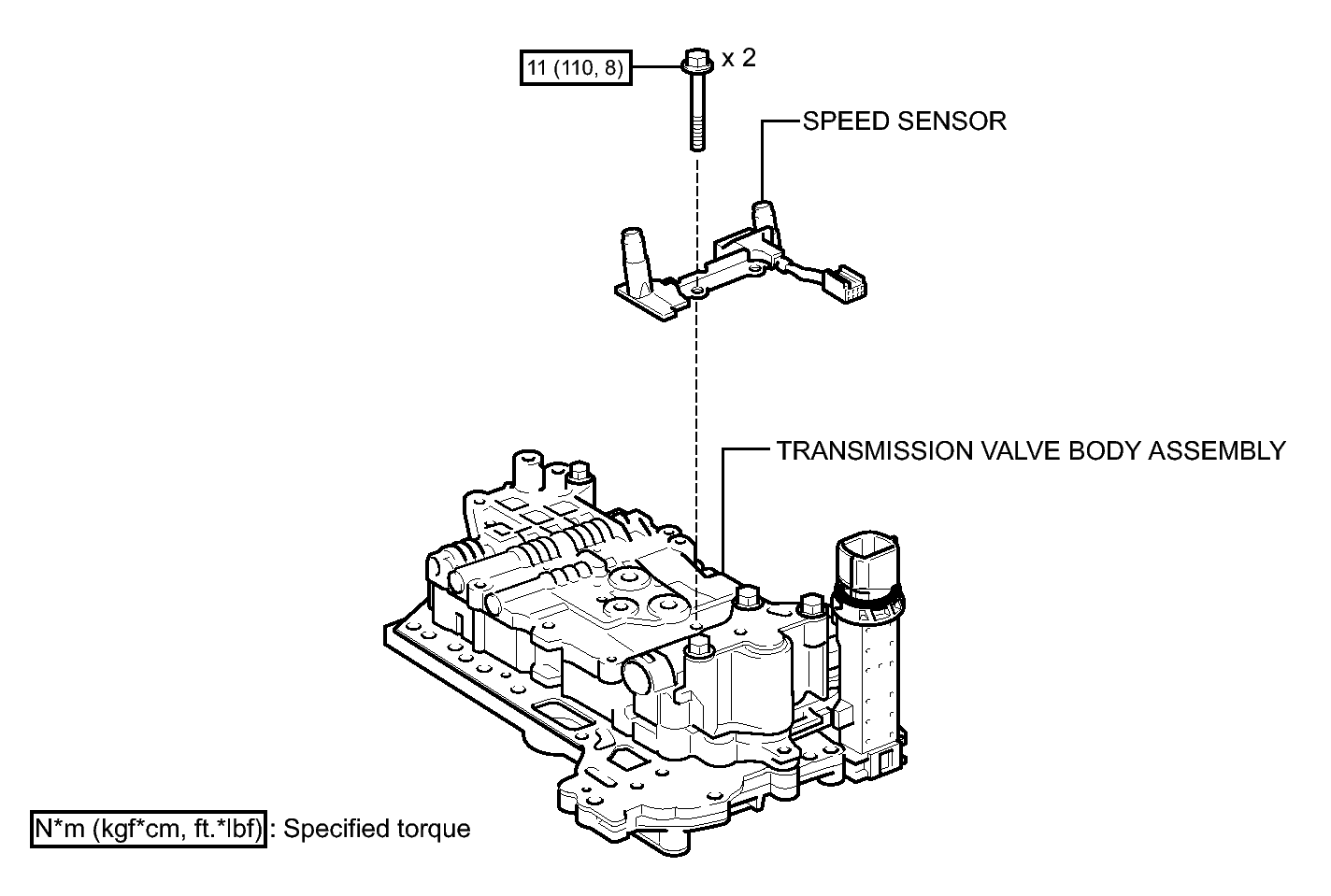

Fig 1: Speed Sensor Replacement Component Parts W/ Torque Specifications
GTY313706Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
