Yaw Rate And Acceleration Sensor: Components: Illustration

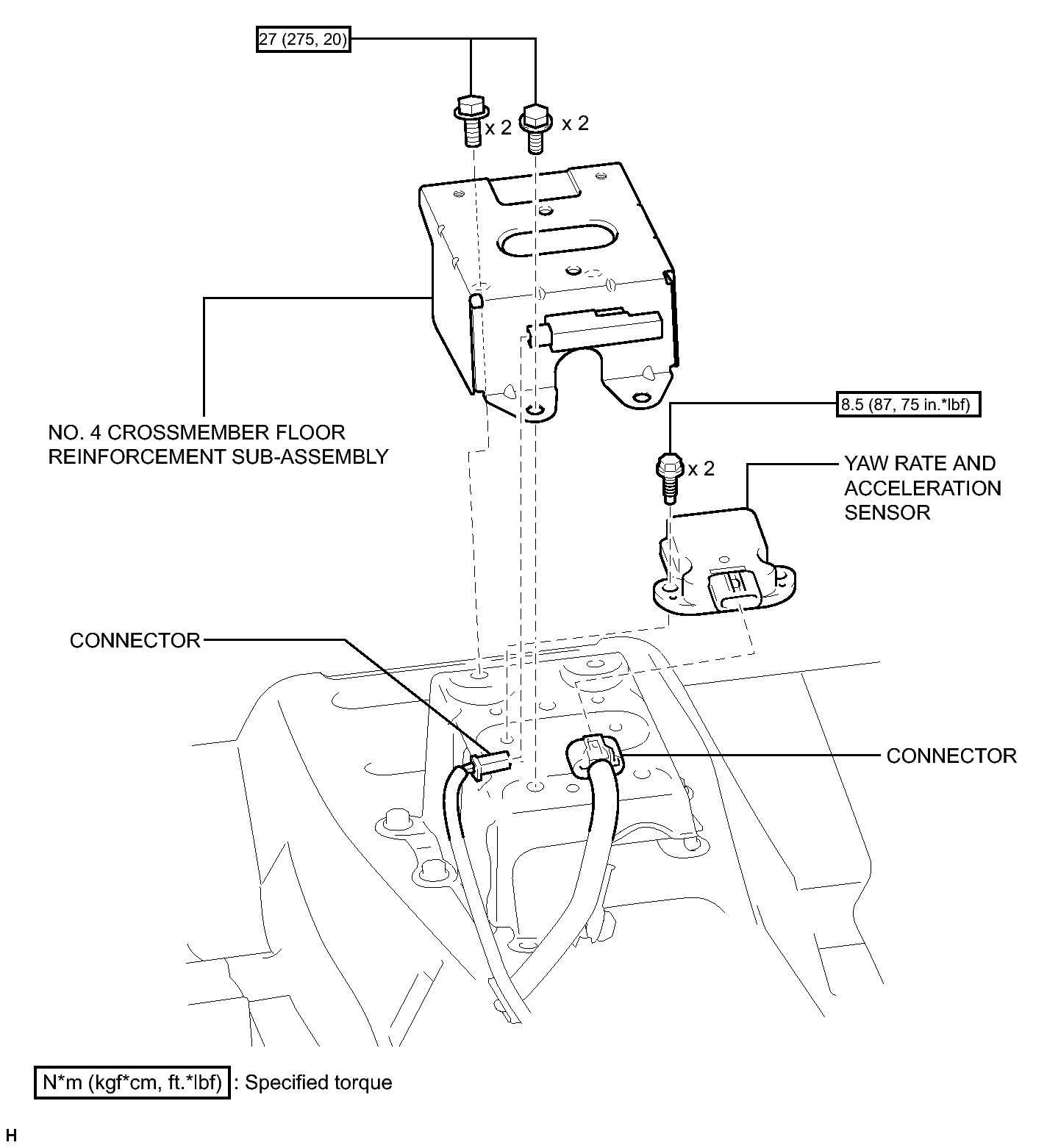

Fig 1: Yaw Rate And Acceleration Sensor Replacement Replacement Components With Torque Specifications
GTY313525Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
