Audio System: Notes

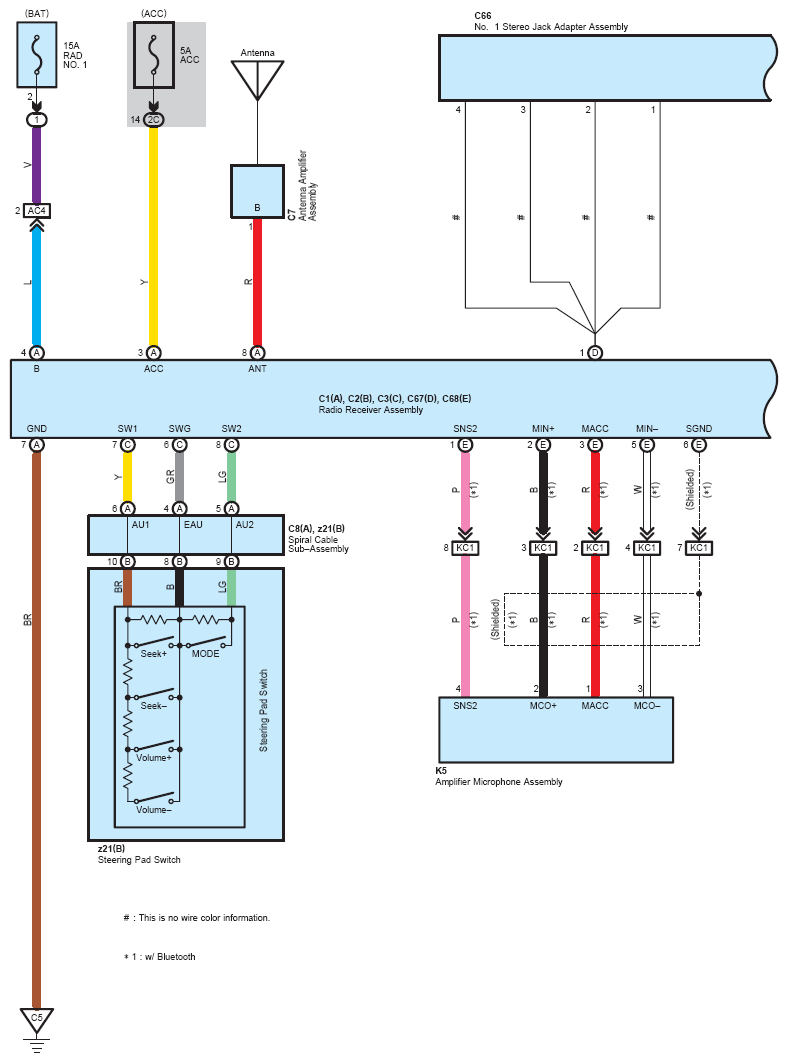

Fig 1: Audio System Wiring Diagram (1 Of 4)
G08760309Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

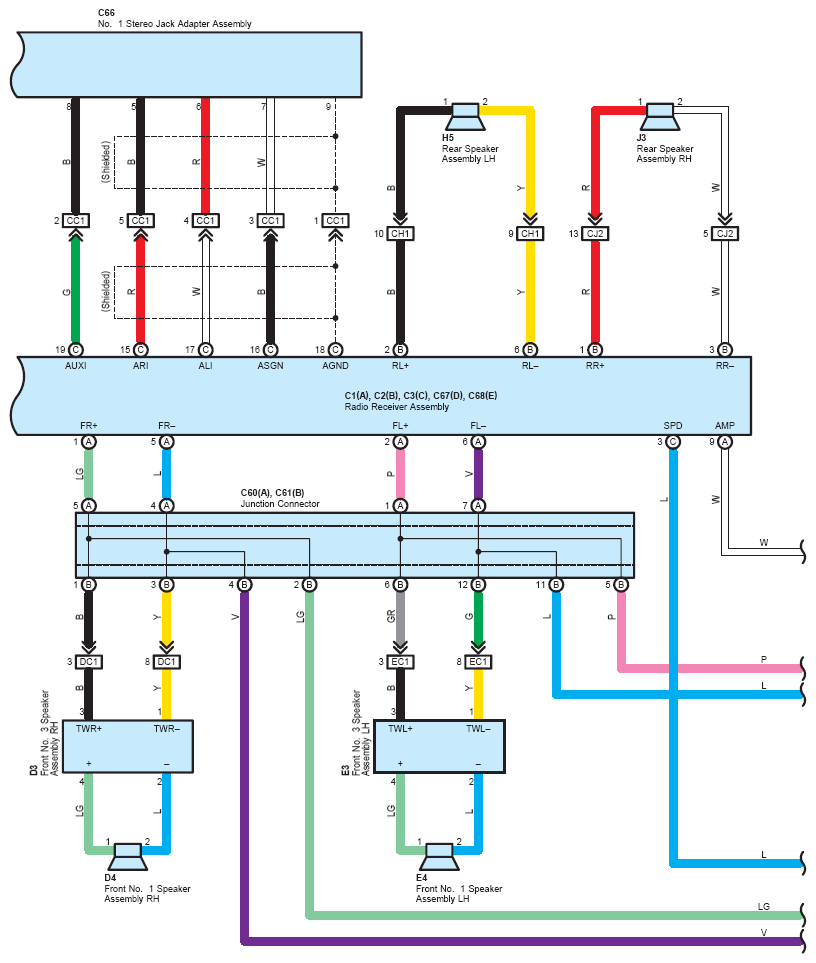

Fig 2: Audio System Wiring Diagram (2 Of 4)
G08760310Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

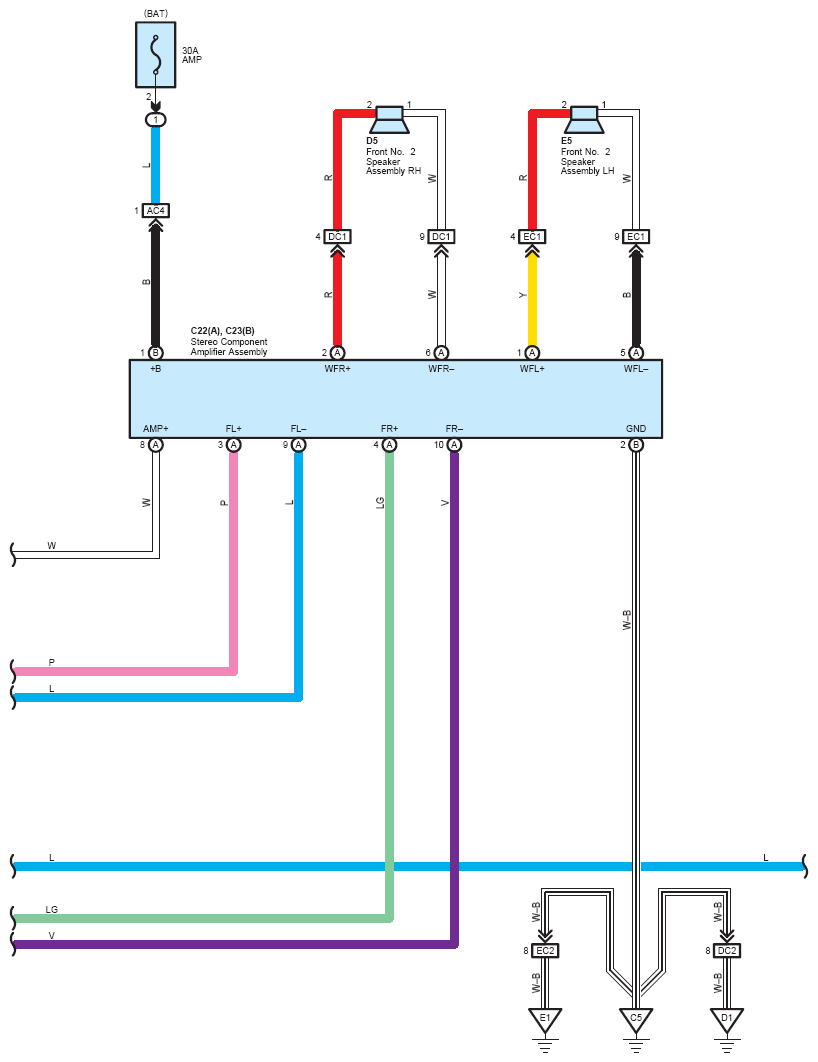

Fig 3: Audio System Wiring Diagram (3 Of 4)
G08760311Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

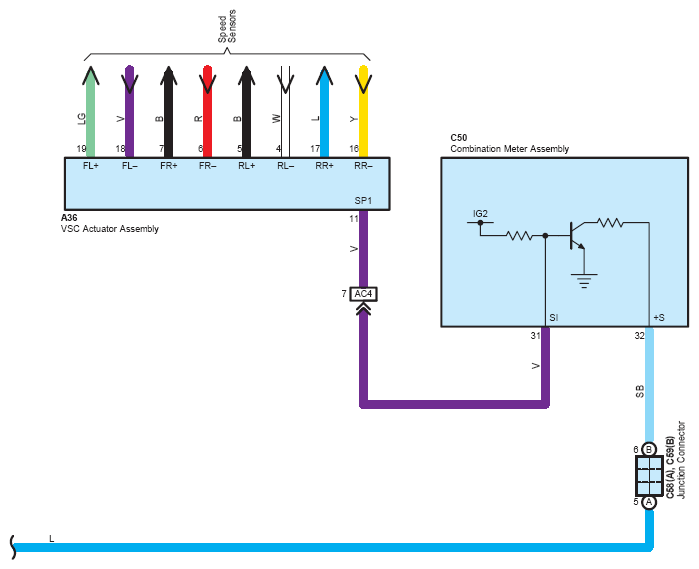

Fig 4: Audio System Wiring Diagram (4 Of 4)
G08760312Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
