Back Door Opener: Notes

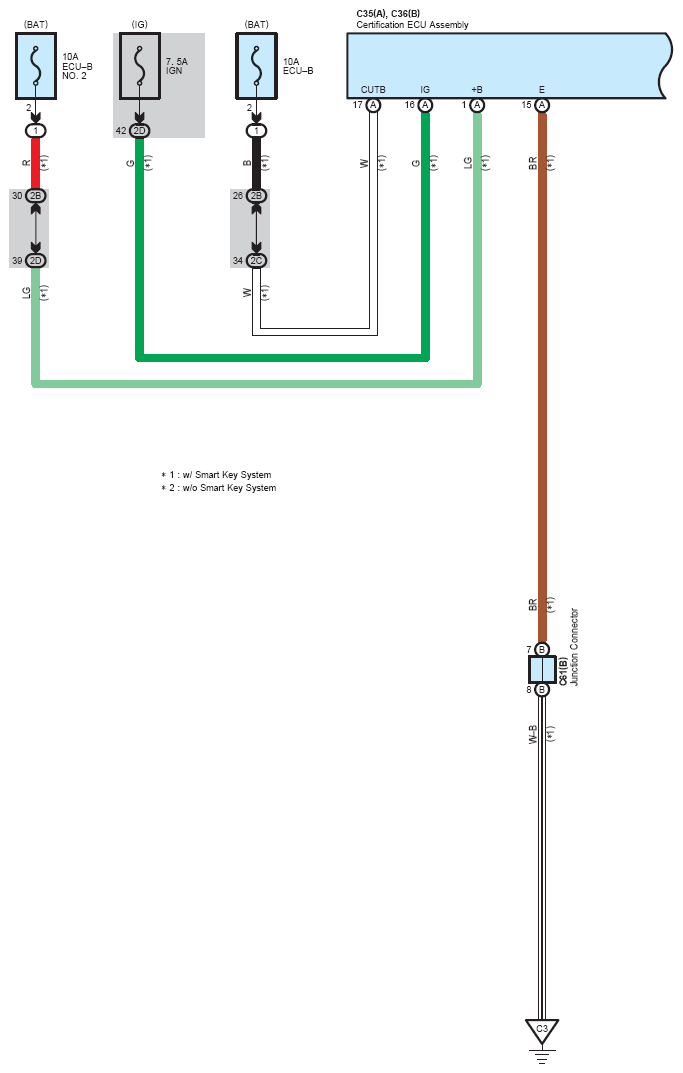

Fig 1: Back Door Opener System Wiring Diagram (1 Of 5)
G08760274Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

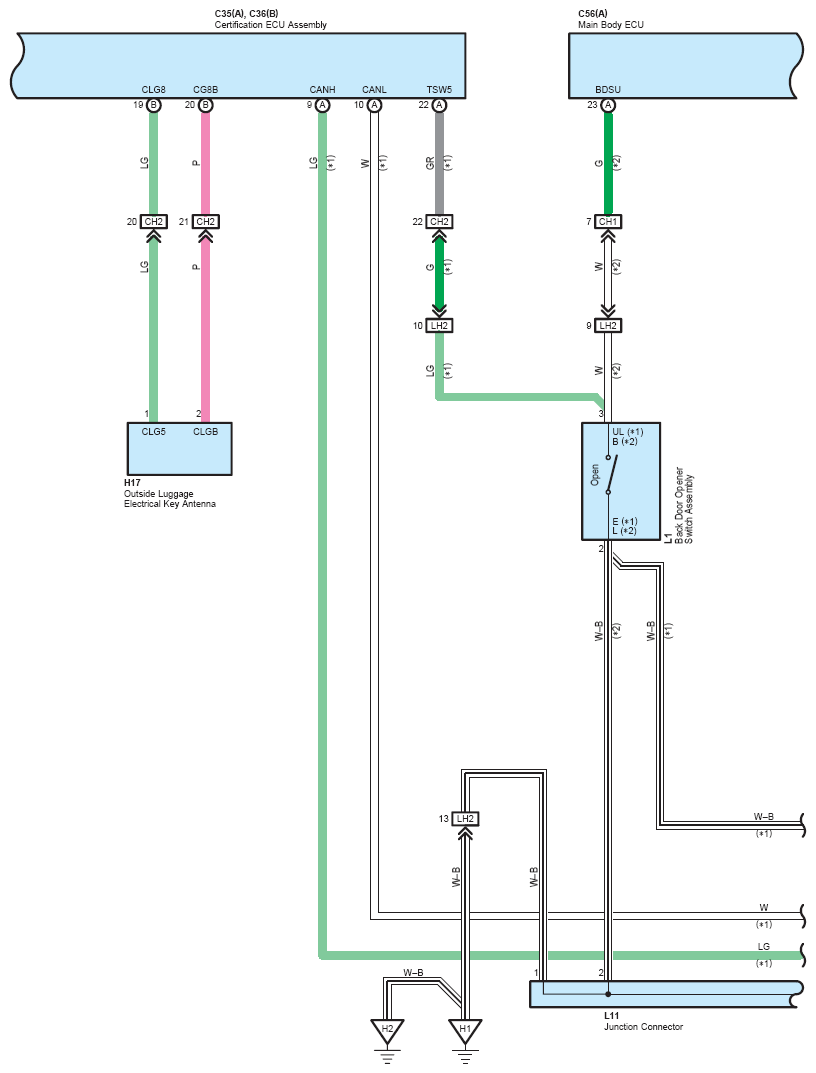

Fig 2: Back Door Opener System Wiring Diagram (2 Of 5)
G08760275Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

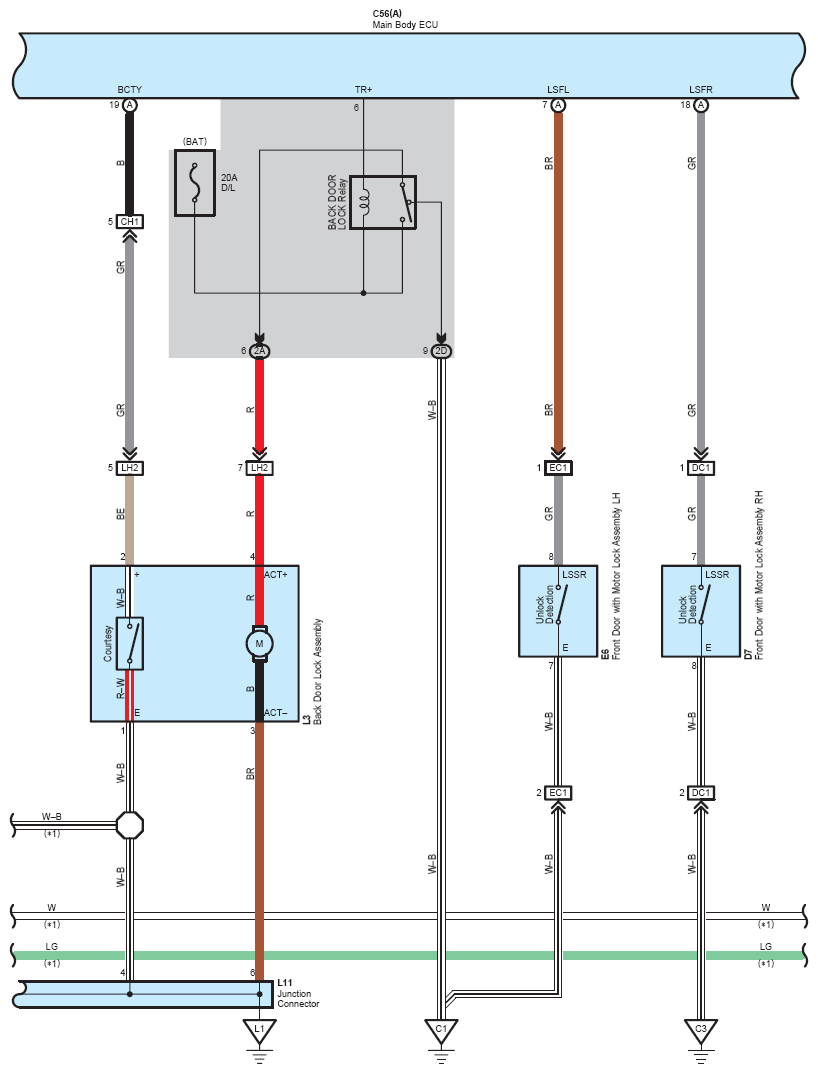

Fig 3: Back Door Opener System Wiring Diagram (3 Of 5)
G08760276Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

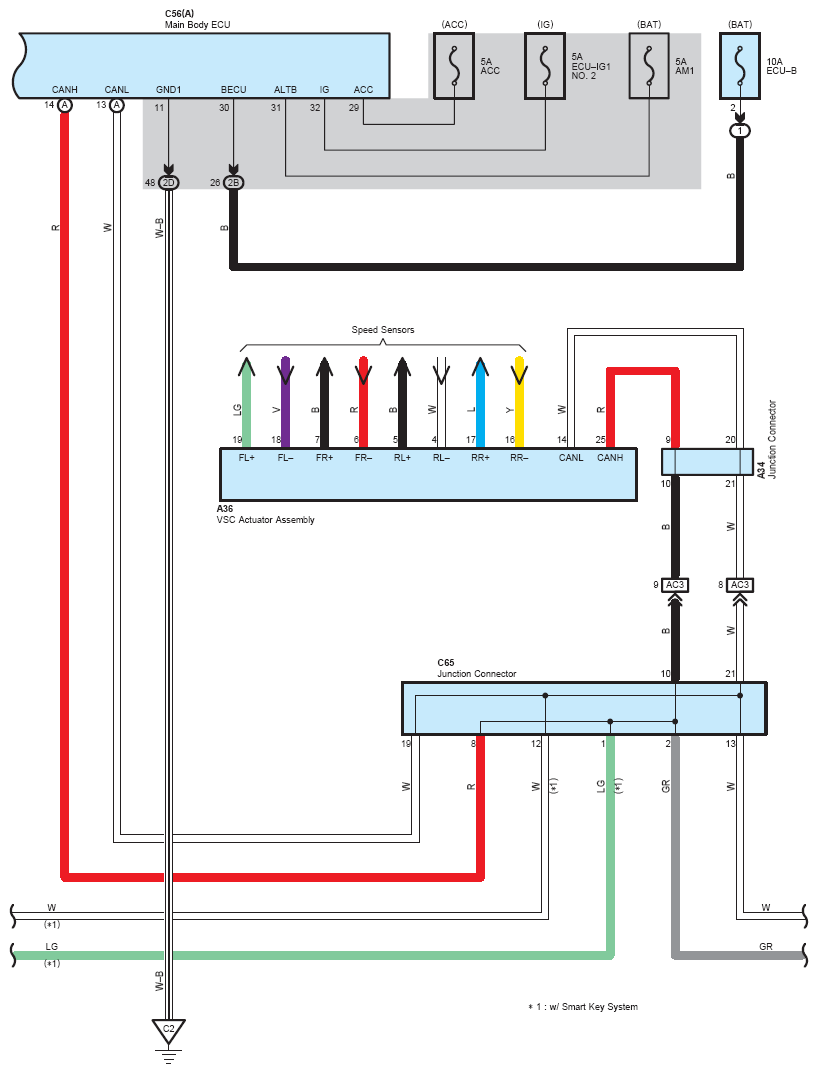

Fig 4: Back Door Opener System Wiring Diagram (4 Of 5)
G08760277Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

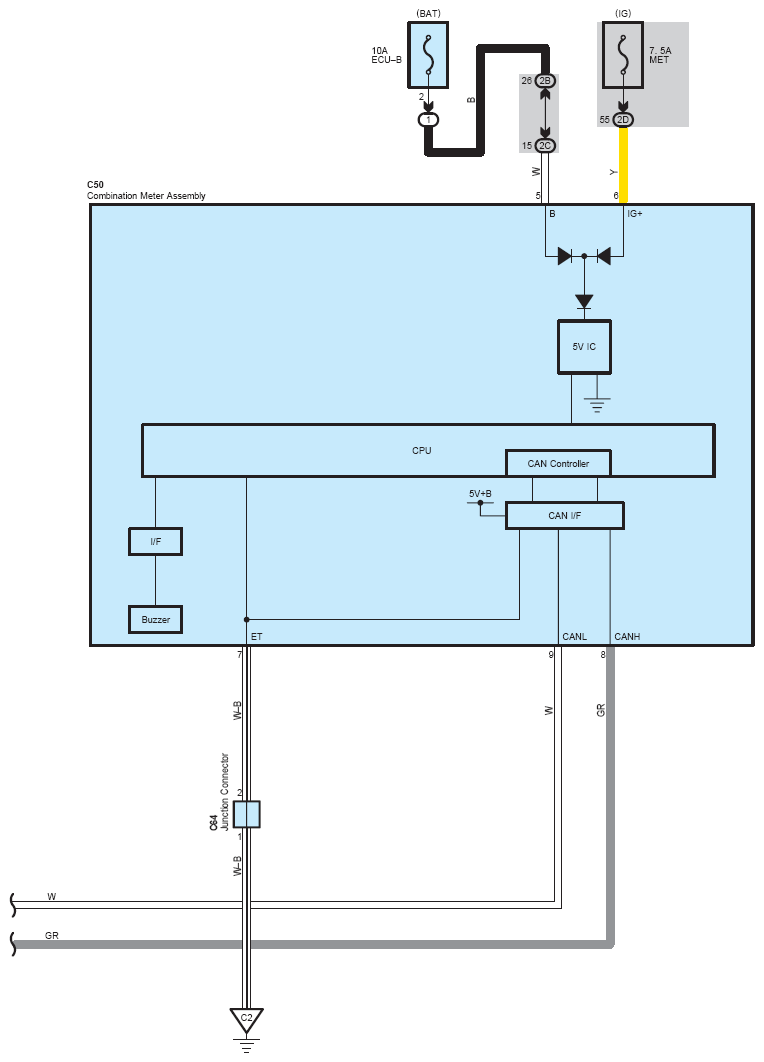

Fig 5: Back Door Opener System Wiring Diagram (5 Of 5)
G08760278Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
